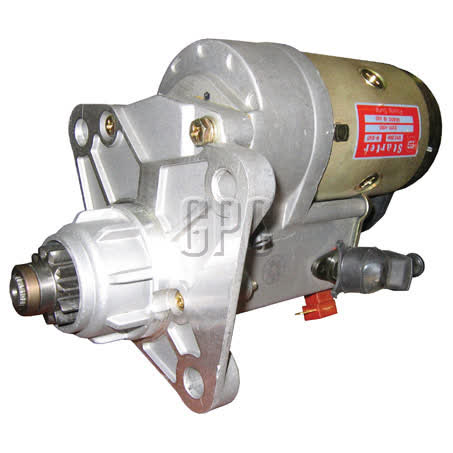

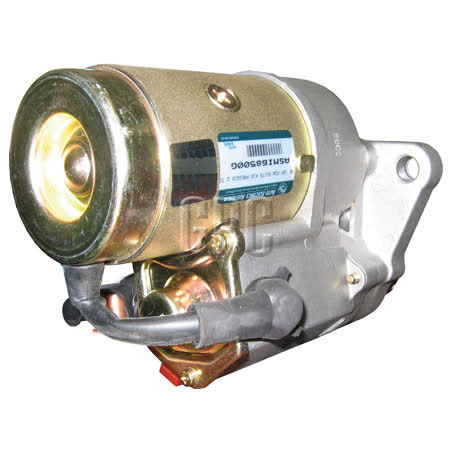

Auto Electrics Aust Starter Motor 12V 11 Tooth CCW Mitsubishi Style ASMI68500G

Auto Electrics Aust starter motor, part number ASMI68500G, is a new 12V unit with 11 teeth and CCW rotation. It is described as Mitsubishi style and suits Mitsubishi applications, with a 3 hole starter mount and a flange diameter of 64mm.

This starter motor is rated at 2.2kW and measures 249mm overall length, with mount centres of 141mm, 115mm and 89mm, plus 13mm mount hole diameter. The pinion at rest measures 45mm and the pinion diameter is 35mm.

The unit is listed as dry clutch type, weighs 6.24kg, and carries a one year warranty. The OEM number provided is 0K60G-18-400, which is a useful reference when checking interchange and application details.

Key Features

• 12V starter motor
• 11 tooth pinion
• CCW rotation
• 2.2kW power rating
• New unit
• 3 hole starter mount

Specifications

• Part number: ASMI68500G
• OEM number: 0K60G-18-400
• Voltage: 12V
• Number of teeth: 11
• Rotation: CCW
• Power rating: 2.2kW
• Starter mount type: 3 hole
• Flange diameter: 64mm

Fitment

• KIA K2700
• KIA K2700 2002
• KIA K2700 2003
• KIA K2700 2004
• KIA K2700 2005
• KIA K2700 2006
• KIA K2700 2007
• KIA K2700 2008

Application and Buying Notes

Before ordering, compare the part number ASMI68500G and the OEM number 0K60G-18-400 against the unit being replaced. The key physical checks here are 12V, 11 teeth, CCW rotation, 3 hole mount type, 64mm flange diameter, and mount centres of 141mm, 115mm and 89mm.

Starter fitment can turn on small differences in nose housing, mounting pattern and pinion position. With this unit, the pinion at rest is 45mm and the pinion diameter is 35mm, so it is sensible to match those dimensions to the removed starter where possible.

The listed KIA applications include K2700 and PREGIO model ranges, but the safest approach is to verify the exact vehicle, year and transmission details against the existing starter and the vehicle application. A Mitsubishi style starter with an OEM cross reference still needs the mounting and electrical layout to match the vehicle.

If you are replacing a starter that has failed, check for the same overall length of 249mm, the same mount hole diameter of 13mm, and the same rotation direction before fitting. These details can save time and help avoid receiving the wrong part.

As this is a new 2.2kW starter motor weighing 6.24kg, it is designed as a direct replacement style unit rather than a universal part. Use the supplied measurements and identifiers together, not just one specification on its own, when confirming suitability.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ASMI68500G helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 141mm, Mount Centres C 115mm, Number of Teeth 11, Pinion at Rest 45mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, Note For Manual use ASMI68400 (Check flange Diameter).

Additional published details for cross-checking include Starter Mount Type 3 Hole, OEM Number 0K60G-18-400, Product Group 1 ROTATING ELECTRICAL, Part No. ASMI68500G, Brand AUTO ELECTRICS AUST, Description Starter Motor 12V 11Th CCW Mitsubishi Style, Flange Diameter 64mm, Mount Centres B 89mm, Mount Hole Diameter 13, Overall Length 249mm.

Starter Motor 12V 11Th CCW Mitsubishi Style. Part number ASMI68500G should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number ASMI68500G, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using the part number ASMI68500G, OEM number 0K60G-18-400, and the full application details for your vehicle before ordering. Where the note refers to manual use ASMI68400, check flange diameter carefully.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 11 teeth. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

What rotation direction does it use?

The rotation is CCW. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is ASMI68500G. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new unit. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

Which KIA applications are listed?

The listed fitment includes KIA K2700 and KIA PREGIO model ranges, including K2700 2002 through 2008 and PREGIO 2002 through 2004. For this listing, part number ASMI68500G is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.
