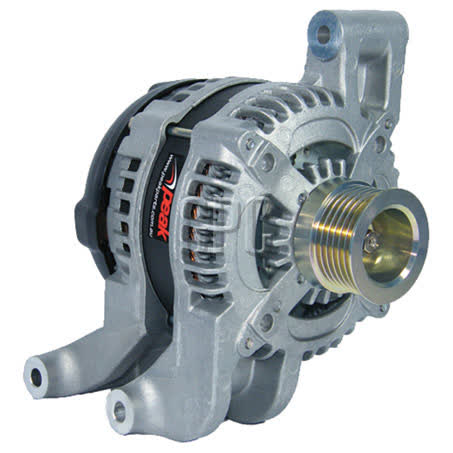

Auto Electrics Aust Alternator 12V 150A Denso Style ALT195875

The Auto Electrics Aust ALT195875 is a 12V alternator rated at 150A, built in a Denso style with an internal regulator and a pad mount arrangement. It is supplied as a new unit, weighs 6.3kg, and carries a one year warranty.

Key physical details include 68mm inside mounting legs, 180mm mount centre to centre, 72mm mount leg thickness, 8mm adjusting hole diameter, and 8mm pivot hole diameter. The pulley is a 6 groove design with a 48mm outside diameter, and the pin code is IR89.

This alternator is listed as suitable for Denso unit make applications, and the notes specify a standard pulley. It also states to use ALT195870 "G" for clutch pulley type, and to test with the AEA "FORD ALT TESTER". Those details matter if you are matching an existing charging system rather than replacing by appearance alone.

Key Features

• 12V, 150A alternator
• Denso style unit
• Internal regulator
• Pad mount design
• 6 groove pulley
• 48mm pulley outside diameter

Specifications

• Part number: ALT195875
• Brand: Auto Electrics Aust
• Product type: Alternator
• Voltage: 12V
• Current output: 150A
• Suits unit make: Denso
• Regulator type: Internal
• Alternator mount: Pad

Fitment guidance

• Fitment information provided includes Ford Focus applications.
• Ford Focus is shown across multiple years, including 2002 through 2012 in the supplied fitment preview.
• The fitment token list also identifies Ford as a supported make grouping.
• Confirm the vehicle’s existing alternator mount style, pulley type, and connector details before ordering.

Application and Buying Notes

When matching this alternator, the most important identifiers are ALT195875, the 12V 150A rating, and the Denso style specification. The physical mounting details are also critical: 68mm inside mounting legs, 180mm centre to centre, 72mm mount leg thickness, and 8mm holes at both the adjusting and pivot points. If those dimensions do not line up with the vehicle’s existing alternator, the unit should not be assumed to fit.

The pulley setup should be checked carefully as well. This alternator uses a standard 6 groove pulley with a 48mm outside diameter, and the note specifically calls out ALT195870 "G" for clutch pulley type. If the vehicle uses a clutch pulley arrangement, that difference can affect interchange, so the existing pulley type should be confirmed against the vehicle already fitted.

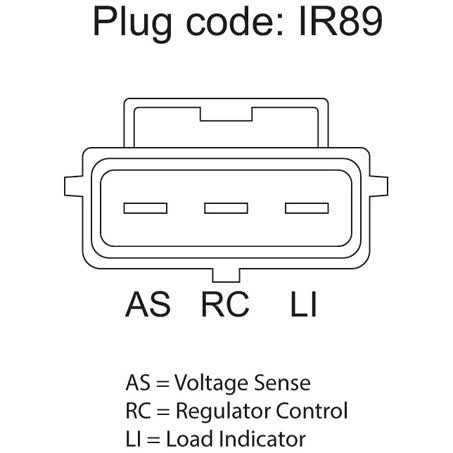

Because the unit uses an internal regulator and a pad mount design, it is best compared against the original alternator rather than relying on general Ford Focus or Denso style wording alone. The pin code is IR89, which is another useful check when comparing connectors and application details. For electrical parts, matching the part number, mounting pattern, pulley style, and plug configuration is the safest approach.

If you are replacing a failed alternator, consider the existing unit’s markings and mounting measurements before purchase. The listing states it is a new alternator and the weight is 6.3kg, which can help when verifying that the replacement is in the same class as the removed unit. For workshop testing, the note advises use of the AEA "FORD ALT TESTER", which is a practical reminder that charging system checks should be made with the correct equipment and vehicle details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ALT195875 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 68mm, Pin Code IR89, Power Rating (Amp) 150, Pulley Section 6 Groove, Suits Unit Make Denso, Note Standard Pulley.Use ALT195870 & "G" for Clutch pulley type. Test with AEA "FORD ALT TESTER", Mount Cnt to Cnt 180mm.

Additional published details for cross-checking include Weight 6.3kg, Product Group 2 ALTERNATORS, Part No. ALT195875, Brand AUTO ELECTRICS AUST, Description Alternator 12V 150A Denso Style, Adjusting Hole Diameter 8, Mount Leg Thickness 72mm, Pivot Hole Diameter 8, Pulley Outside Diameter 48mm, Regulator Type Internal.

Alternator 12V 150A Denso Style. Part number ALT195875 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number ALT195875, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 150 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by comparing part number ALT195875, the Denso style application, mounting dimensions, pulley type, and connector code IR89 against the vehicle already fitted. Do not rely on model name alone; verify the alternator on the vehicle before ordering.

FAQ

What is the part number for this alternator?

The part number is ALT195875.

Is this alternator 12V?

Yes. The listed voltage is 12V.

What is the output rating?

The alternator is rated at 150A.

Does it use an internal regulator?

Yes. The regulator type is listed as internal.

What pulley does it have?

It has a standard 6 groove pulley with a 48mm outside diameter.

What should I check before ordering?

Check the part number ALT195875, the Denso style application, mounting measurements, pulley type, and connector code IR89 against the alternator already fitted to the vehicle.
