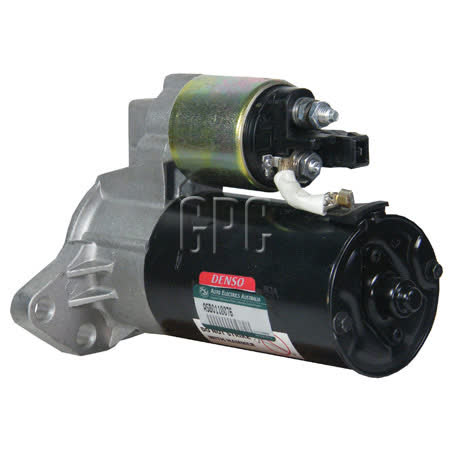

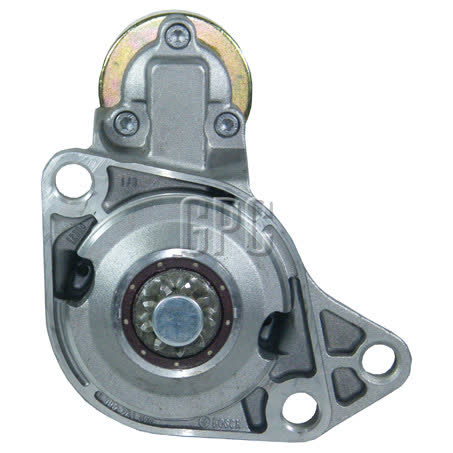

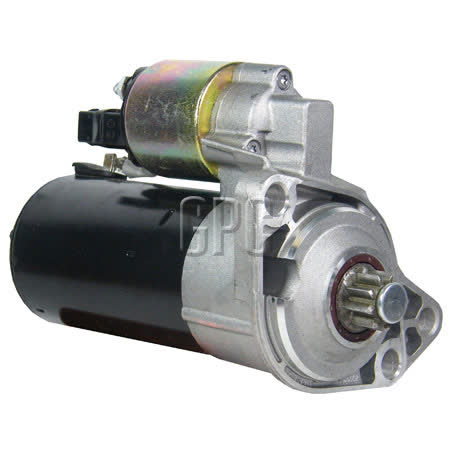

Starter Motor 12V 9T CCW Bosch Style ASBO110076

This AUTO ELECTRICS AUST starter motor is a 12V unit with 9 teeth, counter-clockwise rotation, and a 1.8kW power rating. It is listed as a new starter motor under part number ASBO110076, with a 2-hole starter mount type and Bosch suitability noted for the unit make.

Key physical details include a 76mm flange diameter, 111mm mount centres, 12mm mount hole diameter, 250mm overall length, and a 25mm pinion diameter. The pinion at rest is 33mm, and the unit weight is 4.24kg, which are all useful checkpoints when matching the replacement to the vehicle’s existing starter arrangement.

The listing also notes that it can use 280-6105, with a high torque version referenced as ASBO125035G. That makes the part number, mounting pattern, tooth count, rotation, and dimensions important to confirm before ordering, especially where the original starter is Bosch style and the installation space is tight.

Key Features

• 12V starter motor
• 9-tooth pinion
• Counter-clockwise rotation
• 1.8kW power rating
• Bosch style / suits Bosch unit make
• 2-hole starter mount

Specifications

• Part No.: ASBO110076
• Brand: AUTO ELECTRICS AUST
• Type: Starter Motor
• Voltage: 12V
• Rotation: CCW
• Number of Teeth: 9
• Power Rating: 1.8kW
• Starter Mount Type: 2 Hole

Fitment guidance

• SEAT: IBIZA, IBIZA 1995, IBIZA 1996, IBIZA 1997
• VOLKSWAGEN: GOLF, GOLF 1976, GOLF 1977, GOLF 1978, GOLF 1979, plus other listed applications

Application and Buying Notes

Check the existing starter against the listed part number ASBO110076, because that is the cleanest match point for this Bosch style 12V starter motor. The important physical checks are the 2-hole mount, 111mm mount centres, 12mm mount hole diameter, 76mm flange diameter, and 250mm overall length, as these dimensions must align with the vehicle’s mounting arrangement.

The tooth count and rotation are also critical: this starter is a 9-tooth unit with CCW rotation. If the vehicle’s original starter uses a different tooth count or turns the opposite direction, it should not be treated as a direct replacement. The 25mm pinion diameter and 33mm pinion at rest are additional compatibility checks that help confirm the starter will engage correctly.

This unit is listed as a dry clutch application and has a 1.8kW power rating. Those details matter when comparing against the original part, especially if the vehicle has been fitted with a different starter previously. The note about using 280-6105 and the high torque version ASBO125035G may help when cross-checking alternatives, but the final match should still be confirmed against the vehicle application and the existing starter dimensions.

Because fitment information in listings can vary by build date, engine arrangement, or previous replacement history, it is wise to compare the vehicle’s original starter to the dimensions and identifiers here before purchase. The listed weight of 4.24kg, along with the flange diameter, mount centres, and pinion measurements, can be useful when verifying the correct unit at bench level or during removal of the old starter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ASBO110076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 111mm, Number of Teeth 9, Pinion at Rest 33mm, Power Rating 1.8kW, Suits Unit Make Bosch, Note Can use 280-6105, High torque version ASBO125035G, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 1 ROTATING ELECTRICAL, Part No. ASBO110076, Brand AUTO ELECTRICS AUST, Description Starter Motor 12V 9Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 12, Overall Length 250mm, Pinion Diameter 25mm, Rotation CCW.

Starter Motor 12V 9Th CCW Bosch Style. Part number ASBO110076 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number ASBO110076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996, SEAT IBIZA 1997, VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1976. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number ASBO110076 and the listed application details, including 12V, 9-tooth, CCW rotation, 2-hole mounting, 111mm mount centres, and Bosch style dimensions before ordering.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.

What is the rotation direction?

It is listed as CCW, meaning counter-clockwise rotation. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.

What are the key mounting dimensions?

The starter uses a 2-hole mount, with 111mm mount centres and 12mm mount hole diameter. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.

What part number should I use to confirm compatibility?

The part number is ASBO110076, and it is also described as a Bosch style starter motor. For this listing, part number ASBO110076 is the main reference point. Listed voltage is 12. Published fitment references include SEAT IBIZA, SEAT IBIZA 1995, SEAT IBIZA 1996. These details should still be checked against the original unit before ordering.
