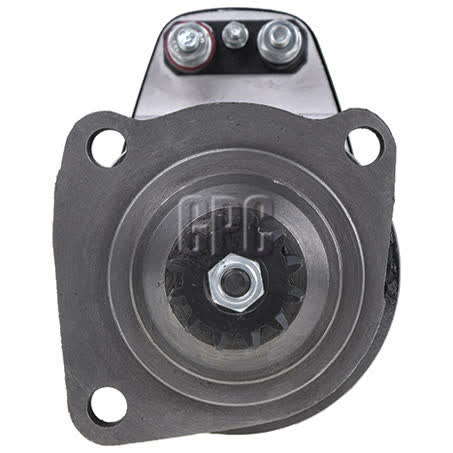

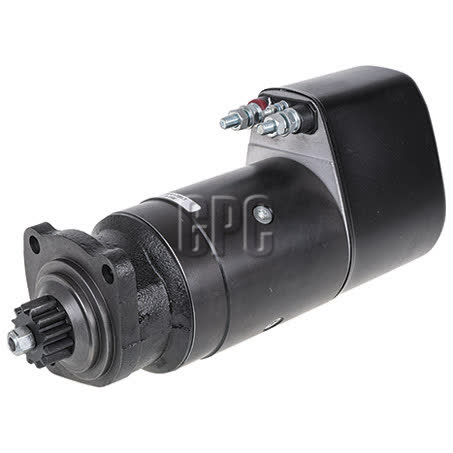

Auto Electrics Aust Starter Motor 24V 12T CW Bosch Style ASBO417053

This Auto Electrics Aust starter motor is a 24V unit with 12 teeth, clockwise rotation, and a Bosch style design. It is identified by part number ASBO417053 and OEM number 0001417053, so those references are the first checks to make before ordering.

The unit is listed as new and carries a one year warranty. Key physical details include a 3 hole starter mount, 89mm flange diameter, 127mm mount centres A, 90mm mount centres B and C, and 13mm mount hole diameter, which are the main dimensions to compare against the original starter.

Electrical and drive details are also clearly defined: 6.6kW power rating, 24 volt operation, 12 tooth pinion, 46mm pinion diameter, 40mm pinion at rest, 401mm overall length, and 19.02kg weight. These are important checks for any heavy duty starter application where the mounting pattern and drive engagement must match exactly.

Key Features

• 24V starter motor
• 12 tooth pinion
• Clockwise rotation
• Bosch style fitment
• 3 hole starter mount
• New unit

Specifications

• Voltage: 24V
• Power rating: 6.6kW
• Rotation: CW
• Number of teeth: 12
• Suits unit make: Bosch
• OEM number: 0001417053
• Starter mount type: 3 hole
• Mount centres A: 127mm

Verified fitment

• MACK G330
• MACK G330 1992
• MACK G330 1993
• MACK G330 1994
• MACK G330 1995
• RENAULT 8
• RENAULT 8 1962
• RENAULT 8 1963

Application and Buying Notes

Before buying, compare the part number ASBO417053 and OEM number 0001417053 with the starter currently fitted to the vehicle. On starters like this, the number of teeth, 24V electrical specification, and clockwise rotation are just as important as the overall look of the unit.

Also check the mounting pattern carefully. This starter uses a 3 hole mount with 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, and a 13mm mount hole diameter. If those dimensions do not match the existing starter or bellhousing arrangement, the unit should not be assumed to fit.

The 401mm overall length, 89mm flange diameter, 46mm pinion diameter, and 40mm pinion at rest give you further checkpoints when comparing against the old part. These measurements matter because even a small difference can affect engagement, clearance, or the ability to bolt the starter into position.

This unit is listed as suitable for Bosch applications and is described as Bosch style. That makes the matching reference numbers and physical dimensions the safest way to confirm suitability, rather than relying on appearance alone. The unit is also specified for wet or dry clutch use, which is useful context for checking the intended application.

If you are replacing a starter on a MACK G330 or Renault 8 application, use the exact model and year where supplied, then confirm the starter details against the original part. The confirmed fitment list includes MACK G330 1992 through 1995, and Renault 8 1962 through 1972, but the final check should still be made against the part number and mounting measurements.

Because this is a 24V, 6.6kW starter weighing 19.02kg, it is best matched to the correct heavy duty application rather than treated as a generic universal part. If the existing starter differs in voltage, tooth count, rotation, flange size, or mount centres, stop and verify before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ASBO417053 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 12, Pinion at Rest 40mm, Power Rating 6.6kW, Suits Unit Make Bosch, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, OEM Number 0001417053, Product Group 1 ROTATING ELECTRICAL, Part No. ASBO417053, Brand AUTO ELECTRICS AUST, Description Starter Motor 24V 12Th CW Bosch Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 13, Overall Length 401mm.

Starter Motor 24V 12Th CW Bosch Style. Part number ASBO417053 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number ASBO417053, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MACK G330, MACK G330 1992, MACK G330 1993, MACK G330 1994, RENAULT 8, RENAULT 8 1962. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number ASBO417053, OEM number 0001417053, and the listed mounting and drive dimensions before purchase. Vehicle application should be checked against the original starter, especially for 24V systems, 12 tooth engagement, clockwise rotation, and the 3 hole mounting pattern.

FAQ

What is the part number for this starter motor?

The part number is ASBO417053. The OEM number listed is 0001417053.

What voltage does this starter motor use?

It is a 24V starter motor.

Is the rotation clockwise or counter-clockwise?

The rotation is clockwise, shown as CW.

How many teeth does the pinion have?

The pinion has 12 teeth.

What are the main mounting measurements?

The starter uses a 3 hole mount, with mount centres A at 127mm, mount centres B at 90mm, mount centres C at 90mm, and a 13mm mount hole diameter.

Which vehicles are listed in the fitment data?

The listed fitment includes MACK G330, including 1992 to 1995, and Renault 8, including 1962 to 1972. Final confirmation should still be made against the part number and measurements.
