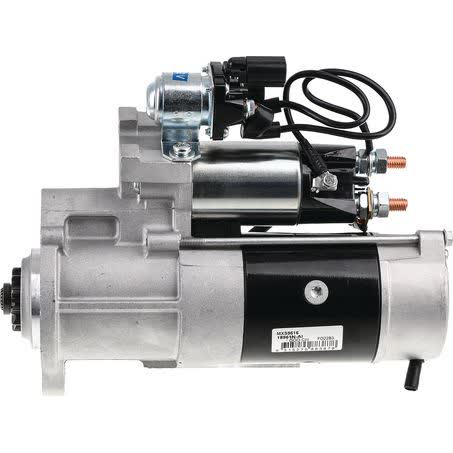

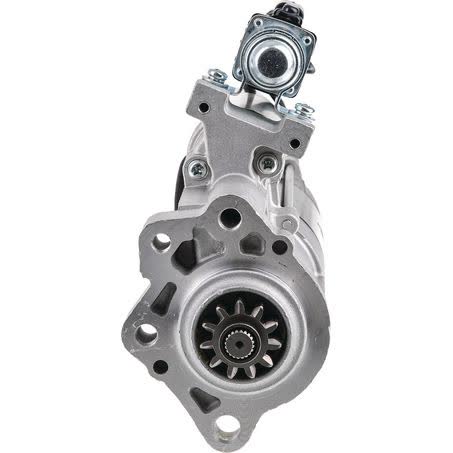

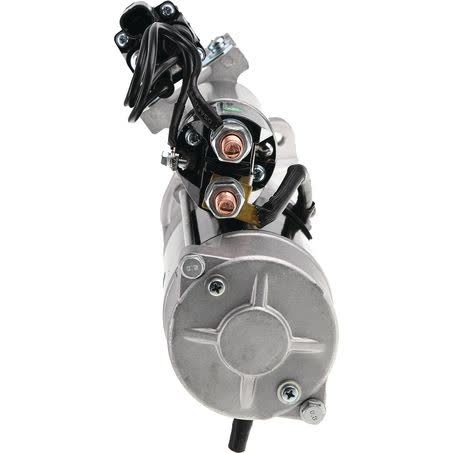

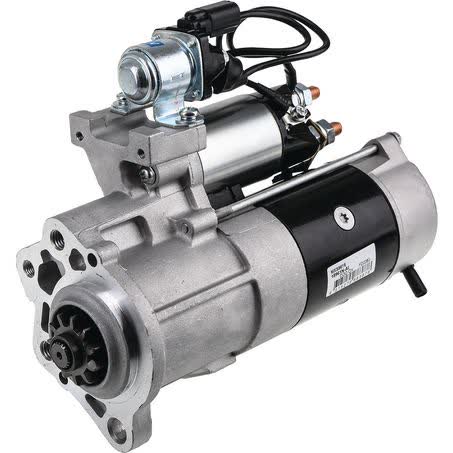

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS9616

The OEX starter motor is a 12V, clockwise rotation unit with 11 teeth, supplied as a new starter motor for Mitsubishi-style applications. It is identified by part number MXS9616 and uses a 3-hole starter mount type, with mount centres of 110mm, 75mm and 64mm.

Key dimensions for checking replacement match include a 66mm flange diameter, 287mm overall length, 41mm pinion diameter and 17mm pinion at rest. The mounting holes are M12x1.75 / 13, and the unit weighs 7.6kg.

This starter motor is listed with a 3kW power rating and is described as suitable for Mitsubishi units. As with any starter replacement, the critical checks are the part number, mount pattern, rotation, tooth count and physical dimensions before ordering.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• New unit
• 3-hole starter mount
• 3kW power rating

Specifications

• Voltage: 12V
• Type: Starter motor
• Rotation: CW
• Number of teeth: 11
• Power rating: 3kW
• Starter mount type: 3 hole
• Mount centres: 110mm, 75mm, 64mm
• Flange diameter: 66mm

Checked fitment references

• Mitsubishi Fuso applications
• Mitsubishi Fuso Aero Midi
• Mitsubishi Fuso Aero Star
• Mitsubishi Fuso Canter
• Mitsubishi Fuso Fighter
• Mitsubishi Fuso Rosa
• Kato HD820V
• FE2, FE6, FE7 and FE8 application references

Application and Buying Notes

Before ordering, compare the part number MXS9616, the 12V specification, clockwise rotation and the 11-tooth pinion against the unit being replaced. The starter mount pattern is a 3-hole design with mount centres at 110mm, 75mm and 64mm, so the physical layout needs to match the vehicle’s existing starter arrangement.

Dimension checks matter on starter motors because flange diameter, overall length and pinion dimensions must suit the application. This unit measures 66mm at the flange, 287mm overall, with a 41mm pinion diameter and 17mm pinion at rest, so these figures should be confirmed against the original part before purchase.

The listed fitment references include Mitsubishi Fuso, Aero Midi, Aero Star, Canter, Fighter and Rosa, along with Kato HD820V and FE2, FE6, FE7 and FE8 references. Those references are useful guidance, but the correct way to confirm is to match the vehicle application, the starter layout and the part number together.

This is a new starter motor, not a remanufactured unit, and it carries a 3yr Passenger / 1yr Commercial warranty. If the vehicle has been modified, fitted with a different gearbox or clutch arrangement, or previously repaired with a non-standard starter, verify the mounting and rotation details carefully before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS9616 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Mount Centres C 64mm, Number of Teeth 11, Pinion at Rest 17mm, Power Rating 3kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS9616, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 66mm, Mount Centres B 75mm, Mount Hole Diameter M12x1.75 / 13, Overall Length 287mm.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS9616 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS9616, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FE2) 2002, FE2) 2005, FE6) 1999, FE6) 2000, FE6) 2001, FE6) 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number MXS9616, 12V, 11 tooth, clockwise rotation, 3-hole mount pattern and the stated dimensions against the original starter motor and vehicle application.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 11 teeth. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is clockwise rotation, listed as CW. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is MXS9616. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3yr Passenger / 1yr Commercial. For this listing, part number MXS9616 is the main reference point. Listed voltage is 12. Published fitment references include FE2) 2002, FE2) 2005, FE6) 1999. These details should still be checked against the original unit before ordering.
