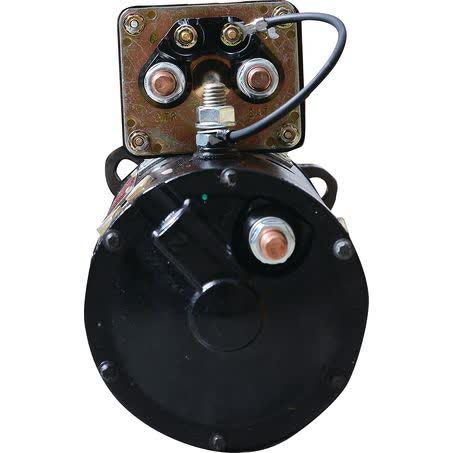

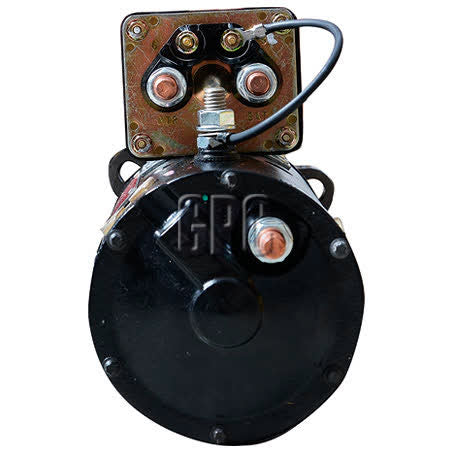

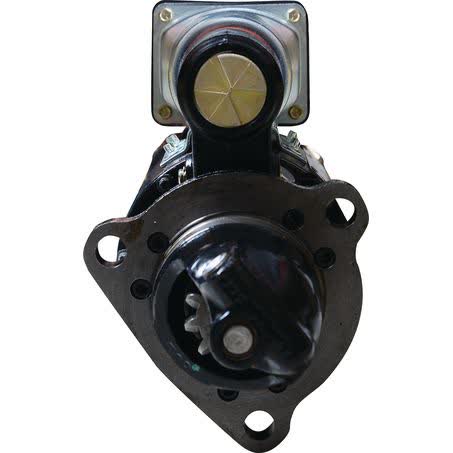

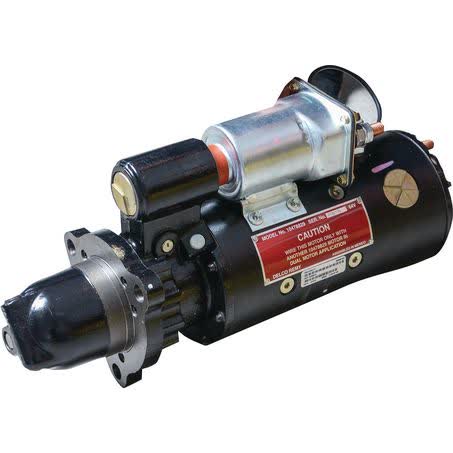

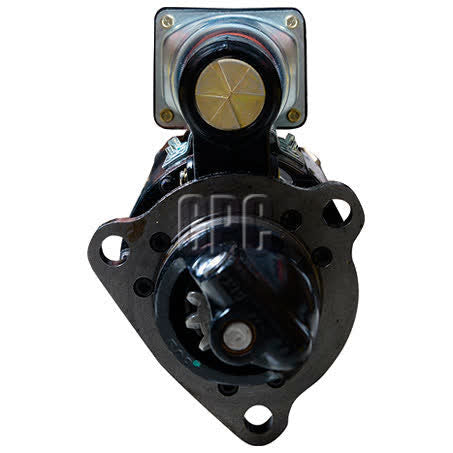

Delco Remy Starter Motor 64V 11T CW 50MT Part No. 10478829

The Delco Remy starter motor listed here is a new rotating electrical unit with a 64V rating, 11 teeth, clockwise rotation, and a 50MT description. It is identified by Part No. 10478829 and is supplied as a starter motor for relevant applications where those specifications match the vehicle or equipment fitment.

This unit is fitted with a 32V solenoid and is noted for dual starter applications. That detail is important, because the starter voltage is 64V while the solenoid is 32V, so the electrical setup needs to be checked carefully before purchase. The mounting and physical dimensions are also specific: 3 hole mount type, 126mm mount centres A, B and C, and a 92mm flange diameter.

With an overall length of 515mm, a pinion diameter of 56mm, pinion at rest of 46mm, and 16mm mount hole diameter, this is a substantial starter motor that should be matched to the correct application. The unit is listed as suitable for Delco units and is specified for wet or dry clutch use.

Key Features

• 64V starter motor
• 32V solenoid for dual starter applications
• Clockwise rotation
• 11-tooth pinion
• 3 hole starter mount
• New unit

Specifications

• Part No.: 10478829
• Brand: Delco Remy
• Type: Starter Motor
• Voltage: 64V
• Solenoid: 32V
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Application and Buying Notes

Before ordering, confirm the part number 10478829, because that is the clearest identifier for this Delco Remy starter motor. The key application points are the 64V starter rating, 32V solenoid, clockwise rotation, and 11-tooth pinion. If any of those details differ from the unit being replaced, it should not be assumed to be a match.

The physical mounting details matter just as much as the electrical specifications. This starter uses a 3 hole mount, 126mm mount centres across A, B and C, a 92mm flange diameter, and 16mm mount holes. The overall length of 515mm and pinion diameter of 56mm are also useful checks where clearance and engagement need to be confirmed.

The note for dual starter applications is specific, so this unit should only be considered where that setup is required. It is also listed with a 32V solenoid, which is a significant detail when comparing against an existing starter or service record. Matching on voltage alone is not enough for a reliable order decision.

For heavier rotating electrical applications, the listed weight of 35.6kg gives a sense of the unit’s scale, but it is the part number, mount pattern, tooth count, and voltage combination that should drive the final check. If the vehicle or equipment uses a Delco starter and the existing unit matches these measurements and identifiers, that is the strongest purchasing guide available here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 10478829 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 46mm, Rotation CW, Voltage 64, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 35.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. 10478829, Brand DELCO REMY, Description Delco Remy Starter Motor 64V 11Th CW 50MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Overall Length 515mm.

Delco Remy Starter Motor 64V 11Th CW 50MT. Part number 10478829 should be checked first. Listed voltage is 64. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 10478829, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 64 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm compatibility by matching Part No. 10478829, the 64V starter rating, 32V solenoid, CW rotation, 11 teeth, and the 3 hole mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is 10478829. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.

What voltage is the starter motor?

The starter motor is rated at 64V. The note also states that it uses a 32V solenoid. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.

Does this starter rotate clockwise or anti-clockwise?

It is specified as clockwise rotation, shown as CW. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It has a 3 hole starter mount, 126mm mount centres A, B and C, a 92mm flange diameter, and 16mm mount hole diameter. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

It is listed as new, and the warranty is one year. For this listing, part number 10478829 is the main reference point. Listed voltage is 64. These details should still be checked against the original unit before ordering.
