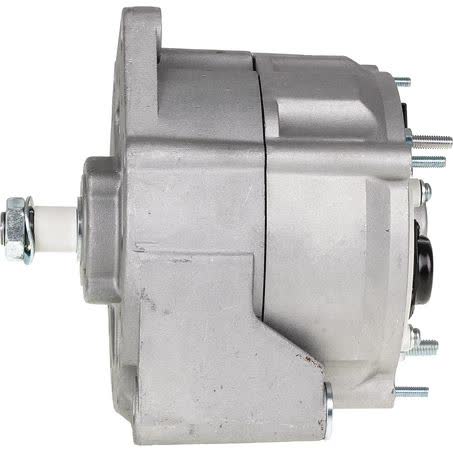

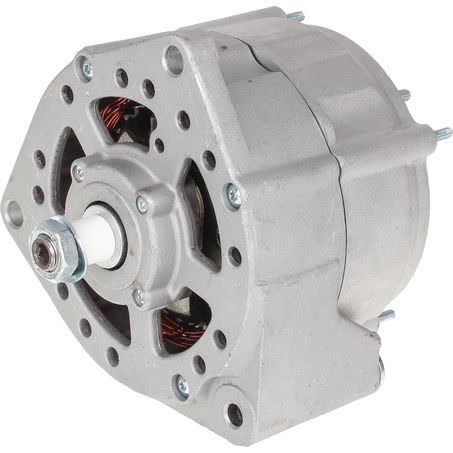

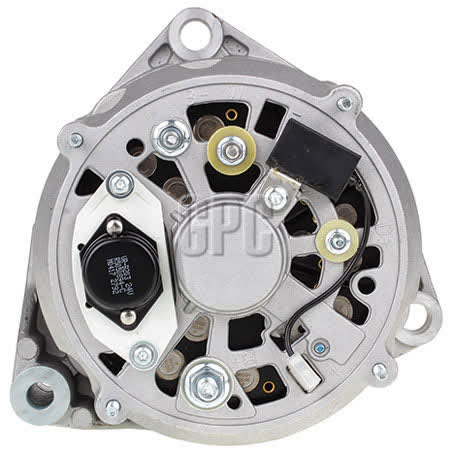

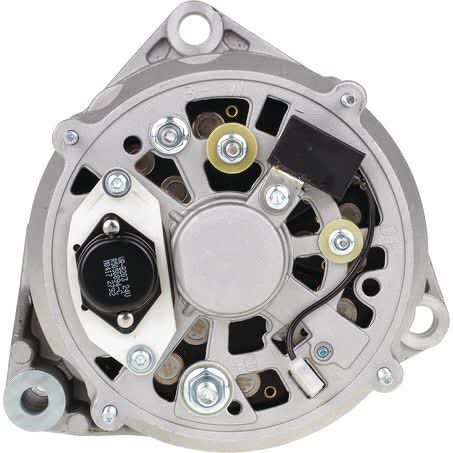

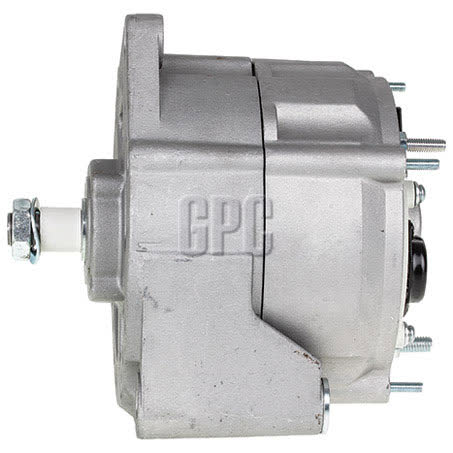

OEX Alternator 24V 55A Bosch Style BXA9016

The OEX Alternator BXA9016 is a new 24V unit with a 55 amp power rating and internal regulator. It is listed as Bosch style and suits Bosch unit make, so matching the part number and mounting details is the safest way to confirm replacement suitability before ordering.

Key dimensions include 151mm mount centres A, 154mm mount centre to centre, a 17mm shaft diameter, 12mm adjusting hole diameter, 10mm pivot hole diameter, and an 80mm mount leg thickness. The alternator uses a single leg mount and a pin code of IR130.

This unit weighs 5.98kg and has a pulley section marked not applicable. It is supplied new, sold each, and carries the OEX warranty listed as 3yr Passenger and 1yr Commercial. For buyers replacing a Bosch-style 24V alternator, those details are the main points to check against the existing unit.

Key Features

• 24V alternator with 55 amp output
• Internal regulator
• Bosch style; suits Bosch unit make
• New unit, supplied each
• Single leg alternator mount
• Part No. BXA9016

Specifications

• Voltage: 24V
• Power rating: 55 amp
• Regulator type: Internal
• Part number: BXA9016

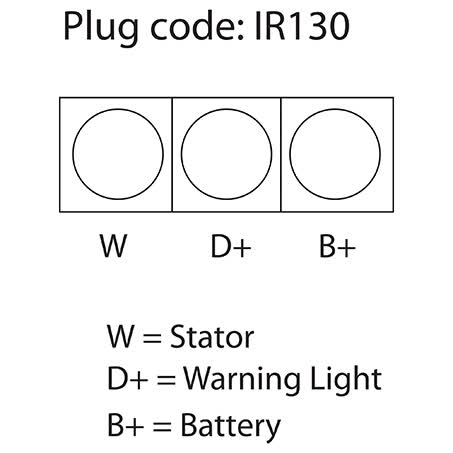

• Pin code: IR130
• Mount centres A: 151mm
• Mount centre to centre: 154mm
• Shaft diameter: 17mm

Known application guidance

• Fitment data includes FRANNA AT-15 and FRANNA AT-22 applications.
• Fitment data also includes JOHN DEERE 250C applications.
• MAN applications are listed, including 16.192, 26.281, 26.402, 26.403, 26.464, 26.482, 30.362, 30.402, 32.281, 32.362, 33.362, 33.402, 35.414, 40.402 and 41.48#.
• Other listed application groups include MAN BUS, MAN F2000 and MAN HOCL.
• MERCEDES-BENZ applications are listed across 1200, 1300, 1500, 1600, 1700, 1900, 2000 and 2400 series.
• Additional listed applications include NORMET SPRAYMEC, SEARAY SEDAN BRIDGE and SISU SK150.

Application and Buying Notes

Before ordering, compare the BXA9016 part number, 24V electrical system, and 55 amp output with the alternator already fitted to the vehicle or machine. The mounting pattern is also important here, with 151mm mount centres A, 154mm mount centre to centre, and a single leg mount arrangement.

Check the shaft and hole dimensions carefully if you are matching by physical fitment. This alternator has a 17mm shaft diameter, a 12mm adjusting hole diameter, a 10mm pivot hole diameter, and an 80mm mount leg thickness. Those measurements need to align with the existing bracketry and hardware before installation.

The unit is listed as Bosch style and suits Bosch unit make, but that alone is not enough to confirm compatibility. Use the application listing as a guide only and verify the exact part number, voltage, amperage, mounting style, and shaft dimension against the original component.

This alternator is new and includes an internal regulator, so it is intended for systems that match those characteristics. If the existing unit uses a different regulator type, pulley arrangement, or mount configuration, it should be checked carefully rather than assumed to interchange.

If you are replacing a Bosch-style alternator on equipment such as FRANNA, MAN, MERCEDES-BENZ, NORMET, SEARAY, or SISU applications, confirm the exact model and year where available. Matching the listed application and the physical measurements is the most reliable way to avoid a mismatch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA9016 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 151mm, Pin Code IR130, Power Rating (Amp) 55, Regulator Type Internal, Suits Unit Make Bosch, Note Can use BXA9005 (80Amp), Mount Cnt to Cnt 154mm.

Additional published details for cross-checking include Shaft Dimension 17, Product Group 2 ALTERNATORS, Part No. BXA9016, Brand OEX, Description OEX Alternator 24V 55A Bosch Style, Adjusting Hole Diameter 12, Mount Leg Thickness 80mm, Pivot Hole Diameter 10, Pulley Section Not Applicable.

OEX Alternator 24V 55A Bosch Style. Part number BXA9016 should be checked first. Listed voltage is 24. Listed output rating is 55. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA9016, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 55 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FRANNA AT-15, FRANNA AT-15 2007, FRANNA AT-15 2008, FRANNA AT-15 2009, JOHN DEERE 250C, JOHN DEERE 250C 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking part number BXA9016, 24V voltage, 55 amp rating, Bosch style application, and the listed mounting and shaft dimensions against the original alternator before purchase.

FAQ

What is the part number for this alternator?

The part number is BXA9016.

What voltage and output does it have?

It is a 24V alternator with a 55 amp power rating.

Does it have an internal regulator?

Yes. The regulator type is listed as internal.

What brand or unit make does it suit?

It is listed as Bosch style and suits Bosch unit make.

What are the main mounting dimensions?

The listed mounting details include 151mm mount centres A, 154mm mount centre to centre, a single leg mount, a 12mm adjusting hole diameter, a 10mm pivot hole diameter, and 80mm mount leg thickness.

What warranty is listed?

The listed warranty is 3yr Passenger and 1yr Commercial.
