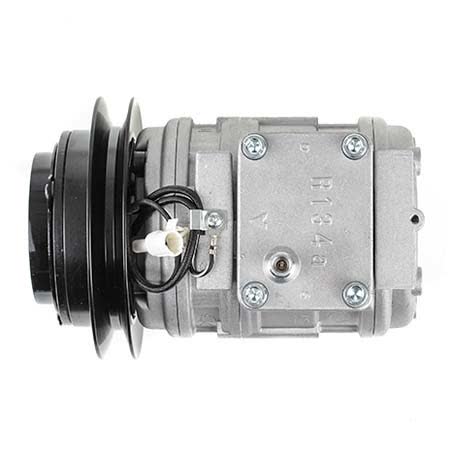

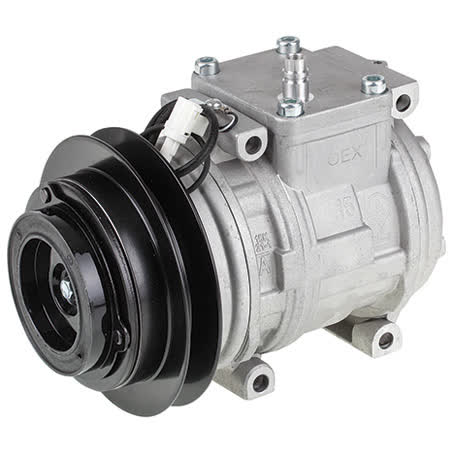

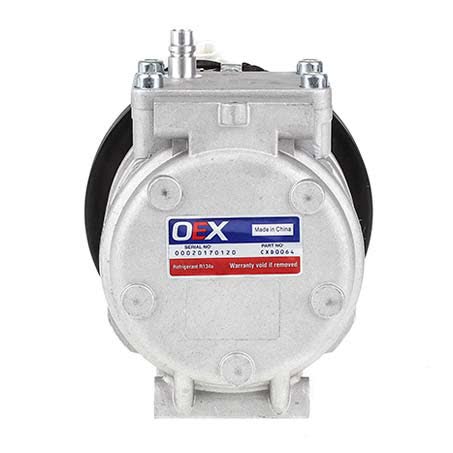

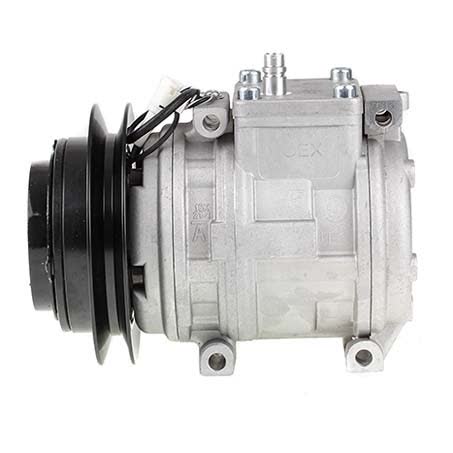

OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA15C Style CXD0064

The OEX air conditioning compressor CXD0064 is a 24V direct mount unit in Denso 10PA15C style, supplied as an each item for vehicle air conditioning repairs. It is listed with a pad fitting type, 142mm clutch diameter, A pulley section, and no access port, so the mounting style and hose/manifold arrangement need to match the vehicle setup closely.

This compressor suits Denso applications and is intended to use the original manifold. That detail matters on vehicles where the compressor body may fit but the manifold shape, port layout, or mounting arrangement needs to remain unchanged. The unit is listed at 7.3kg and has an oil capacity of 130ml.

Confirmed application details supplied with the part include Hino 500 FM 8.0L from 01/1997 to 12/2008 and Hino 700 FS 13.3L from 01/1995 to 01/1998. Where a compressor is being replaced, the safest approach is to compare the part number CXD0064, voltage, mounting style, and manifold arrangement before ordering.

Key Features

• 24V air conditioning compressor
• Direct mount construction
• Denso 10PA15C style
• Pad fitting type
• 142mm clutch diameter
• A pulley section

Specifications

• Brand: OEX
• Part No.: CXD0064
• Type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Direct mount
• Series: 10PA15C
• Suits unit make: Denso
• Clutch diameter: 142mm

Confirmed application details

• Hino 500 FM 8.0L: 01/1997 - 12/2008
• Hino 700 FS 13.3L: 01/1995 - 01/1998

Application and Buying Notes

Before ordering, compare the existing compressor against CXD0064 and check that the vehicle uses a 24V system with a Denso 10PA15C style compressor. The direct mount arrangement and pad fitting type are important because they affect how the unit sits on the engine and how the air conditioning lines connect.

The 142mm clutch diameter, A pulley section, and no access port detail are all useful checkpoints when replacing an older compressor. If the original unit uses a different clutch size, pulley configuration, or service port arrangement, the replacement may not suit even if the vehicle is from the same model range.

The note to use the original manifold is particularly important. On these applications, the compressor body may be similar across variants, but the manifold can determine whether the hose connections and port spacing line up correctly. Confirming the manifold style against the old unit helps avoid installation issues.

Oil capacity is listed at 130ml, and the unit weight is 7.3kg. Those figures are useful when comparing the replacement to the removed part and when planning the job, especially if the system has been open and other service work is being carried out at the same time.

Application data is provided for Hino 500 FM 8.0L from 01/1997 to 12/2008 and Hino 700 FS 13.3L from 01/1995 to 01/1998. That said, air conditioning parts can vary within the same model range, so the safest buying method is to verify the compressor part number CXD0064, the Denso style, and the existing manifold and mount before finalising the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0064 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Clutch Diameter 142mm, Fitting Type Pad, Series 10PA15C, Voltage 24, Oil Capacity 130ml, Weight 7.3kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD0064, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA15C Style, Access Port No, Compressor Mounting Direct Mount, Pulley Section A, Suits Unit Make Denso, Note Use original manifold, Dust Cover Y/N No.

OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA15C Style. Part number CXD0064 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0064, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HINO BLUE RIBBON, HINO BLUE RIBBON 1990, HINO BLUE RIBBON 1991, HINO BLUE RIBBON 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Always confirm fitment by matching part number CXD0064, the 24V direct mount Denso 10PA15C style specification, and the original manifold arrangement against the vehicle already fitted.

FAQ

What is the part number for this compressor?

The part number listed is CXD0064.

What voltage is this compressor?

It is a 24V air conditioning compressor.

What vehicle applications are listed?

Listed applications are Hino 500 FM 8.0L from 01/1997 to 12/2008 and Hino 700 FS 13.3L from 01/1995 to 01/1998.

Does it use the original manifold?

Yes. The note states to use the original manifold.

What are the main mounting details?

It is a direct mount compressor with a pad fitting type and a 142mm clutch diameter.

Is there warranty information supplied?

Yes. The listed warranty is two years.
