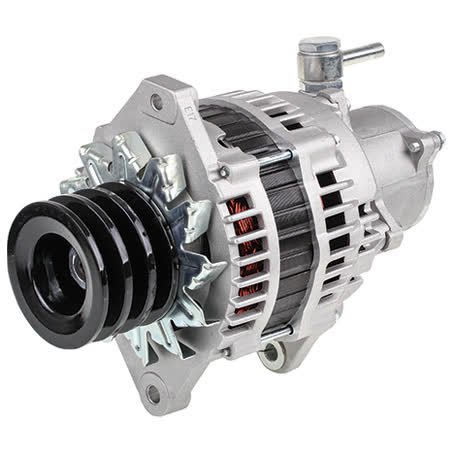

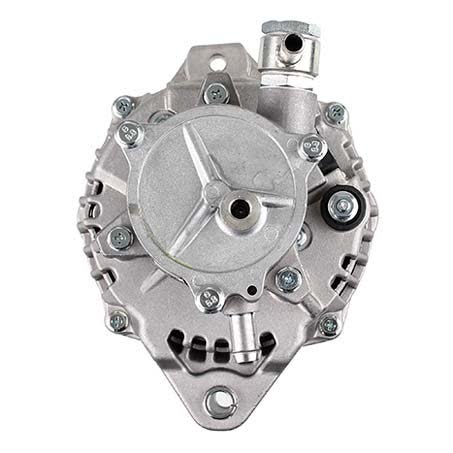

OEX Alternator 24V 60A Hitachi Style HXA106

The OEX Alternator HXA106 is a new 24V, 60A unit in Hitachi style, supplied as an each item for rotating electrical applications. It uses an internal regulator and a twin leg alternator mount, with inside mounting legs measuring 75mm.

Key physical details matter with alternators, and this unit carries a 20mm shaft dimension, an 82mm pulley outside diameter, a AAA pulley section, and a 10.5mm pivot hole diameter. The adjusting hole diameter is 8.5mm, so matching the mounting points and drive layout is an important check before purchase.

This alternator is listed as suitable for Hitachi unit applications and is identified by part number HXA106 and pin code IR49. It is a 24V unit with a 60 amp power rating and a listed weight of 8.9kg, so it is intended for vehicles and equipment that already use a 24 volt charging system.

Key Features

• New alternator, not remanufactured
• 24V output with 60A power rating
• Internal regulator
• Twin leg alternator mount
• Hitachi style unit
• Part number HXA106

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 24V
• Power rating: 60A
• New / reman.: New
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 75mm

Verified application groups

• CASE CX210B
• CASE CX225
• CASE CX225SR
• CASE CX235CSR
• CASE CX240B
• CASE CX250C
• ISUZU ELF
• ISUZU N

Application and Buying Notes

Before ordering, compare the part number HXA106 and the pin code IR49 with the alternator already fitted to the vehicle or machine. The alternator is a 24V 60A Hitachi style unit, so it is only suitable where the charging system, regulator style, and mounting arrangement match those details.

Mounting measurements are worth checking carefully because this unit uses a twin leg mount with 75mm inside mounting legs, a 10.5mm pivot hole, and an 8.5mm adjusting hole. The pulley is 82mm outside diameter with an AAA section, so belt alignment and pulley profile should also be matched to the existing setup.

The listed fitment groups include CASE CX210B, CX225, CX225SR, CX235CSR, CX240B, CX250C, ISUZU ELF, ISUZU N, UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL MK SERIES, and UD TRUCKS CONDOR. Those applications are provided as guidance only, and the safest approach is to confirm the exact replacement against the original unit and vehicle details before fitting.

As a new OEX alternator, this unit is covered by a 3yr Passenger / 1yr Commercial warranty. That warranty detail does not replace fitment checking, but it does give a useful reference when comparing replacement options for a 24V charging system.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA106 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 75mm, Pivot Hole Diameter 10.5, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 24, New / Reman. New, Weight 8.9kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. HXA106, Brand OEX, Description OEX Alternator 24V 60A Hitachi Style, Adjusting Hole Diameter 8.5, Pin Code IR49, Power Rating (Amp) 60, Pulley Section AAA, Suits Unit Make Hitachi, Alternator Mount Twin Leg.

OEX Alternator 24V 60A Hitachi Style. Part number HXA106 should be checked first. Listed voltage is 24. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is AAA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA106, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number HXA106, pin code IR49, 24V system requirements, and the mounting and pulley measurements against the original alternator before ordering.

FAQ

What is the part number for this alternator?

The part number is HXA106. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.

What voltage and amperage does it have?

It is a 24V alternator with a 60A power rating. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.

What mounting details should be checked?

Check the twin leg mount, 75mm inside mounting legs, 10.5mm pivot hole, and 8.5mm adjusting hole against the existing alternator. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.

Which applications are listed for this unit?

Listed application groups include CASE CX210B, CASE CX225, CASE CX225SR, CASE CX235CSR, CASE CX240B, CASE CX250C, ISUZU ELF, ISUZU N, UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL MK SERIES, and UD TRUCKS CONDOR. For this listing, part number HXA106 is the main reference point. Listed voltage is 24. Listed output rating is 60. Published fitment references include CASE CX210B, CASE CX210B 2007, CASE CX225. These details should still be checked against the original unit before ordering.
