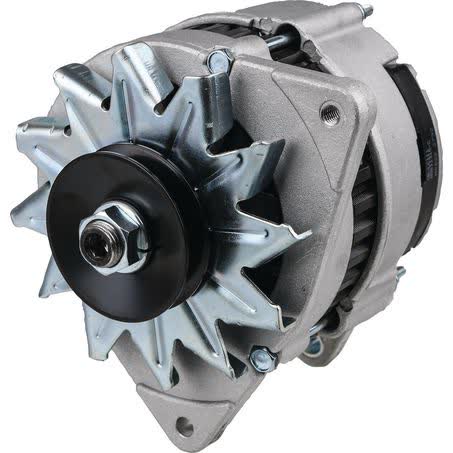

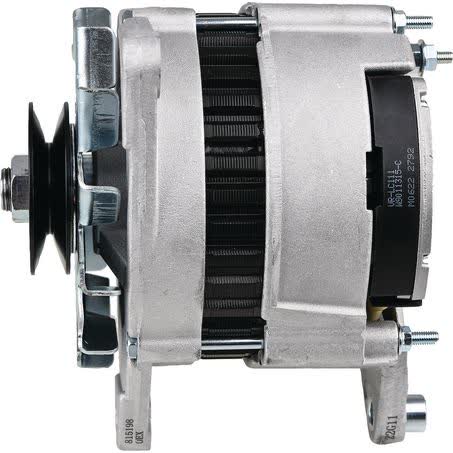

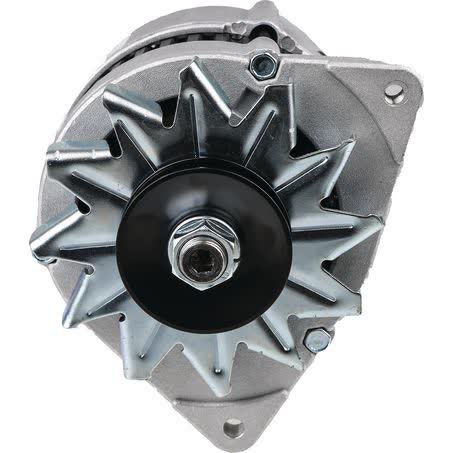

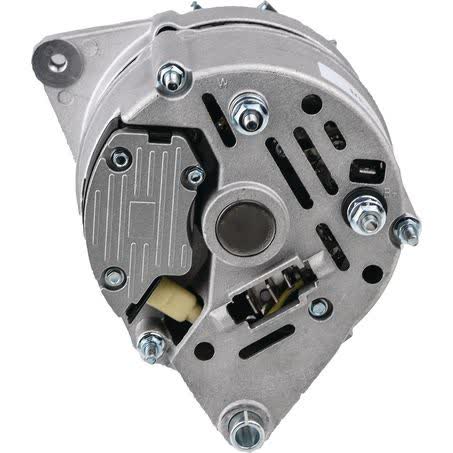

OEX Alternator 12V 70A Lucas Style LXA838

The OEX Alternator LXA838 is a new 12V, 70A unit with a Lucas-style design and Lucas unit make compatibility. It uses an internal regulator, twin leg alternator mount, and a 67mm pulley outside diameter with A section pulley configuration.

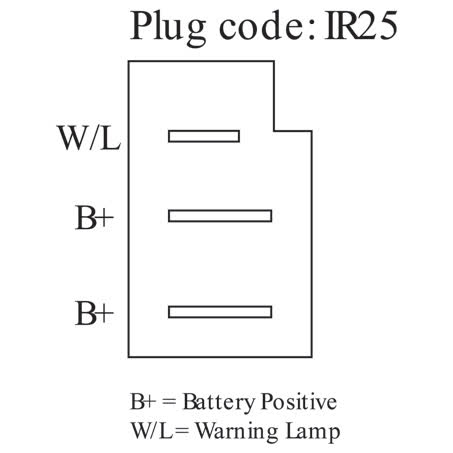

This alternator is listed with a 149mm mount centre-to-centre measurement, 82mm inside mounting legs, 8mm pivot hole diameter, M8 adjusting hole diameter, 17 shaft dimension, and IR25 pin code. Those dimensions are the key checks before ordering, especially where the existing unit has to match the original mounting layout.

OEX identifies this alternator as part of its rotating electrical range and it is supplied as a new unit, not remanufactured. The product is backed by a 3 year passenger / 1 year commercial warranty, which may be useful when comparing options for workshop, fleet, or private use.

Key Features

• 12V alternator rated at 70A
• Lucas style design
• Internal regulator
• New unit
• Twin leg alternator mount
• 67mm pulley outside diameter

Specifications

• Brand: OEX
• Part No.: LXA838
• Product type: Alternator
• Power rating: 70A
• Voltage: 12V
• Suits unit make: Lucas
• Alternator mount: Twin leg
• Inside mounting legs: 82mm

Fitment guidance

• Listed fitment families include Case, Ford, Jaguar, Land Rover, Leyland, Lister Petter, Massey Ferguson, Millers, Toyota, and Valtra.
• Sample applications shown include Case 1210 and 1212, Ford 6000-Series and 7000-Series, Jaguar XJ, Land Rover 110/127 and 88/109, Leyland Terrier TR4, Lister Petter Alpha 40 and Alpha 55T, Massey Ferguson MF 254 C, MF 260, MF 2720, MF 2725, MF 6000, and MF 675, Toyota Dyna 200, and Valtra 900.
• Some listed applications include year references such as 1969, 1979 to 1987, 1980 to 1990, 1991, and 1995 to 2006 depending on model family.
• Because the same model range can use different charging components, match the part number and mounting dimensions before ordering.

Application and Buying Notes

The safest way to buy this alternator is to confirm the part number LXA838 and compare the mounting layout on the vehicle. The important checks here are the 149mm mount centre-to-centre, 82mm inside mounting legs, 8mm pivot hole, M8 adjusting hole, and the 67mm A section pulley.

This is a 12V, 70A alternator with an internal regulator, so it should be matched to the charging system requirements of the vehicle rather than assumed to suit by appearance alone. The Lucas-style and Lucas unit make references are useful indicators, but they do not replace a direct fitment check against the existing unit.

If you are replacing an alternator on a Case, Ford, Jaguar, Land Rover, Leyland, Lister Petter, Massey Ferguson, Toyota, or Valtra application, verify the exact model, year, and any existing alternator code before ordering. The fitment list covers multiple model families, but variation within a family is common.

The unit weighs 4.8kg and is supplied as new, which may matter where the original alternator has wear in the bearings, brushes, or regulator. Use the physical dimensions and electrical details together, not just one or the other, when confirming suitability.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number LXA838 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 82mm, Pivot Hole Diameter 8, Pulley Outside Diameter 67mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 149mm, Shaft Dimension 17.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. LXA838, Brand OEX, Description OEX Alternator 12V 70A Lucas Style, Adjusting Hole Diameter M8, Pin Code IR25, Power Rating (Amp) 70, Pulley Section A, Suits Unit Make Lucas.

OEX Alternator 12V 70A Lucas Style. Part number LXA838 should be checked first. Listed voltage is 12. Listed output rating is 70. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number LXA838, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 70 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 1210, CASE 1210 1969, CASE 1212, CASE 1212 1969, FORD 6000-SERIES, FORD 6000-SERIES 1960. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number LXA838, the Lucas-style application, and the listed mounting and pulley dimensions before purchase. Model family references are helpful, but the final check should always be against the vehicle’s existing alternator and charging system layout.

FAQ

Is this alternator new or remanufactured?

It is listed as a new alternator, not remanufactured.

What voltage and output does it have?

It is a 12V alternator rated at 70A.

Does it use an internal regulator?

Yes. The regulator type is internal.

What part number should I match?

The part number is LXA838.

What mount and pulley details are listed?

It has a twin leg alternator mount, 149mm mount centre-to-centre, 82mm inside mounting legs, 8mm pivot hole diameter, M8 adjusting hole diameter, and a 67mm pulley outside diameter with A section pulley.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
