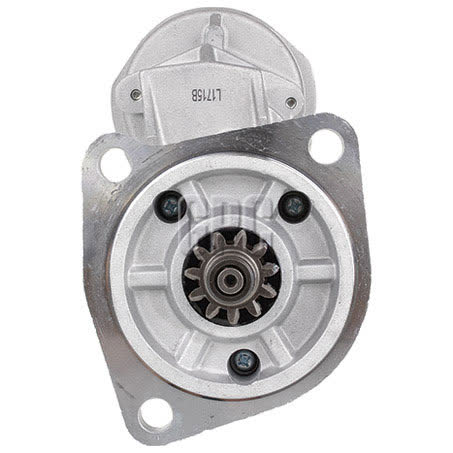

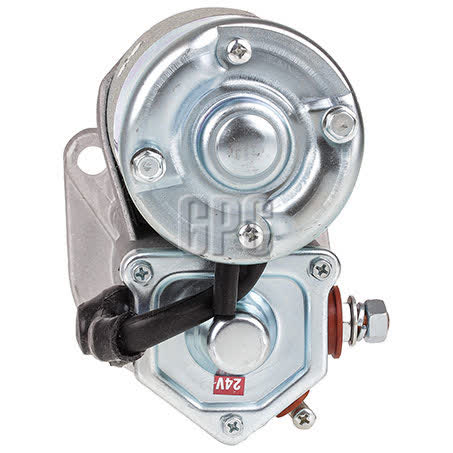

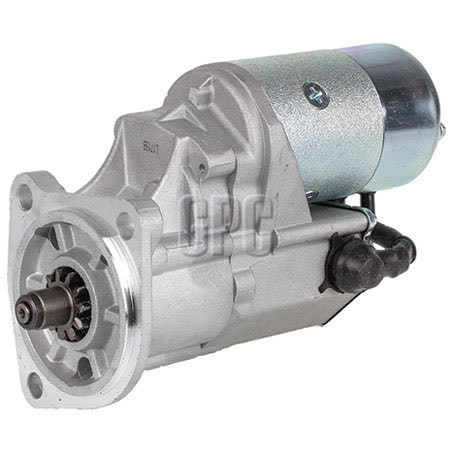

OEX Starter Motor 24V 11T CW Denso Style DXS601

This OEX starter motor is a 24V unit with 11 teeth, clockwise rotation and a Denso style layout. It carries part number DXS601 and is listed as a new starter motor, supplied each, for rotating electrical applications where the physical mounting and electrical setup must match the vehicle.

Key dimensions include 139mm mount centres A, 111mm mount centres B, 93mm mount centres C, a 105mm flange diameter and 13mm mount hole diameter. The starter has an overall length of 290mm, a 41mm pinion diameter and 11mm pinion at rest, so those measurements are worth checking against the existing unit before ordering.

The unit is rated at 4.5kW and uses a 3 hole starter mount type. It is specified as suitable for Denso applications and is listed with dry clutch use, making the installation details and application match important rather than relying on the general appearance alone.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style application
• New unit
• 3 hole starter mount

Specifications

• Part number: DXS601
• Brand: OEX
• Type: Starter motor
• Voltage: 24V
• Power rating: 4.5kW
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Denso

Verified fitment information

• UD Nissan Diesel Condor
• UD Nissan Diesel MK Series
• UD Nissan Diesel

Application and Buying Notes

Before ordering, confirm the part number DXS601, the 24V electrical system and the clockwise rotation match the original starter on the vehicle. The unit is a Denso style starter motor with 11 teeth, so tooth count and rotation should be checked together rather than on their own.

The mounting dimensions are specific: 139mm mount centres A, 111mm mount centres B, 93mm mount centres C, 105mm flange diameter and 13mm mount hole diameter. Those figures need to line up with the existing starter and bellhousing layout, especially on a 3 hole mount application.

The starter is listed at 4.5kW and 6.8kg, with an overall length of 290mm and a 41mm pinion diameter. Those measurements help confirm physical clearance and correct engagement, particularly where similar-looking Denso style starters can vary in housing length, flange size and mount spacing.

Warranty is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used in commercial service, it is important to take note of the shorter warranty period and make sure the installation is completed correctly, as electrical starting issues can also be caused by cabling, earths or battery condition.

Fitment data points to UD Nissan Diesel applications, including Condor and MK Series listings. Even with that application grouping, the safest approach is to confirm the exact vehicle details and compare the original starter’s tag, mounting points and pinion dimensions before purchasing.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS601 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 139mm, Mount Centres C 93mm, Number of Teeth 11, Pinion at Rest 11mm, Power Rating 4.5kW, Suits Unit Make Denso, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 6.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS601, Brand OEX, Description OEX Starter Motor 24V 11Th CW Denso Style, Flange Diameter 105mm, Mount Centres B 111mm, Mount Hole Diameter 13, Overall Length 290mm.

OEX Starter Motor 24V 11Th CW Denso Style. Part number DXS601 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS601, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number DXS601, the 24V CW specification, Denso style application, 11 tooth count and all mounting measurements against the vehicle and the removed starter before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is DXS601. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter motor?

It is a 24V starter motor. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

It is specified as clockwise rotation, shown as CW. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 11 teeth. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

The fitment information includes UD Nissan Diesel, UD Nissan Diesel Condor and UD Nissan Diesel MK Series. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS601 is the main reference point. Listed voltage is 24. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1990, UD NISSAN DIESEL CONDOR 1991. These details should still be checked against the original unit before ordering.
