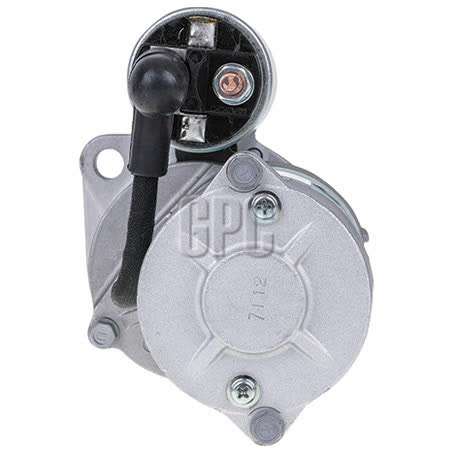

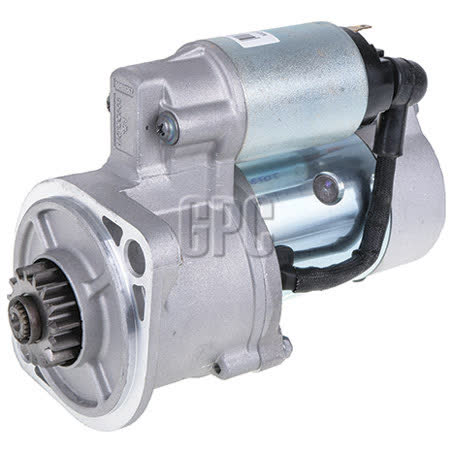

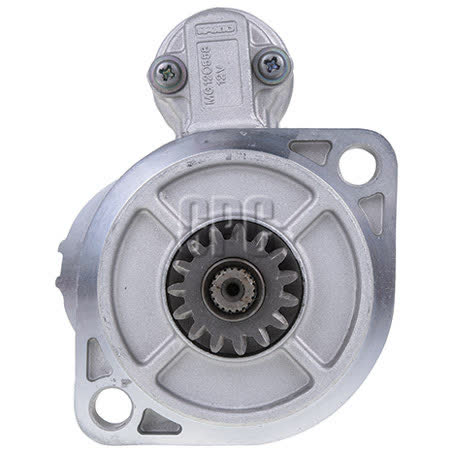

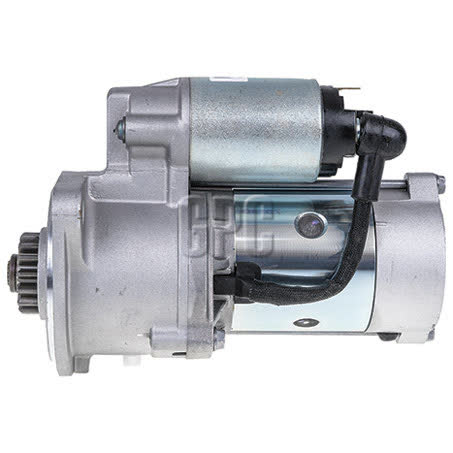

OEX Starter Motor 12V 15T CW Mitsubishi Style MXS9609

The OEX Starter Motor MXS9609 is a 12V, clockwise rotating starter motor with 15 teeth, a 2 hole mount type, and a 2.5kW power rating. It is listed as a Mitsubishi style unit and suits Mitsubishi applications, so it is important to match the physical measurements and the part number before ordering.

Key dimensions on this starter include a 120mm mount centres measurement, 95mm flange diameter, 13mm mount hole diameter, 233mm overall length, 44mm pinion diameter, and 20mm pinion at rest. Those details matter when you are comparing against the removed starter or checking against a vehicle application that uses the same style and mounting pattern.

This unit is supplied new, weighs 6kg, and is identified as a dry clutch starter motor. OEX states it is made using OE components and is sourced from ISO9001 certified factories, with a warranty of 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 15-tooth pinion
• 2.5kW power rating
• New unit
• 2 hole starter mount

Specifications

• Brand: OEX
• Part number: MXS9609
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 15
• Power rating: 2.5kW
• Mount centres A: 120mm

Fitment notes

• Confirmed fitment information includes Mitsubishi as the unit make.
• Listed application groups include Airman, Ammann, Case, Fiori, Gehl, Hitachi, Hyundai Construction, IHI, John Deere, Kobelco, Komatsu, Liugong, Multione, Mustang, New Holland, Sunward, Takeuchi, Terex O&K, Thermo King, Thwaites, Toyota Industrial, Wacker Neuson, and Yanmar.
• Sample listed applications include Airman AX48U-6A, Case CX31B, Fiori D40, Gehl 4240E, Hitachi ZX38U-5A, Hyundai Construction R35Z-7, IHI 30NX-2, John Deere 2032R, Kobelco SK30SR, Komatsu PC20-2, New Holland E50, Takeuchi TB025, Thermo King KD-I, Thwaites 3 tonne, Toyota Industrial 4SDK3, Wacker Neuson 50Z3, and Yanmar F15D.
• John Deere applications shown in the supplied fitment include 110 TLB, 15, 25, 27D, 30, 35D, 2032R, 2036R, 2038R, 3036E, 3038R, 3320E, and 3R series references.
• Fitment should be checked against the exact application listing, starter length, mounting pattern, and rotation before purchase.

Application and Buying Notes

The safest way to buy this starter is to compare the part number MXS9609, the Mitsubishi-style application, and the physical dimensions on the vehicle or old unit. The key checkpoints are 12V, 15 teeth, CW rotation, 120mm mount centres, 95mm flange diameter, and 233mm overall length, because a starter can look similar while still differing in mounting or drive position.

The 2.5kW rating, 2 hole mount type, 13mm mount hole diameter, and 44mm pinion diameter should all be checked against the removed part. These figures help confirm whether the starter will match the engine setup, but they do not replace a direct part-number comparison where one is available.

This starter is listed as a dry clutch unit and weighs 6kg, so it is best suited to buyers who know the starter style on the machine. Where the original unit has been removed, measure the flange, overall length, and mount centres carefully rather than relying on appearance alone.

OEX lists this as a new starter motor made with OE components and backed by a 3 year passenger / 1 year commercial warranty. That warranty is useful for peace of mind, but it still depends on correct application matching and installation on the intended vehicle or machine.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS9609 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 120mm, Number of Teeth 15, Pinion at Rest 20mm, Power Rating 2.5kW, Suits Unit Make Mitsubishi, Note For shorter version, use Denso unit DXS549, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS9609, Brand OEX, Description OEX Starter Motor 12V 15Th CW Mitsubishi Style, Flange Diameter 95mm, Mount Hole Diameter 13, Overall Length 233mm, Pinion Diameter 44mm.

OEX Starter Motor 12V 15Th CW Mitsubishi Style. Part number MXS9609 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS9609, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using the part number MXS9609, the Mitsubishi-style application, and the measured details for your vehicle or machine before ordering. If you are comparing against a removed starter, check 12V, CW rotation, 15 teeth, 120mm mount centres, 233mm overall length, and the 2 hole mount pattern.

FAQ

What type of starter motor is this?

It is an OEX starter motor, part number MXS9609, listed as a 12V clockwise rotating unit with 15 teeth and a 2.5kW power rating.

Is this starter new or remanufactured?

This unit is listed as new.

What are the main mounting measurements?

The main mounting details supplied are 120mm mount centres, a 95mm flange diameter, 13mm mount hole diameter, and a 2 hole starter mount type.

What is the overall length of the starter?

The overall length is 233mm. The note also says that for a shorter version, use Denso unit DXS549.

What warranty is supplied?

OEX lists a 3 year warranty for passenger use and a 1 year warranty for commercial use.

How should fitment be checked before ordering?

Check the part number MXS9609, the Mitsubishi-style application, 12V supply, CW rotation, 15 teeth, and the physical dimensions against the old unit or the machine specifications.
