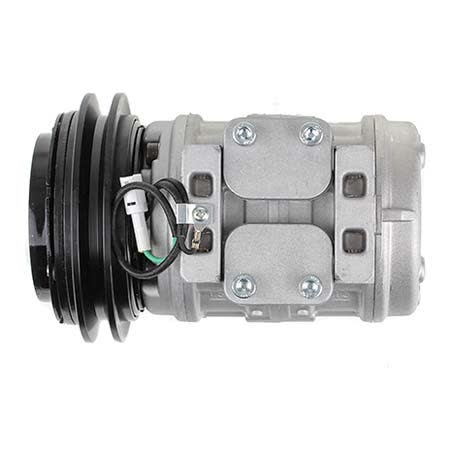

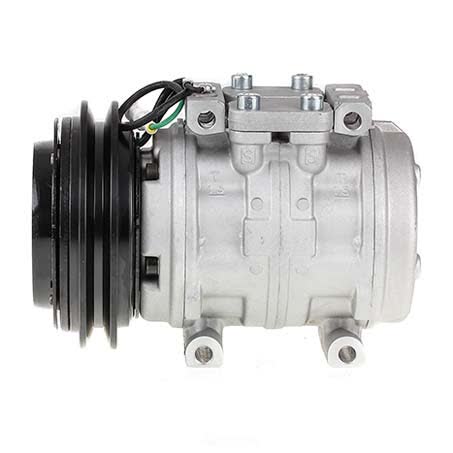

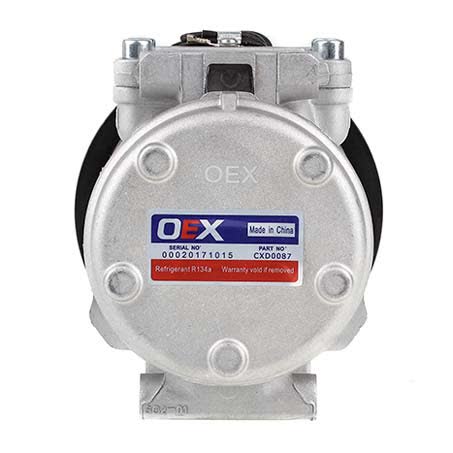

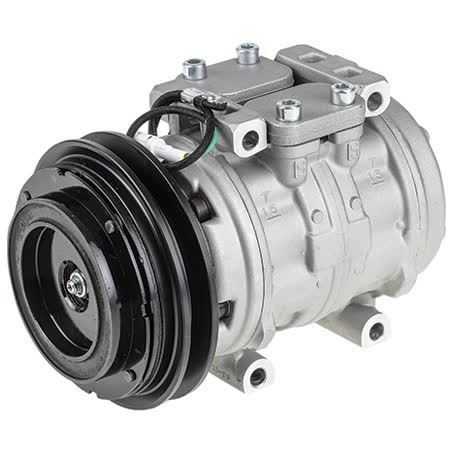

OEX Air Conditioning Compressor 24V Direct Mount 10P13C Style CXD0087

The OEX air conditioning compressor CXD0087 is a 24V direct mount unit in 10P13C style, supplied as a pad-fit compressor with a 138mm clutch diameter. It is listed with Denso as the unit make and uses an A section pulley, which are useful checkpoints when matching it to the vehicle’s existing air conditioning setup.

This compressor is identified with OEM number 447100-6790 and carries a two-year warranty. The listed oil capacity is 150ml, and the unit weight is 5.6kg, so it is worth confirming the full system requirements before fitting rather than relying on appearance alone.

Fitment information supplied with this part includes Hino 500 FD 8.0L from 01/1995 to 12/2008 and Hino 500 FF 6.2L from 01/1982 to 12/1986. A separate fitment preview also references Ford N-Series and Hino 500 Series applications, but only the explicitly listed Hino applications should be treated as confirmed here.

Key Features

• 24V air conditioning compressor
• Direct mount design
• 10P13C style compressor
• Pad fitting type
• 138mm clutch diameter
• A section pulley

Specifications

• Part No.: CXD0087
• OEM Number: 447100-6790
• Voltage: 24V
• Compressor Mounting: Direct Mount
• Series: 10P13C
• Fitting Type: Pad
• Clutch Diameter: 138mm
• Pulley Section: A

Confirmed fitment

• Hino 500 FD 8.0L — 01/1995 to 12/2008
• Hino 500 FF 6.2L — 01/1982 to 12/1986

Application and Buying Notes

When comparing this compressor to your original unit, check the part number CXD0087, the OEM reference 447100-6790, the 24V electrical specification, and the pad mounting style. Those identifiers are the most practical way to confirm you are looking at the same compressor family before purchase.

The listed 10P13C series, 138mm clutch diameter, and A section pulley are all important compatibility checks. A compressor can look similar externally yet differ in mounting or pulley details, so these measurements should be matched against the vehicle and the removed part where possible.

Oil capacity is listed at 150ml, and that matters when the system is being serviced or when a compressor replacement is planned. It is sensible to confirm the correct oil quantity and system condition before installation, especially if the previous compressor has failed and contamination may be present.

This unit is supplied as a single compressor, sold each, with no dust cover listed. If your existing air conditioning system uses different mounting hardware, clutch dimensions, or an alternative compressor make, those differences need to be checked carefully rather than assumed to be interchangeable.

For Hino applications, the supplied fitment ties the part to Hino 500 FD 8.0L from 01/1995 to 12/2008 and Hino 500 FF 6.2L from 01/1982 to 12/1986. If your vehicle falls outside those date and model details, confirm compatibility by part number and physical matching before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0087 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section A, Suits Unit Make Denso, Oil Capacity 150ml, OEM Number 447100-6790, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD0087, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount 10P13C Style, Clutch Diameter 138mm, Fitting Type Pad, Series 10P13C, Voltage 24, Dust Cover Y/N No, Weight 5.6kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 24V Direct Mount 10P13C Style. Part number CXD0087 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0087, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using CXD0087, OEM 447100-6790, and the listed 24V, direct mount, pad-fit, 10P13C specifications against your original compressor and vehicle application details before buying.

FAQ

What is the part number for this compressor?

The listed part number is CXD0087. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.

What OEM number is supplied with this compressor?

The OEM number supplied is 447100-6790. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.

What vehicles are specifically listed as fitting this part?

Confirmed fitment is listed for Hino 500 FD 8.0L from 01/1995 to 12/2008 and Hino 500 FF 6.2L from 01/1982 to 12/1986. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.

What are the main mounting and size details?

It is a direct mount compressor with a pad fitting type, a 138mm clutch diameter, and an A section pulley. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.

Is this compressor 24V or 12V?

This compressor is listed as 24V. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The compressor is listed with a two-year warranty. For this listing, part number CXD0087 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1983, FORD N-SERIES 1984. These details should still be checked against the original unit before ordering.
