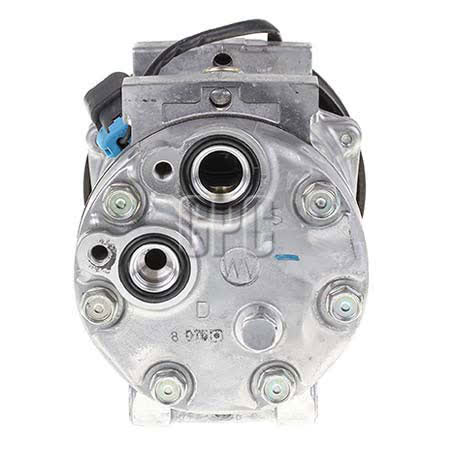

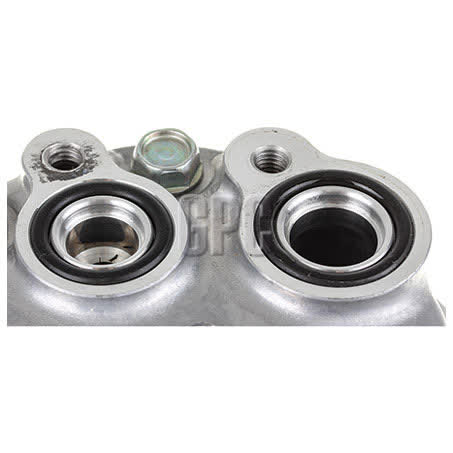

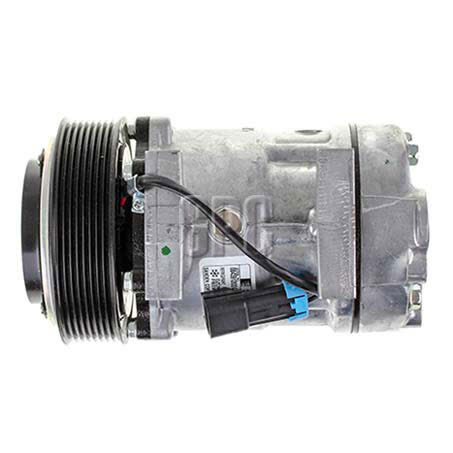

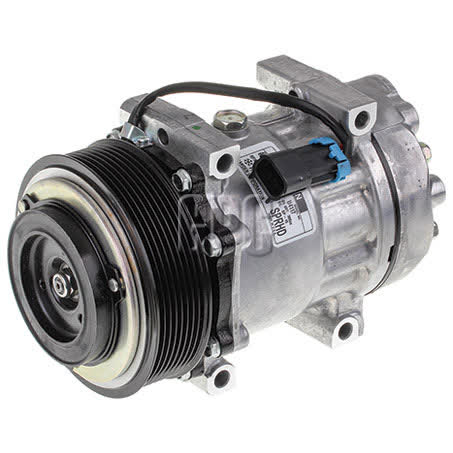

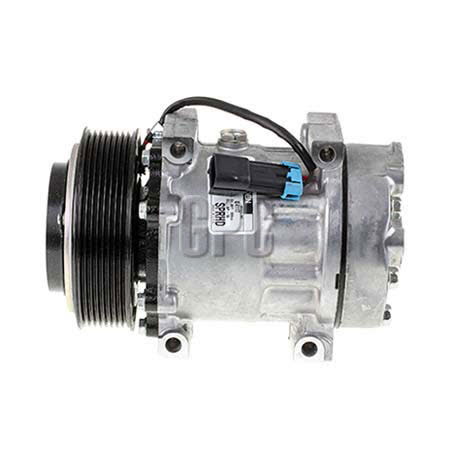

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15SHD CXS4117

The Sanden air conditioning compressor listed here is a 12V direct mount unit in the SD7H15SHD series, with part number CXS4117. It is described as a horizontal pad fitting type with an 8 groove pulley section, 130mm clutch diameter and WV head code, so it suits applications that match those mounting and drive details.

This compressor is listed with fitment for Mack Superliner 16.1TD MP10 from 1/11 onward and Mack Titan 16.1TD MP10 from 1/11 onward. Because compressor installation depends on the exact mounting arrangement, pulley drive, clutch size and hose connection style, the part number and application details should be checked carefully before purchase.

Other useful specifications include 300ml oil capacity, SP 15 oil type, 44mm gauge line and a weight of 9.37kg. The unit of measure is each, and the warranty listed is one year, which gives a clear basis for comparing it against the vehicle’s existing compressor and service requirements.

Key Features

• 12V Sanden air conditioning compressor
• Direct mount design
• SD7H15SHD series
• Part number CXS4117
• 8 groove pulley section
• 130mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: SD7H15SHD
• Part number: CXS4117
• Clutch diameter: 130mm
• Pulley section: 8 groove

Verified fitment

• Mack Superliner 16.1TD MP10 from 1/11 onward
• Mack Titan 16.1TD MP10 from 1/11 onward

Application and Buying Notes

Before ordering, compare the existing compressor against the key identifiers on this unit: CXS4117, SD7H15SHD, 12V, direct mount, 8 groove pulley and 130mm clutch diameter. Those details matter because a compressor can look similar while still differing in mounting style, pulley alignment or clutch configuration.

The listed fitment is specific to Mack Superliner 16.1TD MP10 from 1/11 onward and Mack Titan 16.1TD MP10 from 1/11 onward. If the vehicle is outside those applications, or if the current compressor uses a different head code, hose layout or drive setup, the safer approach is to confirm the part number and the physical unit currently fitted.

At 9.37kg, this is a substantial component and it should be handled as a proper replacement item rather than a universal fit part. The one year warranty gives a clear coverage period, but it does not replace the need to confirm that the mount, pulley section and hose arrangement suit the vehicle before fitting.

If you are replacing a failed compressor, it is wise to compare the old unit’s mounting face, clutch diameter and pulley grooves with the details above. The horizontal pad fitting type and WV head code are practical checkpoints that help narrow down the correct match when several Sanden variants may appear similar in catalogue listings.

For workshop or fleet use, the most reliable buying process is to verify the compressor code on the vehicle, then check the application against the listed Mack Superliner and Mack Titan entries. That approach reduces the risk of ordering a unit that shares the Sanden name and 12V rating but does not match the exact direct mount configuration required.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4117 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 . Oil Type SP 15, Oil Capacity 300ml, Weight 9.37kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS4117, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 SHD, Clutch Diameter 130mm, Fitting Type Horizontal Pad, Series SD7H15SHD, Voltage 12, Gauge Line 44mm, Head Code WV Head.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 SHD. Part number CXS4117 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4117, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MACK SUPERLINER, MACK SUPERLINER 2008, MACK TITAN, MACK TITAN 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number CXS4117, the SD7H15SHD series, 12V direct mount configuration, 8 groove pulley, 130mm clutch diameter and the listed Mack applications before purchase.

FAQ

What is the part number for this compressor?

The part number listed is CXS4117.

What vehicles are listed as fitment for this compressor?

It is listed for Mack Superliner 16.1TD MP10 from 1/11 onward and Mack Titan 16.1TD MP10 from 1/11 onward.

What voltage does this compressor use?

The compressor is specified as 12V.

What mounting type does it use?

It is a direct mount compressor with a horizontal pad fitting type.

What pulley and clutch details are listed?

The listed pulley section is 8 groove and the clutch diameter is 130mm.

What oil specification is noted?

The note specifies SP 15 oil type and an oil capacity of 300ml.
