OEX Starter Motor 12V 9 Tooth CW Valeo Style VXS919

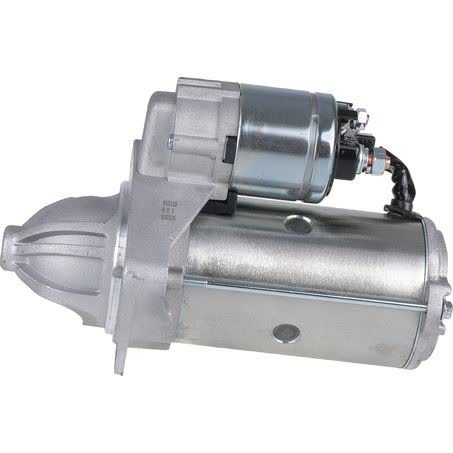

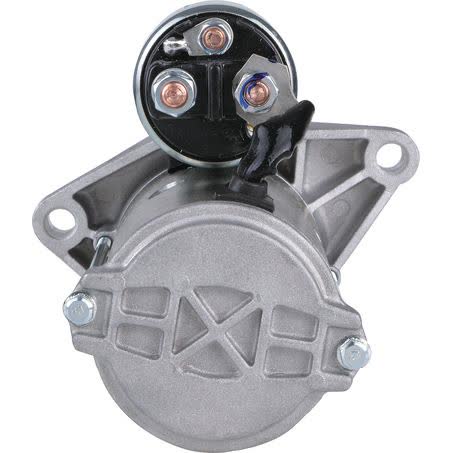

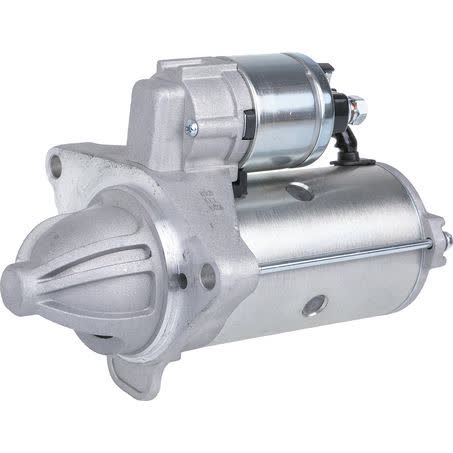

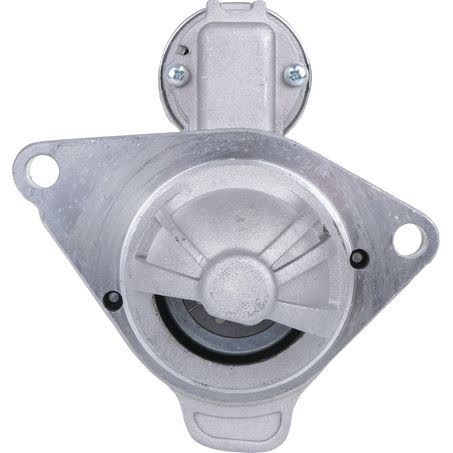

The OEX Starter Motor VXS919 is a new 12V unit with clockwise rotation and a 9 tooth pinion, designed in a Valeo style with a 2 hole starter mount. Key dimensions include 124mm mount centres, 60mm nose cone length, 209mm overall length and a 76mm flange diameter, so physical comparison is straightforward before ordering.

This starter motor is rated at 2.2kW and has a 29mm pinion diameter with 19mm pinion at rest. It weighs 3.8kg and is supplied as a single each unit. Those measurements matter when checking clearance, mounting pattern and the existing starter arrangement on the vehicle.

OEX lists this unit as suited to Valeo applications, and the fitment information provided includes Holden Colorado, Holden Colorado 7 and Holden Trailblazer applications across multiple years. Even with that fitment data, it is still important to confirm the part number VXS919 and match the mounting and electrical details before purchase.

Key Features

• 12V starter motor
• Clockwise rotation
• 9 tooth pinion
• Valeo style unit
• 2 hole starter mount
• New unit, not remanufactured

Specifications

• Part No.: VXS919
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.2kW
• Starter mount type: 2 hole

Verified fitment guidance

• Holden Colorado
• Holden Colorado 7
• Holden Trailblazer
• Multiple Holden Colorado model years are listed in the supplied fitment preview, including 2012 through 2020
• Holden Colorado 7 2012 is included in the provided fitment grouping preview

Application and Buying Notes

Before ordering, compare the part number VXS919, the 12V electrical requirement, the clockwise rotation and the 9 tooth pinion against the starter already fitted to the vehicle. The 2 hole mount, 124mm mount centres, 76mm flange diameter and 10mm mount hole diameter are all useful checks when confirming the replacement is the same style and shape.

The 2.2kW power rating and 3.8kg weight give a good indication of the unit class, but they should not be used on their own to confirm fitment. For a proper match, the Valeo style, nose cone length of 60mm and overall length of 209mm should also be compared with the original starter and the vehicle application details.

If the vehicle is one of the listed Holden applications, use the application data together with the physical measurements rather than relying on model name alone. Starter motors can look similar across different variants, so matching the mounting pattern, pinion details and rotation direction is the safest way to avoid ordering the wrong part.

This unit is new and carries a 3 year passenger and 1 year commercial warranty, which is helpful when planning the job, but warranty does not replace fitment checking. The safest approach is to verify the existing starter, confirm the Valeo-style specification and make sure the dimensions align before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS919 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 124mm, Nose Cone Length 60mm, Overall Length 209mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS919, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo Style, Flange Diameter 76mm, Mount Hole Diameter 10, Number of Teeth 9, Pinion at Rest 19mm, Power Rating 2.2kW.

OEX Starter Motor 12V 9Th CW Valeo Style. Part number VXS919 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS919, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013, HOLDEN COLORADO 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number VXS919, the supplied Holden application details and the physical specifications listed above. If the existing starter differs in mount type, rotation, tooth count, dimensions or electrical rating, do not assume this unit will be an exact match.

FAQ

What is the part number for this starter motor?

The part number is VXS919. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.

What vehicles are shown in the supplied fitment data?

The supplied fitment preview includes Holden Colorado, Holden Colorado 7 and Holden Trailblazer applications, with multiple Holden Colorado model years shown in the preview. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS919 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2012, HOLDEN COLORADO 2013. These details should still be checked against the original unit before ordering.
