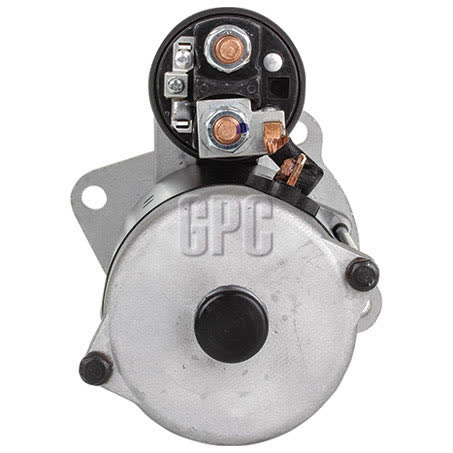

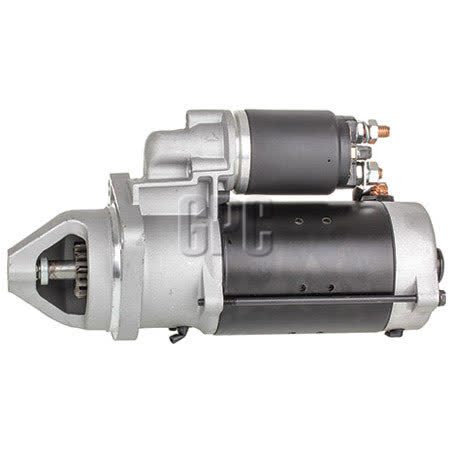

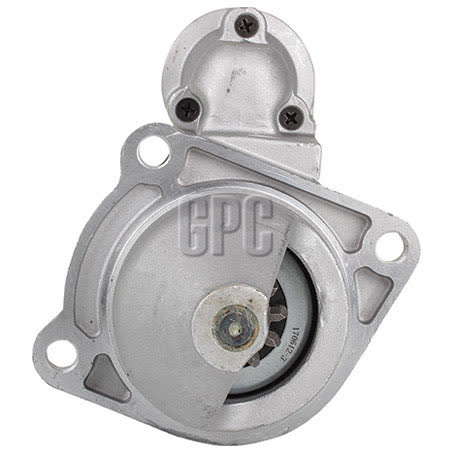

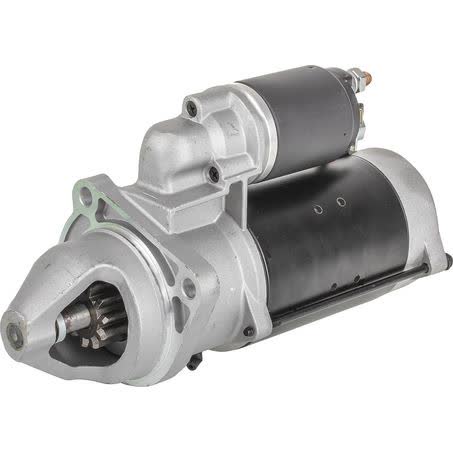

OEX Starter Motor 24V 11TH CW Bosch Style BXS9054

The OEX Starter Motor BXS9054 is a 24V new starter motor with 11 teeth, clockwise rotation and a Bosch suitment style. It is listed as a 4kW unit with a 3 hole starter mount, making the core dimensions and mounting pattern important checkpoints before purchase.

Key physical measurements include 127mm mount centres A, 94mm mount centres C, 82mm mount centres B, an 89mm flange diameter, 11mm mount hole diameter and a 314mm overall length. The pinion measures 40mm in diameter and sits 29mm at rest, so it is sensible to compare these details against the original unit already fitted to the vehicle.

This starter motor is supplied as a new unit and is intended for 24V applications. The listing identifies Bosch as the suit unit make and includes fitment references for selected Fendt and MAN applications, but the correct match still depends on the vehicle’s existing starter specification and part number.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, are sourced from ISO certified factories, and are backed by a comprehensive nationwide warranty. For this part, the warranty is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• 24V new starter motor
• 11-tooth pinion
• Clockwise rotation
• Bosch style suitment
• 4kW power rating
• 3 hole starter mount

Specifications

• Part No.: BXS9054
• Brand: OEX
• Product type: Starter Motor
• Voltage: 24V
• Power rating: 4kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Confirmed fitment references

• Fendt
• Fendt Favorit
• Fendt Vario
• MAN
• MAN 10.223
• MAN 10.224
• MAN 12.223
• MAN 12.24#

Application and Buying Notes

Before ordering, match the part number BXS9054 and compare the mounting pattern carefully. The listed dimensions of 127mm, 94mm and 82mm mount centres, plus the 89mm flange diameter and 11mm mount hole diameter, are the best checks for confirming the starter will physically fit the vehicle’s mounting arrangement.

Because this is a 24V 4kW starter motor with 11 teeth and CW rotation, it needs to align with the vehicle’s electrical system and the original starter specification. A 12V unit, a different tooth count, or the opposite rotation would not be a like-for-like replacement.

The Bosch style identification is relevant, but style alone is not enough to confirm compatibility. Compare the overall length of 314mm, the 40mm pinion diameter and the 29mm pinion-at-rest measurement with the removed starter, especially if space around the bell housing or mounting position is limited.

The fitment references include selected Fendt and MAN applications, but those references should be treated as a guide only. Model names can cover more than one starter arrangement, so the original unit’s tag, part number, mounting ears and pinion details remain the safest way to confirm the correct part.

This starter is listed as a new unit and is supplied with a 3 year passenger / 1 year commercial warranty. Warranty cover should be read alongside the intended use, since the listed commercial warranty period is different from the passenger warranty period.

If you are replacing an existing Bosch style starter, take the old unit off and compare all visible identifiers before fitting. A careful check of the mount centres, tooth count, rotation and voltage is the quickest way to avoid downtime from ordering the wrong starter motor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9054 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 94mm, Number of Teeth 11, Pinion at Rest 29mm, Power Rating 4kW, Suits Unit Make Bosch, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXS9054, Brand OEX, Description OEX Starter Motor 24V 11Th CW Bosch Style, Flange Diameter 89mm, Mount Centres B 82mm, Mount Hole Diameter 11, Overall Length 314mm.

OEX Starter Motor 24V 11Th CW Bosch Style. Part number BXS9054 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9054, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FENDT FAVORIT, FENDT FAVORIT 1993, FENDT VARIO, FENDT VARIO 2010, MAN 10.223, MAN 10.223 1997. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number BXS9054, voltage 24V, 11 teeth, CW rotation, Bosch suitment, and the stated mounting and dimensional details against the vehicle’s original starter before purchase.

FAQ

Is this starter motor new or remanufactured?

It is listed as a new starter motor, not a remanufactured unit.

What voltage is the OEX BXS9054 starter motor?

The listed voltage is 24V.

How many teeth does the pinion have?

It has 11 teeth.

What rotation does this starter motor use?

The listed rotation is clockwise (CW).

What vehicles are referenced for fitment?

Fitment references include selected Fendt and MAN applications, including Fendt Favorit, Fendt Vario, MAN 10.223, MAN 10.224, MAN 12.223 and several other MAN model references.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
