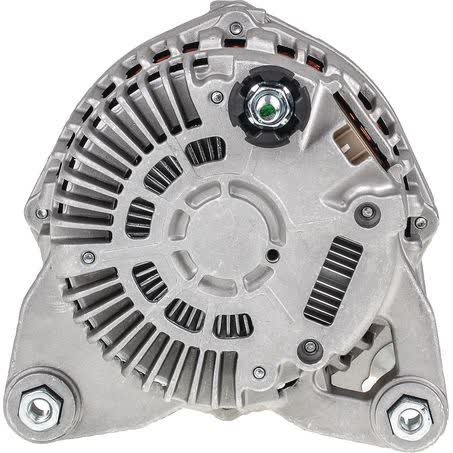

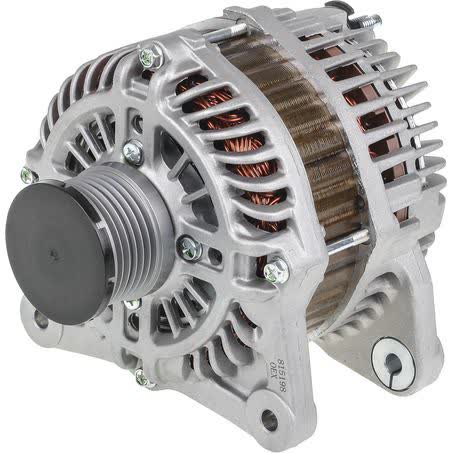

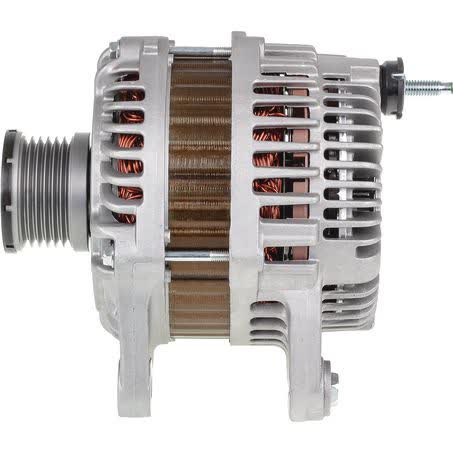

OEX Alternator 12V 110A Mitsubishi Style MXA2065

The OEX Alternator MXA2065 is a new 12V, 110A rotating electrical unit with a Mitsubishi-style fitment pattern. It is supplied as an each item and uses an internal regulator, a 6 groove pulley, and a quad leg alternator mount, so matching the mounting layout and pulley setup is important before purchase.

This alternator carries an inside mounting leg measurement of 58mm, an adjusting hole diameter of 8 / M8 x 1.25, and a pulley outside diameter of 50mm. Those details matter when checking replacement suitability, especially where the original unit has a specific bracket arrangement or belt configuration.

OEX lists this unit under part number MXA2065, with a brand designation of OEX and a description of OEX Alternator 12V 110A Mitsubishi Style. It weighs 5.72kg and is backed by a 3yr Passenger 1yr Commercial warranty, which gives a clear reference point when comparing against the unit being removed from the vehicle.

The alternator is identified as Mitsubishi style, but the fitment data supplied also shows Nissan applications in the range. That makes accurate part-number matching and application checking essential, particularly where the vehicle family, year, or engine arrangement may affect alternator interchange.

Key Features

• New alternator, not remanufactured
• 12V output with 110A power rating
• Internal regulator type
• 6 groove pulley arrangement
• Quad leg alternator mount
• Inside mounting legs: 58mm

Specifications

• Brand: OEX
• Product type: Alternator
• Unit of measure: Each
• Voltage: 12V
• Power rating: 110A
• Suits unit make: Mitsubishi
• Alternator mount: Quad Leg
• Pulley section: 6 Groove

Known fitment applications

• Nissan Dualis / Dualis + 2
• Nissan Tiida
• Nissan X-Trail
• Fitment preview supplied includes Nissan Dualis / Dualis + 2 models from 2007 through 2013
• Fitment preview supplied includes Nissan Tiida models from 2006 through 2008

Application and Buying Notes

Before ordering, compare the removed alternator against MXA2065 and check the mounting arrangement carefully. The key checkpoints supplied here are the Mitsubishi-style housing, quad leg mount, 58mm inside mounting legs, and the 8 / M8 x 1.25 adjusting hole diameter, all of which need to line up with the vehicle’s existing bracket and tensioning setup.

The electrical side also needs to match. This unit is rated at 12V and 110A, with an internal regulator and a 6 groove pulley measuring 50mm outside diameter. If the belt profile, pulley section, or regulator style differs from the original unit, the alternator may not be suitable even if the physical housing looks close.

Fitment information supplied for this product shows Nissan applications across Dualis / Dualis + 2, Tiida, and X-Trail ranges. Use that as a starting point only, then confirm the exact vehicle application with the part number, model year, and the alternator removed from the vehicle. Small changes in mounting and pulley specification can affect interchange.

If the vehicle is used in commercial service, the listed warranty is 1yr Commercial. Passenger use is listed at 3yr. As with any charging system part, the alternator should be tested and the belt condition checked during installation so the replacement is not affected by an existing fault elsewhere in the charging circuit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2065 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 58mm, Power Rating (Amp) 110, Pulley Section 6 Groove, Suits Unit Make Mitsubishi, Alternator Mount Quad Leg, Weight 5.72kg, Product Group 1 ROTATING ELECTRICAL.

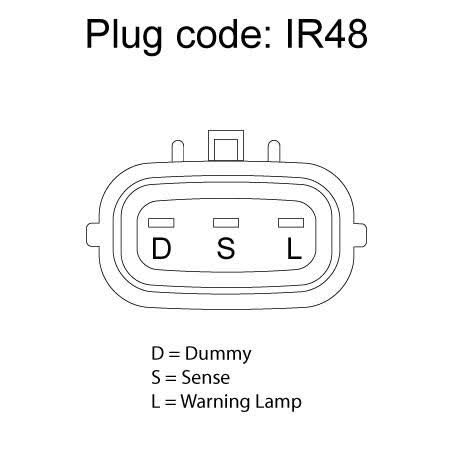

Additional published details for cross-checking include Part No. MXA2065, Brand OEX, Description OEX Alternator 12V 110A Mitsubishi Style, Adjusting Hole Diameter 8 / M8 x 1.25, Pin Code IR48, Pulley Outside Diameter 50mm, Regulator Type Internal, Voltage 12, New / Reman. New.

OEX Alternator 12V 110A Mitsubishi Style. Part number MXA2065 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2065, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN DUALIS/DUALIS + 2, NISSAN DUALIS/DUALIS + 2 2007, NISSAN DUALIS/DUALIS + 2 2008, NISSAN DUALIS/DUALIS + 2 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number MXA2065, the 12V 110A specification, the Mitsubishi-style quad leg mounting, and the 6 groove pulley details against the vehicle and the unit being replaced. Do not rely on model name alone.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What is the voltage and output rating?

The alternator is rated at 12V and 110A.

What part number should I use to confirm the item?

The supplied part number is MXA2065.

What mounting style does it use?

It uses a quad leg alternator mount and is described as Mitsubishi style.

What pulley setup does it have?

It has a 6 groove pulley with a 50mm outside diameter.

Which vehicles are shown in the fitment information?

The supplied fitment preview includes Nissan Dualis / Dualis + 2, Nissan Tiida, and Nissan X-Trail applications. Exact suitability should still be confirmed against the part number and the removed unit.
