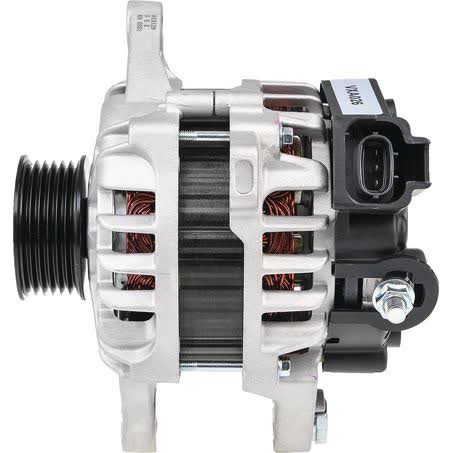

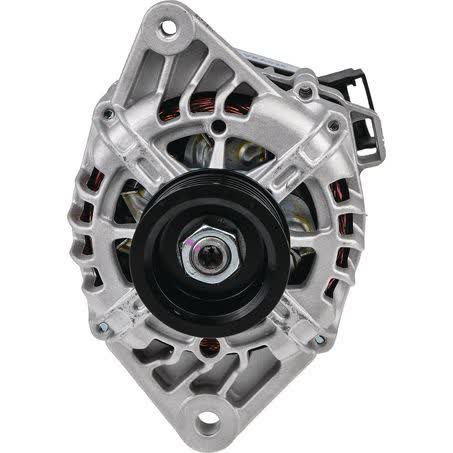

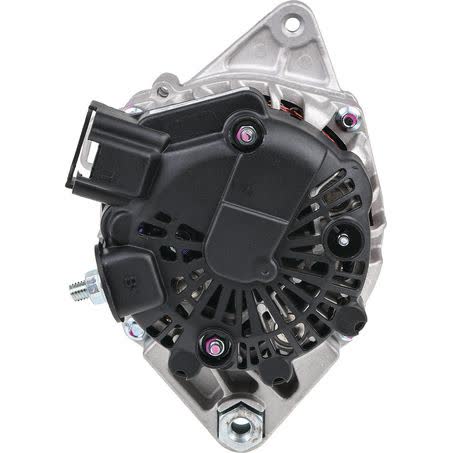

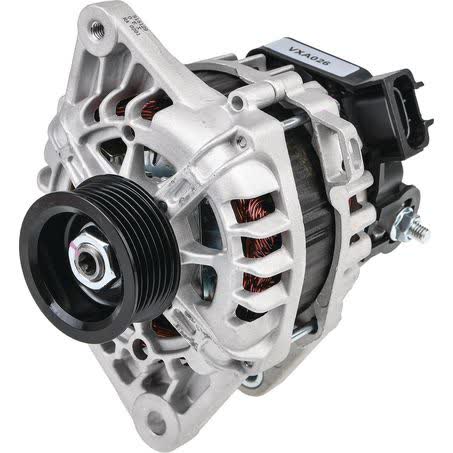

OEX Alternator 12V 90A Valeo VXA026

The OEX Alternator VXA026 is a new 12V, 90A unit made for Valeo applications and supplied as each. It uses an internal regulator, a 6 groove pulley, and a twin leg alternator mount, so it is important to check the mounting style and pulley details against the unit being replaced before ordering.

Key dimensions include 50mm inside mounting legs, a 169mm centre-to-centre mount spacing, an M10x1.25 / 10 pivot hole diameter, and an M8x1.25 adjusting hole diameter. The pulley outside diameter is 58mm, and the alternator weighs 4.72kg.

This part is listed with OEX part number VXA026 and pin code IR207. The note on the application is important: confirm by OE number due to different regulator functions. That makes the part number and original alternator details the safest way to verify selection.

OEX states the unit is made using OE components for fit and function, sourced from ISO9001 certified factories, and backed by a 3yr Passenger / 1yr Commercial warranty. Those points matter when replacing a charging system component, because the alternator must match both the electrical output and the physical mounting arrangement.

Key Features

• 12V alternator with 90A output
• New unit, supplied each
• Internal regulator
• 6 groove pulley
• Twin leg alternator mount
• Suits Valeo unit make

Specifications

• Voltage: 12V
• Power rating: 90A
• Type: Alternator
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 50mm
• Mount centre to centre: 169mm

Fitment guidance

• Fitment is listed against selected Hyundai, Kia, Mercedes-Benz and Peugeot applications.
• Known vehicle groups include Hyundai Accent, I20, I30, Tucson and Veloster; Kia Cee’d, Cerato Koup, Pro Cee’d, Rio and Soul; Mercedes-Benz Sprinter 5-T; and Peugeot 308.
• Model years shown in the application data include Hyundai Accent 2010 to 2019, Kia Cee’d 2007 to 2012, Kia Cerato Koup 2013 to 2016, Mercedes-Benz Sprinter 5-T 2006 to 2009, and Peugeot 308 2008 to 2014.
• Confirm the original alternator by OE number, regulator function, mount style and pulley details before fitting.

Application and Buying Notes

For this alternator, the most important checks are the OE number on the removed unit, the regulator function, and the physical mounting setup. The application note specifically says to confirm by OE number due to different regulator functions, which means matching only by vehicle model is not enough.

The electrical rating is 12V at 90A, so it is suited to replacing a like-for-like charging unit where that output is required. If the original alternator differs in voltage, output, pulley section, or mount arrangement, the unit may not be correct even if the vehicle appears in the application list.

The mounting dimensions matter just as much as the electrical side. This alternator has a twin leg mount, 50mm inside mounting legs, a 169mm centre-to-centre mount spacing, and M10x1.25 / 10 pivot and M8x1.25 adjusting holes. Those measurements should be checked against the removed alternator before purchase.

The 6 groove pulley with a 58mm outside diameter is another key checkpoint. If the original pulley profile or diameter differs, belt alignment and running compatibility may be affected. The safest approach is to compare the old unit, OE number, and the visible mount and pulley details side by side.

OEX lists this unit as new and made using OE components, with sourcing from ISO9001 certified factories. The warranty is 3yr Passenger / 1yr Commercial, but warranty cover does not replace the need to confirm correct application and installation before the part is fitted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA026 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 50mm, Pivot Hole Diameter M10x1.25 / 10, Pulley Outside Diameter 58mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA026, Brand OEX, Description OEX Alternator 12V 90A Valeo - See Note, Adjusting Hole Diameter M8x1.25, Pin Code IR207, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 90A Valeo - See Note. Part number VXA026 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA026, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using the OE number, regulator function, mounting style, pulley section, and the dimensions listed for part number VXA026 before ordering or fitting.

FAQ

What is the part number for this alternator?

The listed OEX part number is VXA026.

What voltage and amperage does it have?

It is a 12V alternator with a 90A power rating.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

It has an internal regulator.

What pulley does it use?

It has a 6 groove pulley with a 58mm outside diameter.

What should I check before buying?

Confirm the OE number, regulator function, twin leg mount arrangement, and the listed dimensions, especially the 169mm centre-to-centre mount spacing and the M10x1.25 / 10 pivot hole.
