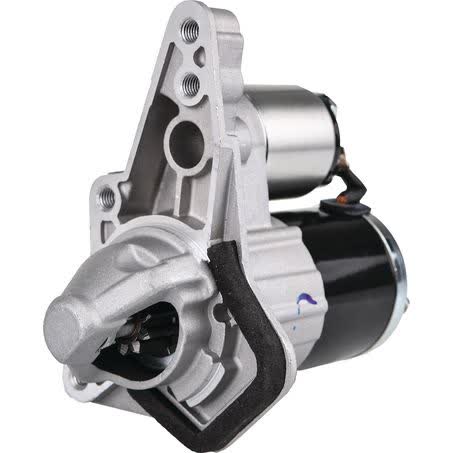

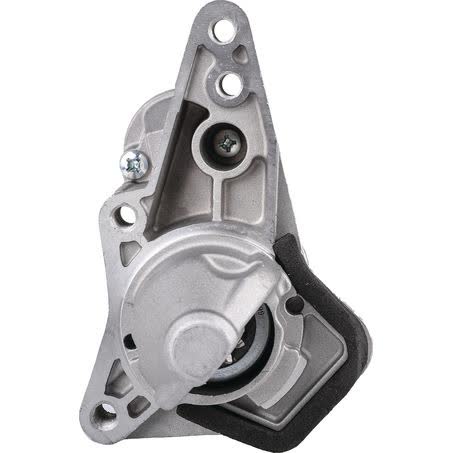

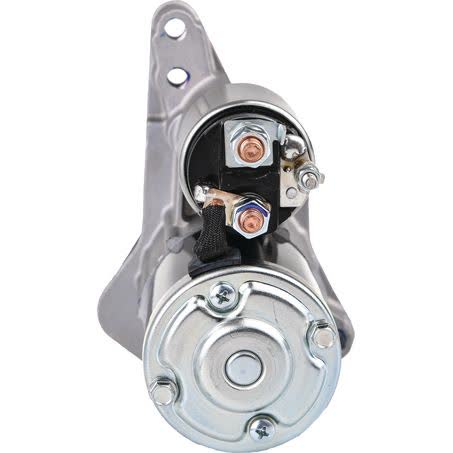

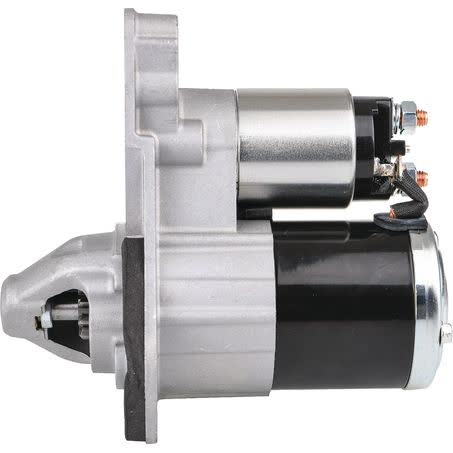

OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS2049

The OEX starter motor MXS2049 is a new 12V unit with 10 teeth, clockwise rotation, and a 1.4kW power rating. It is listed as Mitsubishi style, with a 4 hole starter mount and a dry clutch application, so the mounting pattern and drive configuration are important checks before purchase.

Key dimensions for identification include mount centres A 153mm, B 135mm and C 77mm, with a 10mm x 1.5 mounting hole diameter, 183mm overall length, 28mm pinion diameter, and 19mm pinion at rest. These measurements help confirm whether the starter matches the existing unit in the vehicle.

OEX lists this starter motor as part of its rotating electrical range, sourced from market leading original equipment manufacturers and aftermarket suppliers, and manufactured in ISO certified factories. The unit carries a 3 year passenger and 1 year commercial warranty, which gives useful context for buyers comparing replacement starter motors by application and duty cycle.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• 4 hole starter mount
• New unit

Specifications

• Part number: MXS2049
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.4kW
• Starter mount type: 4 hole

Fitment guidance

• NISSAN: JUKE, JUKE 2010, JUKE 2011, JUKE 2012, JUKE 2013, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number MXS2049, the 12V rating, 10 tooth pinion, and clockwise rotation with the starter currently fitted to the vehicle. The mount pattern matters as much as the electrical specification, and this unit uses a 4 hole starter mount with mount centres A 153mm, B 135mm and C 77mm.

The listed pinion diameter is 28mm and the pinion at rest measurement is 19mm, so those dimensions should be checked against the removed starter where possible. The mounting hole diameter is M10 x 1.5, and the overall length of 183mm can help confirm whether the replacement sits correctly in the available space.

This starter is described as Mitsubishi style and suits Mitsubishi units, but the fitment shown in the supplied data also references Nissan applications. That means you should confirm the exact vehicle application, engine setup and existing starter details before purchasing, rather than relying on make name alone.

The 1.4kW power rating and dry clutch designation are relevant when matching a replacement starter for the correct duty application. Passenger and commercial warranty periods differ at 3 years and 1 year respectively, so it is worth matching the intended use of the vehicle to the warranty terms as well as the physical fit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2049 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres B 135mm, Mount Hole Diameter M10x1.5, Overall Length 183mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Starter Mount Type 4 Hole.

Additional published details for cross-checking include Weight 2.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2049, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Mount Centres A 153mm, Mount Centres C 77mm, Number of Teeth 10, Pinion at Rest 19mm, Power Rating 1.4kW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2049 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2049, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011, NISSAN JUKE 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking the part number MXS2049, the 12V 10 tooth clockwise specification, the 4 hole mount pattern, and the exact application details on the vehicle before ordering. If any measurements or the mounting arrangement differ from the existing starter, do not assume it will install correctly.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2049. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as a new starter motor. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.

What mounting details should I check?

Check the 4 hole starter mount, mount centres A 153mm, B 135mm and C 77mm, and the M10 x 1.5 mounting hole diameter. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.

What warranty is listed?

OEX lists a 3 year warranty for passenger use and a 1 year warranty for commercial use. For this listing, part number MXS2049 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN JUKE, NISSAN JUKE 2010, NISSAN JUKE 2011. These details should still be checked against the original unit before ordering.
