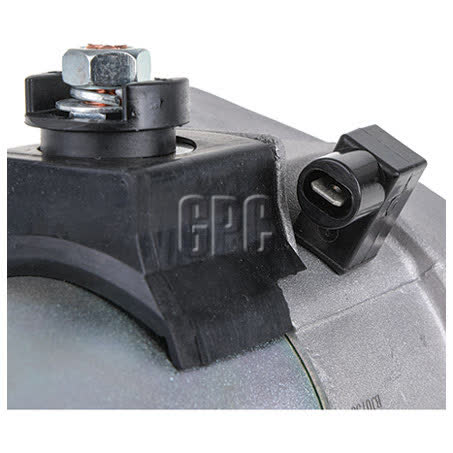

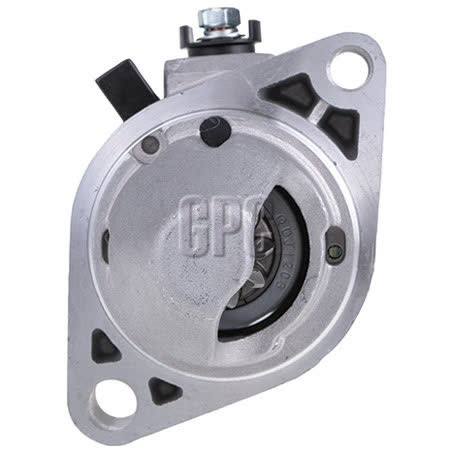

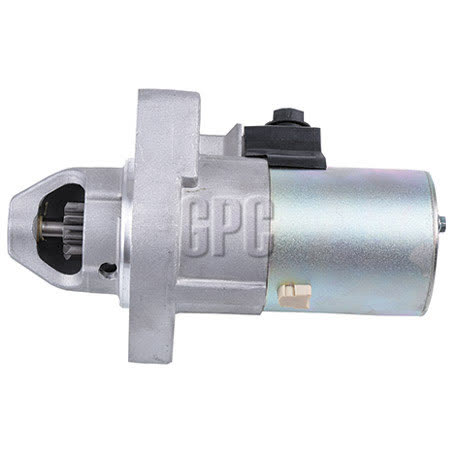

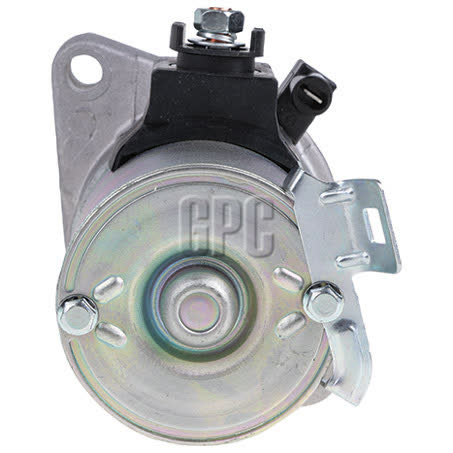

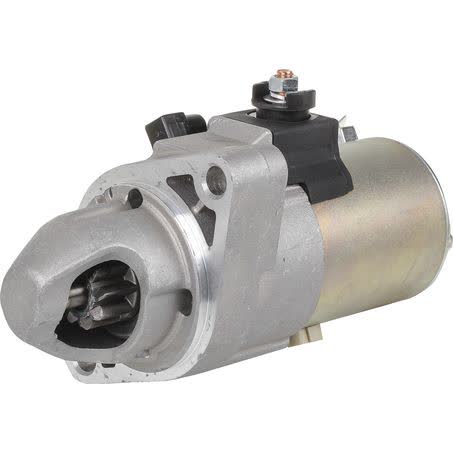

OEX Starter Motor 12V 9 Tooth CW Mitsubishi Style MXS818

The OEX MXS818 is a 12V starter motor in Mitsubishi style, built with a 9 tooth pinion, clockwise rotation and a 1.6kW power rating. It is listed as a new unit and supplied as an each item, with a 2 hole starter mount type and a 75mm flange diameter.

Key dimensions include 115mm mount centres A and B, 11 / 13.5mm mount hole diameter, a 33mm pinion diameter, 60mm nose cone length and 210mm overall length. The unit is noted as suiting Mitsuba applications.

OEX lists this starter motor with a 3 year passenger / 1 year commercial warranty. The brand notes also state that OEX products are sourced from ISO certified factories and from market leading original equipment manufacturers and aftermarket suppliers.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 1.6kW power rating
• New unit
• 2 hole starter mount type

Specifications

• Brand: OEX
• Part number: MXS818
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Pinion diameter: 33mm
• Mount centres A: 115mm

Fitment guidance

• Fitment should be confirmed against the listed part number MXS818 and the application details for the vehicle or starter unit.
• The supplied fitment preview names Honda Odyssey applications, including model years 2004 through 2013.
• Only use the fitment details if they match the exact vehicle, engine, and starter arrangement being replaced.
• Check the 2 hole mount pattern, 115mm mount centres, 11 / 13.5mm mount hole diameter and 75mm flange diameter before ordering.

Application and Buying Notes

When replacing a starter motor, matching the part number and physical dimensions matters as much as the vehicle name. This OEX unit is identified as MXS818, with 12V operation, 9 teeth, CW rotation and a 1.6kW rating, so it needs to align with the original starter specification and the existing mounting setup.

The listed measurements are practical checkpoints: 115mm mount centres A and B, 11 / 13.5mm mount hole diameter, 75mm flange diameter, 60mm nose cone length and 210mm overall length. If any of those figures differ from the old starter, the part should be checked carefully before fitment.

The note supplied with this starter highlights an important fault-finding point. Low voltage at the starter can cause the solenoid contacts to chatter and burn, so the battery condition and cables should be checked before fitting a replacement starter motor.

This unit is noted as suiting Mitsuba applications and is described as a Mitsubishi style starter motor. That makes the unit make, rotation, tooth count and mounting pattern especially important when comparing against the removed part.

The warranty listed is 3 years for passenger use and 1 year for commercial use. Warranty coverage is useful, but it does not replace the need to verify the application, mount type and electrical condition of the vehicle before installation.

If the existing starter has visible damage or the original part number is unreadable, use the mounting measurements, 12V specification, 9 tooth pinion and CW rotation as the main comparison points. Careful matching helps avoid unnecessary returns and installation delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS818 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 115mm, Mount Hole Diameter 11 / 13.5, Number of Teeth 9, Pinion Diameter 33mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 1 ROTATING ELECTRICAL, Part No. MXS818, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style - See Note, Flange Diameter 75mm, Mount Centres B 115mm, Nose Cone Length 60mm, Overall Length 210mm, Power Rating 1.6kW.

OEX Starter Motor 12V 9Th CW Mitsubishi Style - See Note. Part number MXS818 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS818, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA ODYSSEY, HONDA ODYSSEY 2004, HONDA ODYSSEY 2005, HONDA ODYSSEY 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using part number MXS818, the 12V specification, 9 tooth clockwise configuration and the stated mounting dimensions before purchase. If the vehicle or starter arrangement does not match the listed details, do not assume compatibility.

FAQ

What is the part number for this starter motor?

The part number listed is MXS818.

What voltage does this starter motor use?

It is a 12V starter motor.

What rotation is listed for this unit?

The rotation is clockwise, shown as CW.

How many teeth does the pinion have?

The pinion is listed with 9 teeth.

What vehicles are shown in the fitment preview?

The fitment preview names Honda Odyssey applications, including model years 2004 through 2013.

What should be checked before fitting this starter motor?

Check the battery condition and cables, and confirm the part number, 12V specification, 9 tooth pinion, CW rotation and mounting dimensions match the original unit.
