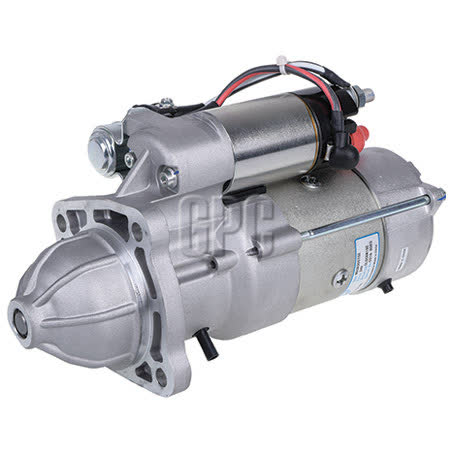

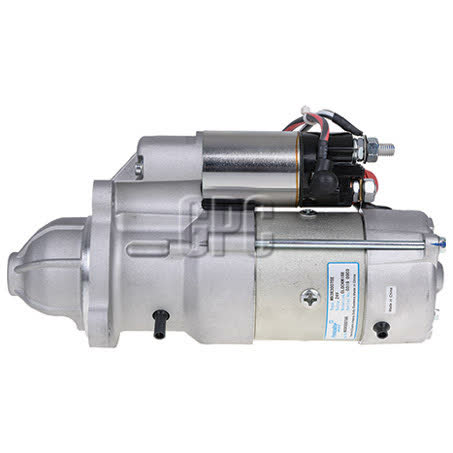

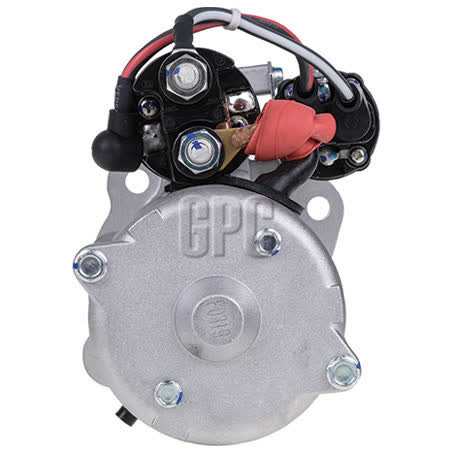

Prestolite Starter Motor 24V 10 Tooth CW M93R3007SE

The Prestolite Starter Motor M93R3007SE is a new 24V unit with a 10 tooth pinion and clockwise rotation. It is listed as a 6kW starter motor with a 3 hole mount type, SAE1 mount, and drive end housing offset 1.5mm, so the physical mounting and drive arrangement matter just as much as the electrical rating when matching it to an application.

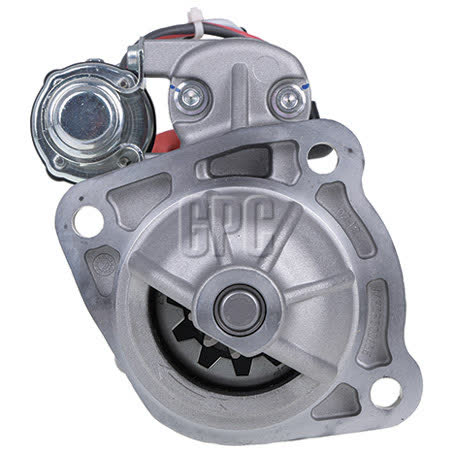

Key dimensions are supplied for checking against the existing starter: mount centres A 127mm, mount centres B 90mm, mount centres C 90mm, flange diameter 89mm, nose cone length 62mm, overall length 322mm, pinion diameter 38mm, and mount hole diameter 11.5mm. The pinion at rest measurement is 21mm, and the unit weighs 15.3kg.

This starter is described as a Prestolite unit under the rotating electrical product group, with OEM number M93407 shown and a warranty of one year. The stated feature is more torque and increased dependability, but the practical buying check is still the same: confirm the part number, voltage, mounting style, and tooth count before ordering.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• 6kW power rating
• 3 hole starter mount
• New unit

Specifications

• Brand: Prestolite
• Part No.: M93R3007SE
• OEM Number: M93407
• Voltage: 24V
• Power Rating: 6kW
• Number of Teeth: 10
• Rotation: CW
• Starter Mount Type: 3 hole

Verified fitment details

• LIUGONG
• LIUGONG 375
• LIUGONG 375 2008
• LIUGONG 766
• LIUGONG 766 2006
• LIUGONG 777
• LIUGONG 777 2007
• LIUGONG 835

Application and Buying Notes

Before fitting, compare the part number M93R3007SE and OEM number M93407 with the starter currently on the machine. The listed 24V electrical setup, 10 tooth pinion, and clockwise rotation need to match the replacement requirement exactly, because those details determine whether the starter will engage and operate correctly.

Physical fit is just as important as the electrical specification. Check the 3 hole mount type, SAE1 mount, mount centres A 127mm, B 90mm and C 90mm, plus the 89mm flange diameter and 11.5mm mount hole diameter. The 62mm nose cone length and 322mm overall length are also useful when comparing clearance around the bellhousing and adjacent components.

The drive end housing offset is listed at 1.5mm, which can matter when the starter location is tight or when the original unit has a matching offset arrangement. If the existing starter differs in mounting pattern, tooth count, or pinion diameter, do not assume interchange on appearance alone.

This is a new starter motor with a 6kW power rating and a stated weight of 15.3kg. Those figures help set expectations for application matching, but the safest buying decision is to verify all dimensional details against the current part and the machine application before purchase.

Where fitment is being checked against LIUGONG applications, use the exact model and model year where available. The listed applications include LIUGONG 375, 766, 777, 835, and 835 II variants, but the final confirmation should still be made against the mounted starter and the machine’s parts information.

If the machine uses a dry clutch arrangement and a Prestolite starter in this mounting style, the supplied data provides a sensible comparison point. Even so, the most reliable approach is to match the full combination of voltage, tooth count, rotation, mounting pattern, and lengths rather than relying on one specification alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M93R3007SE helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Nose Cone Length 62mm, Overall Length 322mm, Pinion Diameter 38mm, Rotation CW, Voltage 24.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, OEM Number M93407, Product Group 2 STARTER MOTORS, Part No. M93R3007SE, Brand PRESTOLITE, Description Prestolite Starter Motor 24V 10Th CW, Flange Diameter 89mm, Mount Centres B 90mm.

Prestolite Starter Motor 24V 10Th CW. Part number M93R3007SE should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M93R3007SE, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LIUGONG 375, LIUGONG 375 2008, LIUGONG 766, LIUGONG 766 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the part number M93R3007SE, OEM number M93407, 24V specification, 10 tooth clockwise rotation, and the mounting and dimensional measurements before ordering.

FAQ

What voltage is this starter motor?

It is a 24V starter motor.

What is the part number?

The part number is M93R3007SE.

What OEM number is listed?

The OEM number listed is M93407.

What rotation does this starter have?

It is clockwise rotation, shown as CW.

What are the key mounting details?

It has a 3 hole starter mount, SAE1 mount, mount centres A 127mm, B 90mm and C 90mm, with an 89mm flange diameter and 11.5mm mount hole diameter.

Which applications are listed?

Listed fitment includes LIUGONG, LIUGONG 375, LIUGONG 766, LIUGONG 777, LIUGONG 835, and LIUGONG 835 II variants, including some year-specific entries such as 375 2008, 766 2006, 777 2007, 835 2010, and 835 II 2008.
