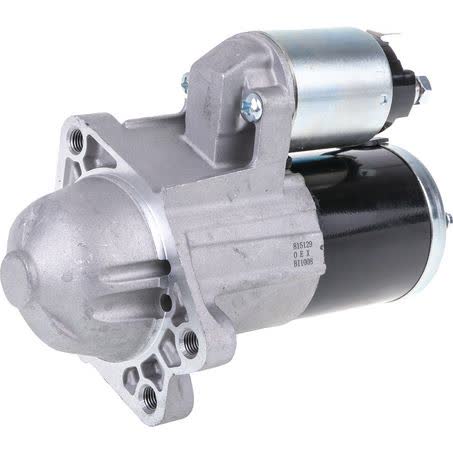

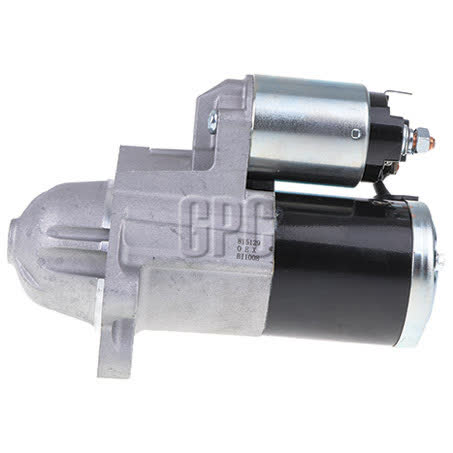

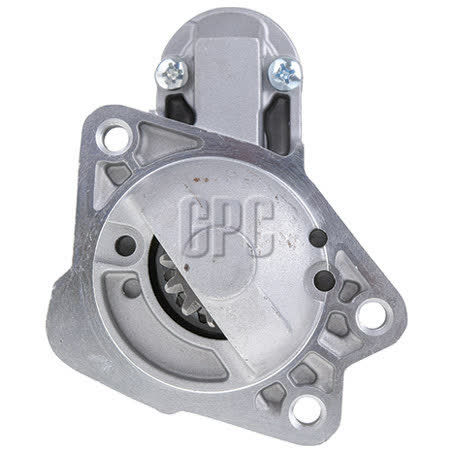

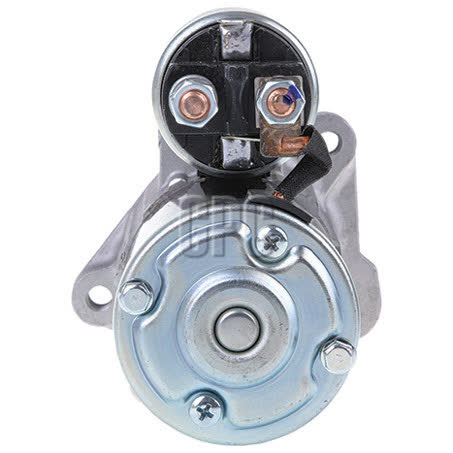

OEX Starter Motor 12V 13TH CW Mitsubishi Style MXS2052

This OEX starter motor is a 12V unit with 13 teeth, clockwise rotation, and a 1.4kW power rating. It is listed as a Mitsubishi style starter motor, with part number MXS2052, and it is supplied new rather than remanufactured.

Key physical dimensions include a 74mm flange diameter, 106mm mount centres A, 99mm mount centres B, 37mm mount centres C, a 48mm nose cone length, and an overall length of 205mm. The starter uses a 3 hole mount type, M10x1.25 mount hole diameter, and a 40mm pinion diameter.

Key Features

• 12V starter motor
• 13 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• 3 hole mount type

Specifications

• Brand: OEX
• Part No.: MXS2052
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 13
• Power rating: 1.4kW
• New / Reman.: New

Fitment guidance

• MAZDA: 2, 2 2007, 2 2008, 2 2009, 2 2010, plus other listed applications

Application and Buying Notes

When replacing a starter motor, the most reliable check is the OE number. This unit is intended to match OE number M000T36771 (M0T36771), and the note specifically says it will not interchange with MXS2040, which is linked to OE numbers M000T32771 (M0T32771). That distinction matters because the physical appearance can be similar while the mounting or internal specification differs.

The main dimensional checks for this starter are the 74mm flange diameter, 106mm / 99mm / 37mm mount centres, 48mm nose cone length, and 205mm overall length. It also uses a 3 hole mount with M10x1.25 mount holes. Those measurements should be compared against the original unit or the vehicle application data before purchase.

The rotation is clockwise, the unit is 12V, and the pinion has 13 teeth with a 40mm diameter. Those are not details to gloss over, because starter motor compatibility depends on the full combination of voltage, rotation, tooth count, mounting pattern, and nose length rather than one feature on its own.

This starter is listed as suitable for Mitsubishi, but no additional vehicle model detail is supplied here. If you are fitting to a specific vehicle, confirm the OE number on the old starter, compare the mounting measurements, and check the wiring and engagement arrangement before ordering. That is the safest way to avoid a mismatch.

The OEX listing includes a 3 year passenger and 1 year commercial warranty, and the product is described as new. Warranty terms are useful, but they do not replace fitment checks. The correct approach is to match the part number, OE number, and dimensions first, then use the warranty as a back-up for genuine defects rather than a compatibility decision point.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2052 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Mount Centres C 37mm, Nose Cone Length 48mm, Overall Length 205mm, Pinion Diameter 40mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2052, Brand OEX, Description OEX Starter Motor 12V 13Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Centres B 99mm, Mount Hole Diameter M10x1.25.

OEX Starter Motor 12V 13Th CW Mitsubishi Style. Part number MXS2052 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2052, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number MXS2052, OE number M000T36771 (M0T36771), and the listed mounting and dimensional details before ordering. The note states this unit does not interchange with MXS2040.

FAQ

What is the part number for this starter motor?

The part number is MXS2052. For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

Does this starter rotate clockwise or counter-clockwise?

It is listed as clockwise rotation (CW). For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What OE number must it match?

The note states it must match OE number M000T36771 (M0T36771). For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

Will it interchange with MXS2040?

No. The note says it will not interchange with MXS2040, which is listed against OE numbers M000T32771 (M0T32771). For this listing, part number MXS2052 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.
