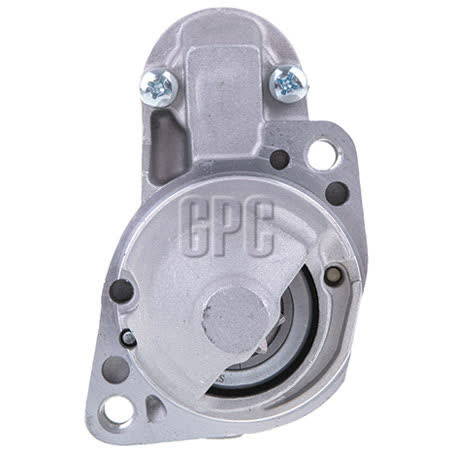

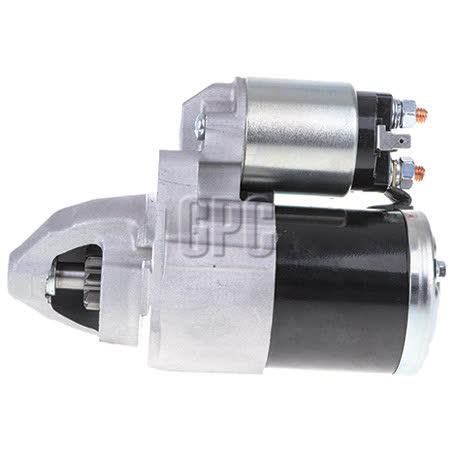

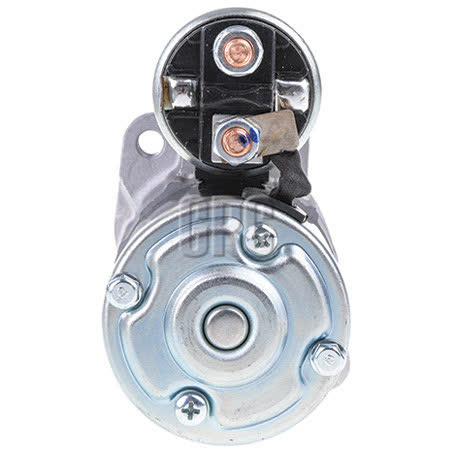

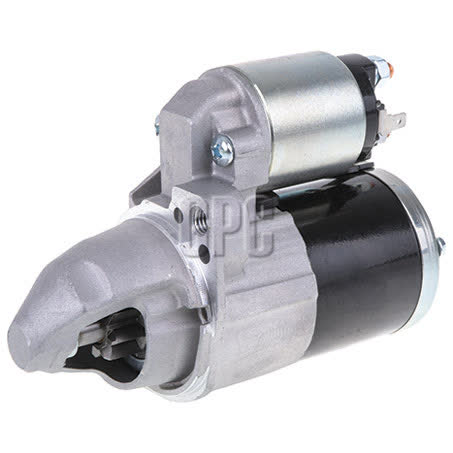

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS2053

The OEX starter motor listed here is a 12V unit with clockwise rotation, 8 teeth, and a 1.4kW power rating. It is a new starter motor under part number MXS2053, with a 2-hole starter mount and a 70mm flange diameter.

Key physical checks include an M10x1.5 mount hole diameter, 95mm mount centre-to-centre, 60mm nose cone length, and 182mm overall length. The pinion diameter is 28mm and the pinion at rest is 28mm, which are important points to confirm against the removed unit before ordering.

This OEX starter motor is listed for Mitsubishi-style applications and is supplied as an each unit. The product is backed by a 3 year passenger / 1 year commercial warranty, so it suits buyers who want a replacement starter with clear dimensional details and a defined part reference.

Key Features

• 12V starter motor
• Clockwise rotation
• 8-tooth pinion
• 1.4kW power rating
• New unit
• 2-hole starter mount

Specifications

• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole
• Mount hole diameter: M10x1.5
• Mount centre-to-centre: 95mm
• Flange diameter: 70mm

Fitment guidance

• Listed fitment information includes Chrysler Sebring, Dodge Avenger, Dodge Caliber, Jeep Compass, and Jeep Patriot applications.
• Sample application data includes Chrysler Sebring 2007, 2008, 2009, and 2010; Dodge Avenger 2007 through 2014; Dodge Caliber 2006 and 2007; Jeep Compass 2011 through 2017; and Jeep Patriot 2008 through 2010.
• Fitment appears to be application-specific, so the part number, mount pattern, and starter dimensions should still be checked against the vehicle before purchase.

Application and Buying Notes

When comparing this starter motor to the part already fitted to the vehicle, check the key identifiers first: OEX MXS2053, 12V, clockwise rotation, 8 teeth, and 2-hole mounting. The mount hole diameter is M10x1.5, and the mount centre-to-centre measurement is 95mm, so these dimensions should line up with the existing starter before the part is considered a match.

The overall length of 182mm, nose cone length of 60mm, flange diameter of 70mm, and pinion diameter of 28mm are all practical checkpoints for confirming physical compatibility. If the old starter differs in these measurements, or if the engine side mounting arrangement is not the same, the part should be rechecked before fitting.

This starter motor is a new unit with a 1.4kW power rating, which gives you a clear electrical reference when comparing replacement options. The product is described as Mitsubishi style, so the safest approach is to confirm the vehicle application against the listed fitment and to compare the removed unit rather than relying on appearance alone.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use, so it is worth matching the intended use of the vehicle to the warranty category. As with any starter motor, correct fit depends on the part number, rotation, mounting style, and physical dimensions being the same as the original component.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2053 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5, Number of Teeth 8, Pinion at Rest 28mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Mount Cnt to Cnt 95mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2053, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Nose Cone Length 60mm, Overall Length 182mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2053 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2053, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008, CHRYSLER SEBRING 2009, DODGE AVENGER, DODGE AVENGER 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number MXS2053, the 12V clockwise specification, and the listed mount and dimension details before ordering. Vehicle fitment should be verified against the application data and the starter removed from the vehicle.

FAQ

What is the part number for this starter motor?

The part number is MXS2053. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

What are the main mounting details?

It uses a 2-hole starter mount, M10x1.5 mount holes, and 95mm mount centre-to-centre. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2053 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.
