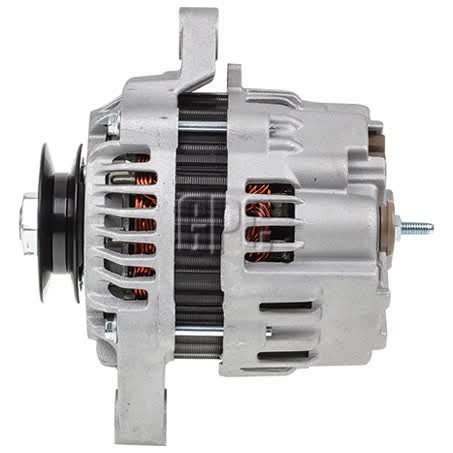

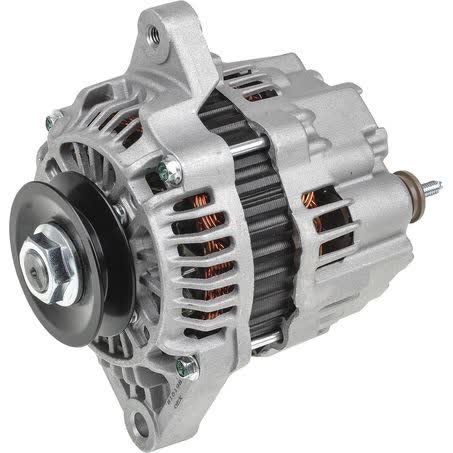

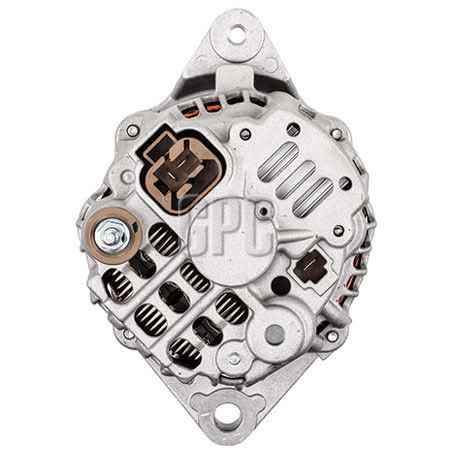

OEX Alternator 12V 50A Mitsubishi Style MXA9602

The OEX Alternator MXA9602 is a new 12V, 50A unit in Mitsubishi style, supplied as an alternator each. It suits Mitsubishi applications and uses an internal regulator, which is a key checkpoint when matching replacement charging components.

This alternator has a single leg mount, a 156mm mount centre-to-centre measurement, a 21mm mount leg thickness and a 10.5mm pivot hole diameter. The adjusting hole is M8x1.25, and the pulley is a B section with a 66mm outside diameter.

At 3.6kg, the unit is a practical replacement option where the original alternator matches the same mounting layout and electrical specification. OEX notes that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with stock sourced from ISO certified factories.

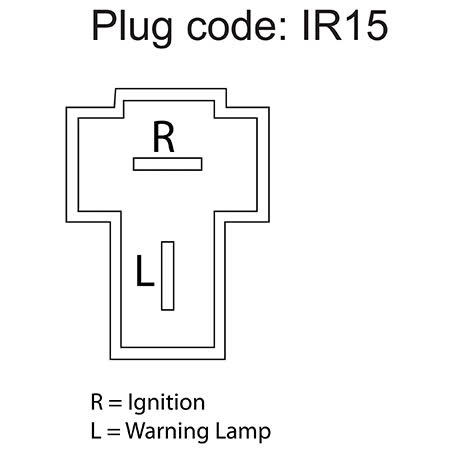

The listed part number is MXA9602 and the pin code is IR15. As with any alternator replacement, the important checks are the physical mount pattern, pulley style, voltage and output rating before ordering.

Key Features

• 12V alternator with 50A power rating
• New unit, supplied each
• Internal regulator type
• Single leg alternator mount
• Mitsubishi style application
• OEX product with nationwide warranty support

Specifications

• Brand: OEX
• Part No.: MXA9602
• Product type: Alternator
• Voltage: 12V
• Power rating: 50A
• New / reman.: New
• Regulator type: Internal
• Alternator mount: Single leg

Fitment guidance

• Suits Mitsubishi units only where the alternator match is confirmed by part number and mounting details.
• Mounting checks provided: single leg mount, 156mm mount centre-to-centre, 21mm mount leg thickness, 10.5mm pivot hole, M8x1.25 adjusting hole.
• Pulley checks provided: 66mm outside diameter, B section.
• Electrical checks provided: 12V system and 50A output.
• Part number MXA9602 and pin code IR15 should be matched before purchase.

Application and Buying Notes

Before buying, confirm the replacement alternator matches the vehicle’s charging system at 12V and 50A, because alternators with the same external shape can still differ in output, regulator type and connections. This unit uses an internal regulator, so that detail should align with the original component or the application requirements.

The physical mounting dimensions matter just as much as the electrical rating. This OEX alternator has a single leg mount, 156mm mount centre-to-centre, 21mm mount leg thickness, a 10.5mm pivot hole and an M8x1.25 adjusting hole. If any of those points differ from the unit being replaced, it may not bolt up correctly.

Pulley specification is another important check. The pulley on this alternator is 66mm outside diameter with a B section profile. If the belt type, groove profile or pulley size is different on the existing unit, the belt alignment and drive may not be correct.

The listed suit information is limited to Mitsubishi applications, with MXA9602 and pin code IR15 as the key identifiers. If you are working from the original alternator, matching the part number and the mounting measurements is the safest way to confirm the correct unit before fitting.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. That supports the quality position of the brand, but the fit still needs to be checked against the exact vehicle application and the existing alternator specifications.

Warranty support is listed as 3 years for passenger use and 1 year for commercial use. That makes the intended operating context relevant, so it is worth confirming how the vehicle is used before purchase, especially where the alternator is being fitted to a work vehicle or a vehicle that sees regular electrical load.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA9602 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 21mm, Pivot Hole Diameter 10.5, Pulley Outside Diameter 66mm, Regulator Type Internal, Voltage 12, Item Type Alternator, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA9602, Brand OEX, Description OEX Alternator 12V 50A Mitsubishi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR15, Power Rating (Amp) 50, Pulley Section B, Suits Unit Make Mitsubishi.

OEX Alternator 12V 50A Mitsubishi Style. Part number MXA9602 should be checked first. Listed voltage is 12. Listed output rating is 50. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA9602, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 50 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number MXA9602, pin code IR15, the Mitsubishi application details, and the listed mounting and pulley measurements before ordering.

FAQ

What is the part number for this alternator?

The listed part number is MXA9602.

What voltage and output does this alternator have?

It is a 12V alternator with a 50A power rating.

Is this a new or remanufactured unit?

This alternator is listed as new.

What regulator type does it use?

It uses an internal regulator.

What mounting details are listed for checking fitment?

The listed mounting details are single leg mount, 156mm mount centre-to-centre, 21mm mount leg thickness, 10.5mm pivot hole diameter and M8x1.25 adjusting hole diameter.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
