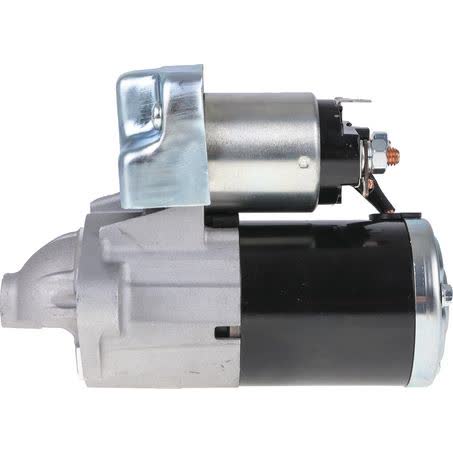

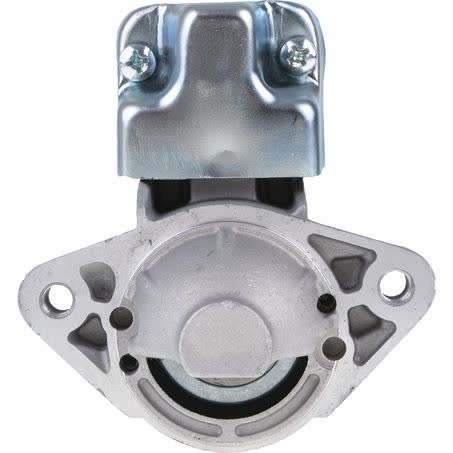

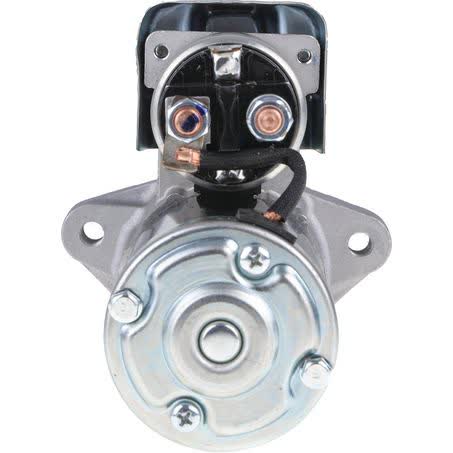

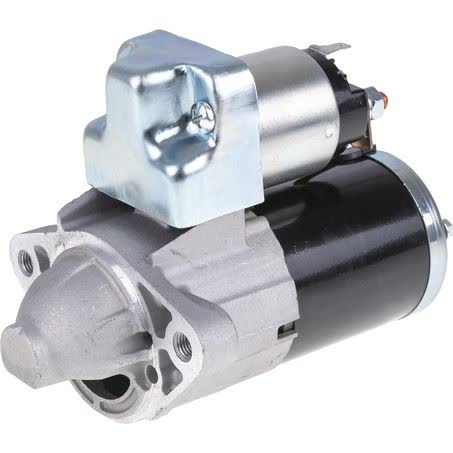

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS2057

The OEX Starter Motor MXS2057 is a 12V, clockwise rotating unit with 8 teeth and a 1.2kW power rating. It is listed as a new starter motor with a 2 hole starter mount type, 100mm mount centres A and B, and a 66mm flange diameter.

This unit is described as a Mitsubishi style starter motor, with a note that it is a short body version to suit the V6 Suzuki H27A engine. Key dimensions provided include an overall length of 188mm, nose cone length of 36mm, pinion diameter of 28mm and pinion at rest of 4mm.

For buyers matching a replacement starter, the part number MXS2057, 12V voltage, 8 tooth pinion and CW rotation are the most important identifiers to compare. These details matter as much as the physical dimensions, especially where starter body length, flange size and mounting layout need to line up with the vehicle application.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• 1.2kW power rating
• New unit
• 2 hole starter mount type

Specifications

• Part number: MXS2057
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 1.2kW
• Starter mount type: 2 hole

Confirmed application details

• Suzuki Grand Vitara
• Suzuki Grand Vitara (inc XL-7)
• Suzuki Grand Vitara (inc XL-7) 2001
• Suzuki Grand Vitara (inc XL-7) 2002
• Suzuki Grand Vitara (inc XL-7) 2003
• Suzuki Grand Vitara (inc XL-7) 2004
• Suzuki Grand Vitara (inc XL-7) 2005
• Suzuki Grand Vitara (inc XL-7) 2006

Application and Buying Notes

When checking this starter, the safest match points are the part number MXS2057, the 12V electrical specification, the 8 tooth pinion, and the clockwise (CW) rotation. The mounting details also need attention, because this unit is listed with a 2 hole mount, 100mm mount centres A and B, and M10 x 1.25 mount hole diameter.

The physical size is just as important as the electrical rating. This starter has a 66mm flange diameter, 188mm overall length, 36mm nose cone length and 28mm pinion diameter, with the pinion sitting 4mm at rest. If the original starter differs in body length, flange shape or nose cone dimensions, the replacement may not be suitable even where the engine family seems close.

Fitment is listed for Suzuki Grand Vitara and Suzuki Grand Vitara (inc XL-7) applications, including 2001 through 2008 references shown in the supplied data. The note also states this is a short body version to suit the V6 Suzuki H27A engine, so engine code and starter style should be checked carefully before ordering.

This is a new starter motor, not a remanufactured unit, and it carries a 3yr Passenger 1yr Commercial warranty. Warranty terms are useful, but they do not replace fitment checks. Confirm the starter mount type, pinion count, rotation, voltage and the vehicle application together before purchase.

If you are comparing against an original starter, use the existing unit’s physical measurements and connector layout as well as the part number. A Mitsubishi style unit can still vary in dimensions, so the listed 2 hole mount, 100mm centres and 188mm overall length should be matched against the vehicle’s original arrangement.

For commercial use, the warranty differs from passenger use, so it is worth noting how the vehicle is operated before deciding. The starter’s 1.2kW rating and dry configuration are part of the specification set and should be considered alongside the vehicle application and the existing starter dimensions.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2057 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 100mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 8, Pinion at Rest 4mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, Note Short body version to suit V6 Suzuki H27A engine..

Additional published details for cross-checking include Starter Mount Type 2 Hole, Product Group 2 STARTER MOTORS, Part No. MXS2057, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 66mm, Mount Centres B 100mm, Nose Cone Length 36mm, Overall Length 188mm.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2057 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2057, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number MXS2057, the 12V CW 8 tooth specification, the 2 hole mount with 100mm centres, and the listed Suzuki Grand Vitara / Grand Vitara (inc XL-7) application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2057.

What voltage and rotation does this starter motor have?

It is a 12V starter motor with clockwise (CW) rotation.

How many teeth does the pinion have?

The pinion has 8 teeth.

What vehicle application is listed for this starter?

The listed application includes Suzuki Grand Vitara and Suzuki Grand Vitara (inc XL-7), with year references shown from 2001 through 2008 in the supplied data.

Is this a new or remanufactured unit?

It is listed as new.

What warranty is provided?

The warranty listed is 3yr Passenger 1yr Commercial.
