OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS2058

The OEX starter motor MXS2058 is a new 12V unit with 10 teeth and clockwise rotation, built in Mitsubishi style for applications that match those mounting and engagement details. It is a pad mount starter with a 58mm flange diameter, 73mm mount centres, and a 28mm pinion diameter, so the physical dimensions matter just as much as the electrical side when checking replacement suitability.

This starter motor is rated at 1.4kW and suits a dry clutch application. It weighs 3.12kg, has an overall length of 224mm, and uses a 10mm mount hole diameter. Those figures are useful when comparing against the removed unit, especially where access is tight or where the original starter has a similar but not identical housing profile.

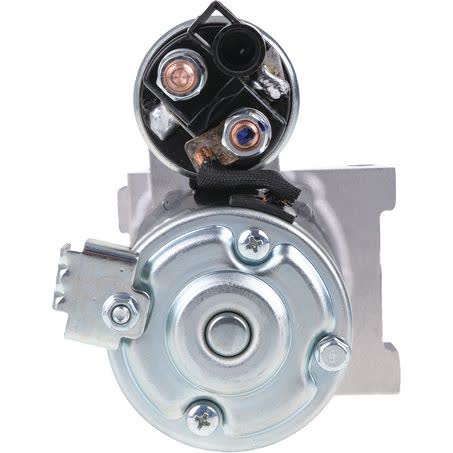

The solenoid has a moulded plug for the start terminal, and the note advises that for a standard blade terminal you should use MXS340 with 82mm mount thickness. That detail is important because the terminal style can affect installation even when the starter itself appears close on paper. The listed warranty is 3 years for passenger use and 1 year for commercial use.

Key Features

• OEX starter motor, part number MXS2058
• 12V, 10 tooth, clockwise rotation
• 1.4kW power rating
• New unit, not remanufactured
• Pad mount starter with 58mm flange diameter
• Suits Mitsubishi applications where the specs match

Specifications

• Voltage: 12V
• Power rating: 1.4kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: Pad
• Mount centres A: 73mm
• Flange diameter: 58mm
• Mount hole diameter: 10mm

Fitment guidance

• Suits unit make: Mitsubishi
• Fitment data provided includes applications across Chevrolet Camaro, Holden Calais, Holden Caprice, Holden Commodore, HSV ClubSport, HSV Grange, HSV GTS, HSV Maloo and HSV Senator families
• Model years shown in the provided application data include ranges such as Chevrolet Camaro 2009 to 2015, Holden Calais 2006 to 2016, and HSV ClubSport 2008 to 2015
• Confirm the removed starter against the 12V, 10 tooth, CW, pad mount, 58mm flange and 73mm mount centre details before ordering

Application and Buying Notes

When replacing a starter motor, the most reliable check is to compare the part number MXS2058 and the physical specifications with the unit coming off the vehicle. In this case, the key points are 12V operation, 10 teeth, clockwise rotation, a pad mount design, 58mm flange diameter and 73mm mount centres. If any one of those differs, the starter may not be the correct match even if the vehicle make seems similar.

The solenoid connection also needs attention. This starter has a moulded plug for the start terminal, and the note specifies that a standard blade terminal arrangement calls for MXS340 with 82mm mount thickness. That means terminal style and mounting thickness should be checked before purchase, not after the unit is on the bench.

For installation planning, the dimensions can matter as much as the electrical rating. The overall length is 224mm, the pinion diameter is 28mm, the pinion at rest is 9mm, and the mount hole diameter is 10mm. These measurements help confirm clearance, alignment and bolt fitment where the original starter sits close to other components.

The warranty coverage listed is 3 years for passenger use and 1 year for commercial use, so it is worth matching the application accurately and keeping the purchase record. If the vehicle is used commercially, the shorter warranty term should be taken into account when comparing replacement options.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2058 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 73mm, Number of Teeth 10, Pinion at Rest 9mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Note Solenoid has moulded plug for start terminal, for standard blade terminal use MXS340 82mm mount thickness, Starter Mount Type Pad.

Additional published details for cross-checking include Weight 3.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2058, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 58mm, Mount Hole Diameter 10, Overall Length 224mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2058 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2058, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by checking the part number MXS2058, the 12V 10 tooth clockwise specification, pad mount style, and all measured dimensions against the original unit and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2058.

Is this starter motor new or remanufactured?

It is listed as new.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 10 teeth.

What mounting details are listed?

It is a pad mount starter with 73mm mount centres, a 58mm flange diameter and a 10mm mount hole diameter.

Does the listing mention any terminal or solenoid detail?

Yes. The solenoid has a moulded plug for the start terminal, and the note states that a standard blade terminal uses MXS340 with 82mm mount thickness.
