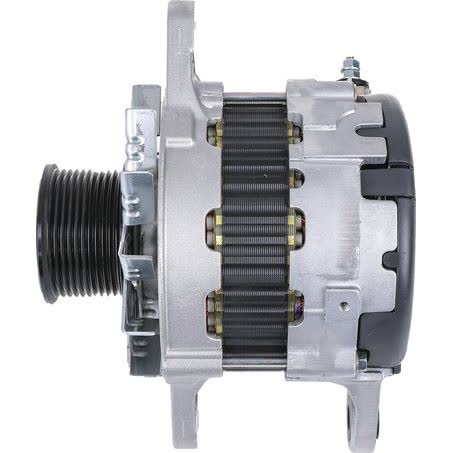

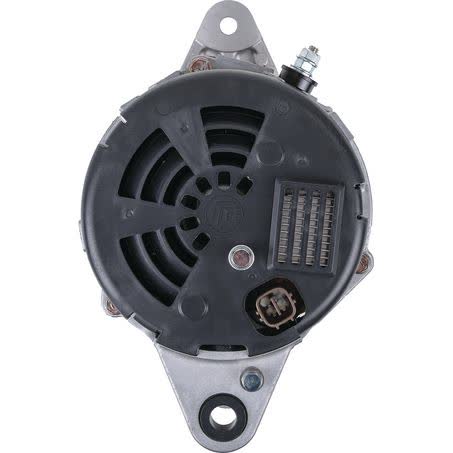

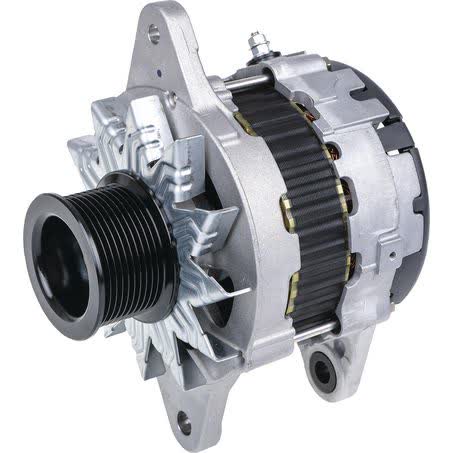

OEX Alternator 24V 60A Sawafuji Style SXA730

The OEX Alternator SXA730 is a new 24V, 60A alternator in Sawafuji style, supplied as an OE product from an ISO standards approved company. It is listed as a twin leg alternator with internal regulator, and it uses a 10 groove pulley with a 70mm outside diameter.

Key mounting dimensions are provided for checking before purchase: inside mounting legs are 86mm, mount centre to centre is 220mm, the adjusting hole diameter is 10.5mm, and the pivot hole diameter is 14mm. Those measurements matter when matching the alternator to the existing bracket and belt arrangement.

This unit is identified as part number SXA730 and is described as genuine. It is a 24V alternator with a 60 amp output, weighing 9.6kg, and it is intended for applications that suit the Sawafuji unit make. As with any charging system component, the part number and physical dimensions should be confirmed against the vehicle before ordering.

Key Features

• New alternator
• 24V, 60A output
• Sawafuji style
• Internal regulator
• Twin leg mount
• 10 groove pulley

Specifications

• Brand: OEX
• Part number: SXA730
• Product type: Alternator
• Voltage: 24V
• Amperage: 60A
• Mount type: Twin leg
• Inside mounting legs: 86mm
• Mount centre to centre: 220mm

Known application guidance

• Hino 500 Series
• Hino 500 Series 2008
• Hino 500 Series 2009
• Hino 500 Series 2010
• Hino 500 Series 2011
• Hino 500 Series 2012
• Hino 500 Series 2013
• Hino 500 Series 2014

Application and Buying Notes

Before ordering, check the alternator part number SXA730 against the existing unit and compare the 24V specification, 60A output, and Sawafuji style details. The listed fitment information points to Hino 500 Series applications, but the exact vehicle and charging setup still need to match the alternator mounting and pulley arrangement.

The mounting dimensions are often the deciding factors on this type of replacement. Confirm the twin leg mount, 86mm inside mounting legs, 220mm mount centre to centre, 10.5mm adjusting hole diameter, and 14mm pivot hole diameter against the vehicle brackets. A mismatch in any one of these measurements can stop the alternator from lining up correctly.

Pulley details also need attention. This unit has a 10 groove pulley with a 70mm outside diameter, so the belt profile and alignment need to suit the vehicle already fitted. The alternator also uses an internal regulator, which should be checked against the charging system arrangement in the vehicle before purchase.

For buyers comparing options, the listed warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail does not replace fitment checking, but it does help set expectations for how the unit is supplied. The unit is new, weighs 9.6kg, and is described as a genuine OE product sourced from an ISO standards approved company.

If you are replacing an alternator in a working vehicle, the safest approach is to verify the current unit by part number first, then confirm the mounting points, pulley section, voltage, and amperage. Matching those details is the most practical way to reduce the chance of ordering the wrong component for the charging system.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXA730 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 86mm, Power Rating (Amp) 60, Pulley Section 10 Groove, Suits Unit Make Sawafuji, Note Genuine, Mount Cnt to Cnt 220mm, Weight 9.6kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. SXA730, Brand OEX, Description OEX Alternator 24V 60A Sawafuji Style, Adjusting Hole Diameter 10.5, Pivot Hole Diameter 14, Pulley Outside Diameter 70mm, Regulator Type Internal, Voltage 24, Alternator Mount Twin Leg.

OEX Alternator 24V 60A Sawafuji Style. Part number SXA730 should be checked first. Listed voltage is 24. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number SXA730, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HINO 500 SERIES, HINO 500 SERIES 2008, HINO 500 SERIES 2009, HINO 500 SERIES 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number SXA730, the 24V 60A specification, Sawafuji style application, and the listed mounting and pulley measurements against the vehicle or the removed alternator before buying.

FAQ

What is the part number for this alternator?

The part number is SXA730.

What voltage and amperage does this alternator have?

It is a 24V alternator with a 60A output.

What type of regulator does it use?

It uses an internal regulator.

What mounting style is listed?

It is listed as a twin leg alternator.

What pulley details are provided?

It has a 10 groove pulley with a 70mm outside diameter.

Which vehicles are listed in the fitment information?

The fitment information lists Hino 500 Series applications, including model years 2008 through 2017.
