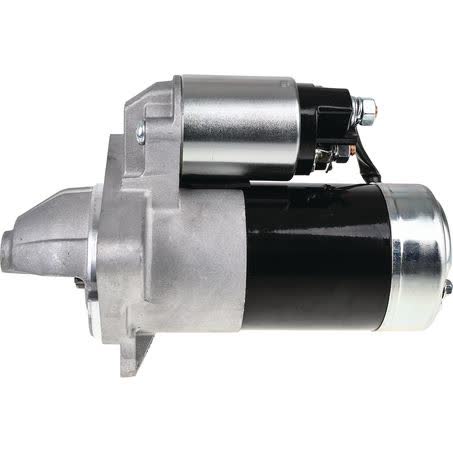

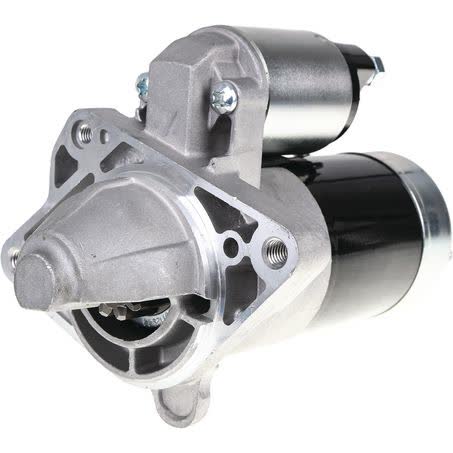

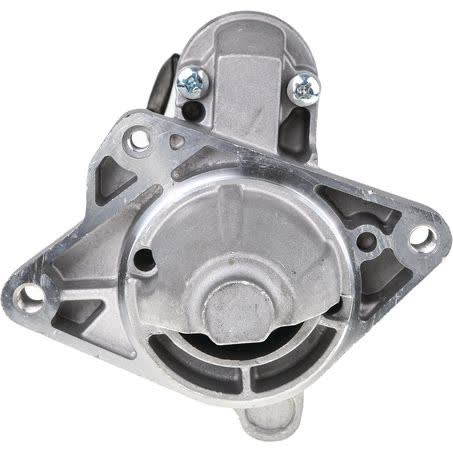

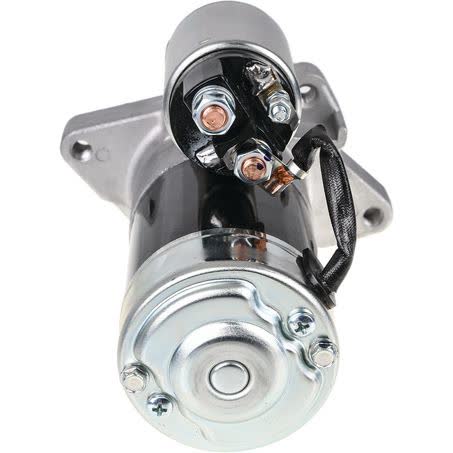

OEX Starter Motor 12V 11T CW Mitsubishi Style MXS2060

The OEX Starter Motor MXS2060 is a new 12V unit with 11 teeth and clockwise rotation, listed in Mitsubishi style and built as a starter motor for rotating electrical applications. Key physical checks include a 221mm overall length, 76mm flange diameter, 3-hole starter mount type, and mount hole sizing of M10 x2 / M8 x 1.25.

This unit is rated at 2.2kW and weighs 3.62kg, with a pinion diameter of 34mm and pinion at rest measurement of 14mm. The mount centres are 135mm, 102mm, and 67mm, which are the sort of measurements that matter when confirming the starter will physically suit the vehicle before purchase.

OEX states this product is sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. It is backed by a 3yr passenger / 1yr commercial warranty, which gives buyers a clear warranty reference when comparing replacement starter motors for Mitsubishi unit applications.

Key Features

• New 12V starter motor
• 11-tooth pinion
• Clockwise rotation
• 2.2kW power rating
• 3-hole starter mount type
• Mitsubishi style application

Specifications

• Part number: MXS2060
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2.2kW
• New / remanufactured: New

Fitment guidance

• Supported fitment family includes Mitsubishi style applications
• Fitment information supplied also references Nissan and Renault applications in the provided application data
• Nissan examples shown include Navara and X-Trail
• Renault examples shown include Koleos, Laguna, Latitude, Master, Megane, and Trafic
• The provided note states 10th and 11th units are interchangeable

Application and Buying Notes

Before ordering, match the part number MXS2060 and confirm the starter’s key dimensions against the removed unit: 12V, 11 teeth, clockwise rotation, 2.2kW, 221mm overall length, and 76mm flange diameter. Those measurements are the most useful practical checks when comparing this starter motor to the one already fitted.

The mount pattern is just as important as the electrical rating. This unit uses a 3-hole starter mount type with mount centres of 135mm, 102mm, and 67mm, plus mount hole diameter listed as M10 x2 / M8 x 1.25. If these points do not line up with the vehicle or the old starter, it should not be treated as a direct match.

The pinion details also need attention when verifying replacement. This starter is listed with 11 teeth, a 34mm pinion diameter, and 14mm pinion at rest, which are all relevant to engagement and physical clearance. The note that 10th and 11th units are interchangeable may help in comparison work, but the full application still needs to be checked carefully.

Fitment information provided references Nissan and Renault applications as well as Mitsubishi style use, so buyers should use the exact part number, the vehicle application details, and the measured mounting points together. That is the safest way to confirm compatibility on a starter motor rather than relying on appearance alone.

For commercial use, the warranty is listed as 1 year, while passenger use carries 3 years. If the starter is being fitted to a vehicle used in a mixed or business setting, it is worth confirming how the warranty applies before finalising the order so there is no confusion after installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2060 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 135mm, Mount Centres C 67mm, Number of Teeth 11, Pinion at Rest 14mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, Note 10th and 11th units are interchangeable.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 3.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2060, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 76mm, Mount Centres B 102mm, Mount Hole Diameter M10 x2 / M8 x 1.25, Overall Length 221mm.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2060 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2060, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number MXS2060, the 12V CW 11-tooth specification, and the full mounting dimensions before purchase. Do not rely on the Mitsubishi style description alone, as the final compatibility check should be made against the removed starter and the vehicle application details.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What is the voltage and rotation of this starter motor?

The unit is 12V and clockwise rotation (CW).

How many teeth does the pinion have?

The starter is listed with 11 teeth.

What are the key mounting measurements?

The listed mount centres are 135mm, 102mm, and 67mm, with a 3-hole starter mount type and mount hole diameter of M10 x2 / M8 x 1.25.

What warranty is provided?

The warranty is listed as 3yr Passenger 1yr Commercial.

Which vehicles does it fit?

The provided application data references Mitsubishi style use and also includes Nissan and Renault application groups, including Navara, X-Trail, Koleos, Laguna, Latitude, Master, Megane, and Trafic. Final fitment should still be confirmed against part number MXS2060 and the measured starter dimensions.
