OEX Alternator 12V 130A Valeo Style VXA031

The OEX Alternator VXA031 is a 12V, 130A replacement alternator in Valeo style, supplied as a new unit with an internal regulator. It suits Valeo applications and uses a twin leg mount, with a 5 groove pulley to match the specified drive setup.

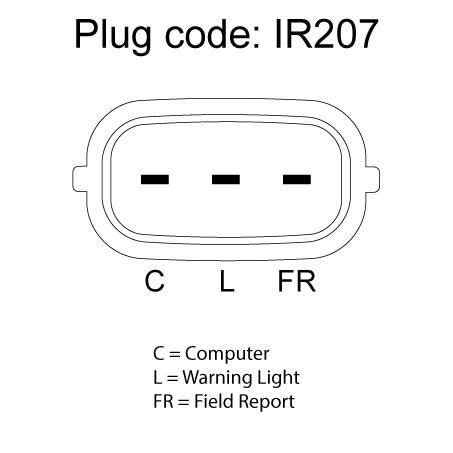

This alternator is listed as 130 amp and has a pin code of IR207. Key physical details include a 57mm pulley outside diameter, 51mm inside mounting legs, a pivot hole diameter of M10 x 1.25 / 10.5, and a mount centre to centre measurement of 163mm.

OEX positions this range as a quality aftermarket option backed by a comprehensive warranty. For buyers comparing replacements, the critical checks here are the part number VXA031, the Valeo style fitment, the 12V system, and the mounting and pulley dimensions before ordering.

Key Features

• 12V alternator with 130A output
• Valeo style replacement
• New unit, not remanufactured
• Internal regulator
• 5 groove pulley
• Twin leg alternator mount

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 130A
• Unit of measure: Each
• Suits unit make: Valeo
• Regulator type: Internal
• Alternator mount: Twin leg

Known fitment references

• Hyundai i40
• Hyundai i40 2011
• Hyundai i40 2012
• Hyundai i40 2013
• Hyundai i40 2014
• Hyundai i40 2015
• Hyundai i40 2016
• Hyundai i40 2017

Application and Buying Notes

Before ordering, confirm the existing alternator matches VXA031 or the supplied Valeo style application, because alternator fitment depends on the unit make, pulley configuration, and mounting dimensions. This unit is 12V with a 130A output, so it should only be considered where the vehicle’s electrical system and original alternator specification align with those details.

The mounting dimensions matter just as much as the electrical rating. Check the twin leg mount, 51mm inside mounting legs, M10 x 1.25 / 10.5 pivot hole diameter, and 163mm mount centre to centre against the unit being replaced. A pulley mismatch can also stop a correct installation, so compare the 5 groove pulley and 57mm outside diameter before purchase.

This alternator is a new OEX unit and includes an internal regulator, which is useful to verify if the existing setup uses the same regulator arrangement. The listed weight is 6.3kg, and while that is not a fitment rule by itself, it can help when comparing the replacement against the removed part.

The fitment references provided point to Hyundai i40 applications across 2011 to 2018, but the safest approach is still to match the vehicle application with the part number and the physical measurements. If the current alternator differs in mount style, pulley section, or connector arrangement, pause and check before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA031 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Pin Code IR207, Power Rating (Amp) 130, Pulley Section 5 Groove, Suits Unit Make Valeo, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA031, Brand OEX, Description OEX Alternator 12V 130A Valeo Style, Inside Mounting Legs 51mm, Pivot Hole Diameter M10 x 1.25 / 10.5, Pulley Outside Diameter 57mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 163mm.

OEX Alternator 12V 130A Valeo Style. Part number VXA031 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA031, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number VXA031, Valeo style application details, 12V system requirement, 130A output, and the listed mounting and pulley measurements against the vehicle and the removed alternator before ordering.

FAQ

Is this alternator new or remanufactured?

It is listed as a new alternator, not remanufactured. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with a 130A power rating. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It uses an internal regulator. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.

What mount style is listed?

The alternator is listed with a twin leg mount. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.

What pulley setup does it have?

It has a 5 groove pulley with a 57mm outside diameter. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.

What vehicles are referenced in the fitment information?

The fitment references provided include Hyundai i40 applications from 2011 through 2018. Final fitment should still be confirmed against part number VXA031 and the physical measurements. For this listing, part number VXA031 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HYUNDAI I40, HYUNDAI I40 2011, HYUNDAI I40 2012. These details should still be checked against the original unit before ordering.
