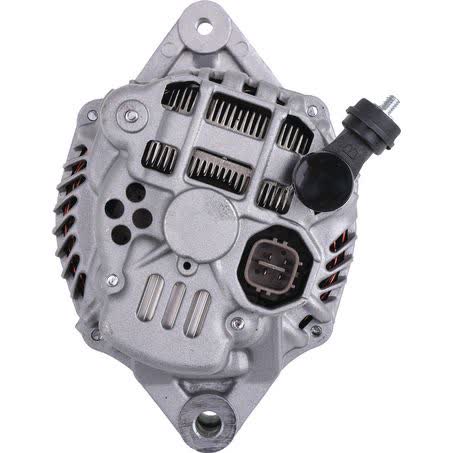

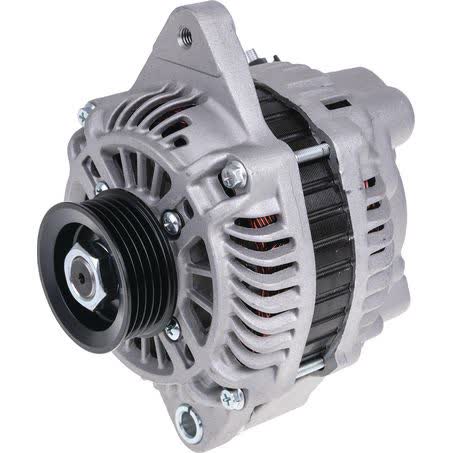

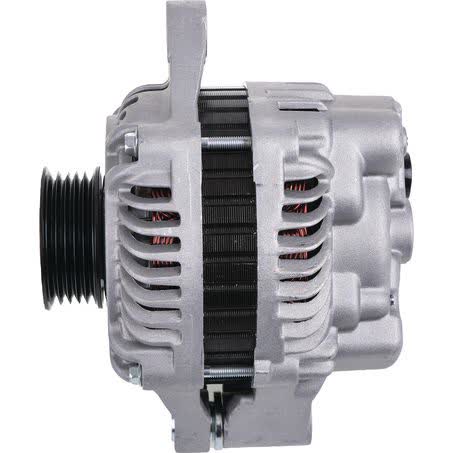

OEX Alternator 12V 80A Mitsubishi Style MXA2076

The OEX Alternator MXA2076 is a new 12V, 80A unit in Mitsubishi style, supplied as a single-leg alternator with an internal regulator. It is listed under OEX and suits Mitsubishi applications, with a 5 groove pulley and a pulley outside diameter of 55mm.

Key physical details include a 58mm mount leg thickness, 164mm mount centre-to-centre measurement, 10mm pivot hole diameter, and M8x1.25 adjusting hole. These measurements are the practical points to check against the existing unit before ordering, especially where the alternator bracket or mounting ears need to match exactly.

This alternator weighs 4.64kg and is identified by part number MXA2076. The warranty listed is 3 years for passenger use and 1 year for commercial use, which makes the application and duty cycle worth confirming before purchase.

Key Features

• New OEX alternator
• 12V, 80A output
• Mitsubishi style unit
• Internal regulator
• Single-leg alternator mount
• 5 groove pulley

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 80A
• Part No.: MXA2076
• Regulator type: Internal
• Alternator mount: Single leg
• Pulley section: 5 groove

Fitment guidance

• Listed as suiting Mitsubishi applications
• Fitment data provided also references Suzuki, including Grand Vitara, Grand Vitara (inc XL-7), Swift and SX4 applications
• The fitment preview includes Suzuki Grand Vitara and Grand Vitara (inc XL-7) across multiple years
• Confirm the existing alternator part number and all mounting measurements before ordering

Application and Buying Notes

For the safest match, compare the existing alternator to part number MXA2076 and check the mounting dimensions first: 58mm mount leg thickness, 164mm mount centre-to-centre, 10mm pivot hole diameter, and M8x1.25 adjusting hole. These are the details that usually determine whether the unit bolts up correctly.

The alternator is 12V with an 80A output and an internal regulator, so it needs to suit the vehicle’s electrical system and charging setup. The 5 groove pulley and 55mm pulley outside diameter also need to match the belt arrangement already fitted to the vehicle.

Because fitment information supplied for this listing includes Mitsubishi applications and also references several Suzuki models, it is important not to assume interchangeability by make alone. Check the vehicle application, the old unit’s part number, the pulley style, and the mounting layout before committing to the purchase.

This is a new alternator, not a remanufactured unit. At 4.64kg, it is a substantial rotating electrical component, so careful comparison with the original unit is still the best way to avoid unnecessary downtime or returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 164mm, Weight 4.64kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA2076, Brand OEX, Description OEX Alternator 12V 80A Mitsubishi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR43, Power Rating (Amp) 80, Pulley Section 5 Groove, Suits Unit Make Mitsubishi, Alternator Mount Single Leg.

OEX Alternator 12V 80A Mitsubishi Style. Part number MXA2076 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using the part number MXA2076, the listed mounting measurements, pulley details, and the vehicle application before ordering. If the existing alternator differs in regulator type, mount style, or pulley setup, it may not be a direct replacement.

FAQ

What is the part number for this alternator?

The part number is MXA2076. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with an 80A power rating. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It has an internal regulator. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.

What pulley setup does it use?

It uses a 5 groove pulley with a 55mm outside diameter. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Confirm the part number MXA2076, the vehicle application, and the key mounting measurements: 58mm mount leg thickness, 164mm mount centre-to-centre, 10mm pivot hole diameter, and M8x1.25 adjusting hole. For this listing, part number MXA2076 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include SUZUKI GRAND VITARA, SUZUKI GRAND VITARA (INC XL-7), SUZUKI GRAND VITARA (INC XL-7) 1998. These details should still be checked against the original unit before ordering.
