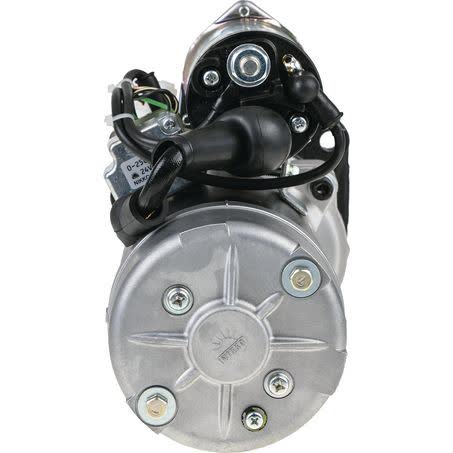

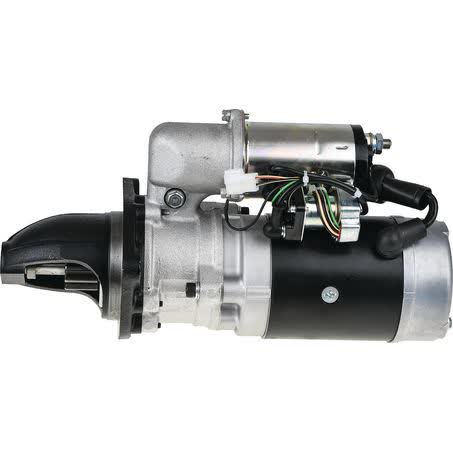

Nikko Starter Motor 24V 11 Tooth CW NXS9726

The Nikko Starter Motor NXS9726 is a new 24V unit with 11 teeth, clockwise rotation, and a 7.5kW power rating. It is listed as a 3 hole starter mount type, with a 100mm flange diameter, 108mm nose cone length, and 300mm overall length, so physical dimensions and mounting style are key checks before purchase.

This starter motor suits Nikko applications and is described as built to withstand harsh environments. It weighs 18kg, uses a 13mm mount hole diameter, and has a pinion diameter of 46mm with a pinion at rest measurement of 51mm. Those details matter when matching the starter to the original unit already on the vehicle or equipment.

The unit is supplied as new, sold each, and carries a one year warranty. Voltage is 24V, rotation is CW, and it is noted as suitable for wet or dry clutch use, so it is important to confirm the original starter specifications rather than relying on appearance alone.

Key Features

• New 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 7.5kW power rating
• 3 hole starter mount
• Built to withstand harsh environments

Specifications

• Part No.: NXS9726
• Brand: Nikko
• Product type: Starter Motor
• Voltage: 24V
• Power rating: 7.5kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Application and Buying Notes

Before ordering, compare the part number NXS9726, the 24V rating, and the 11 tooth CW configuration against the starter currently fitted. Starter motors are often close in appearance but differ in tooth count, rotation, flange size, and mounting pattern, so those details need to line up exactly for a proper install.

The listed 3 hole mount type, 13mm mount hole diameter, 100mm flange diameter, 108mm nose cone length, and 300mm overall length are all useful checkpoints when confirming interchange. If any of those dimensions differ from the removed unit, the starter may not seat correctly or may not engage the ring gear as intended.

The 7.5kW power rating and 46mm pinion diameter give a clear indication of the unit’s specification, but they should be matched to the application rather than used on their own as a fitment guide. The starter is identified as suitable for Nikko units and for wet or dry clutch use, so application verification remains important even where the electrical and physical measurements appear close.

This is a 24V starter motor sold individually, not as a kit. If you are replacing an existing unit, checking the old starter’s label, tooth count, mounting style, and overall dimensions will reduce the risk of delays and incorrect ordering. When in doubt, compare against the original part number and the installed unit before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number NXS9726 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 13, Number of Teeth 11, Pinion at Rest 51mm, Power Rating 7.5kW, Suits Unit Make Nikko, Item Type Starter Motor, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Weight 18kg, Product Group 1 ROTATING ELECTRICAL, Part No. NXS9726, Brand NIKKO, Description Nikko Starter Motor 24V 11Th CW, Flange Diameter 100mm, Nose Cone Length 108mm, Overall Length 300mm, Pinion Diameter 46mm, Rotation CW.

Nikko Starter Motor 24V 11Th CW. Part number NXS9726 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number NXS9726, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Please confirm compatibility using part number NXS9726, the 24V 11 tooth clockwise configuration, and the listed mounting and dimensional details before ordering.

FAQ

What is the part number for this starter motor?

The part number is NXS9726. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

Is this starter motor 24 volt?

Yes. It is specified as 24V. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as clockwise rotation, or CW. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What warranty is listed?

A one year warranty is listed for this starter motor. For this listing, part number NXS9726 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.
