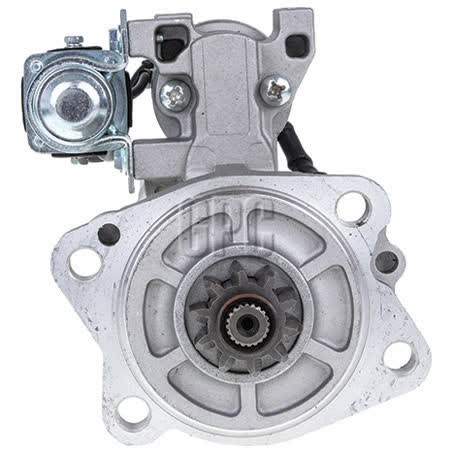

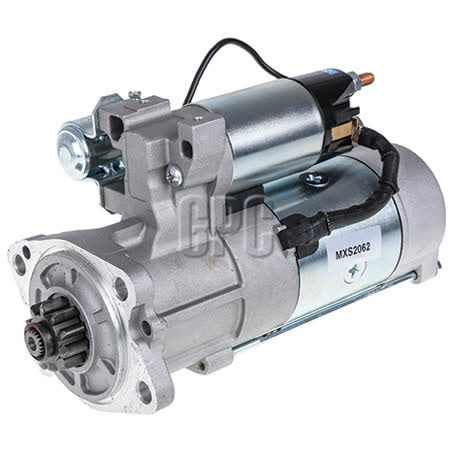

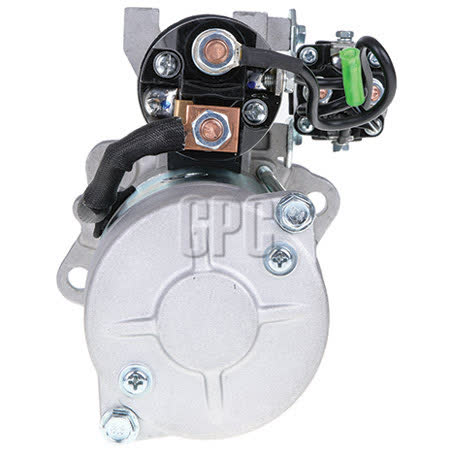

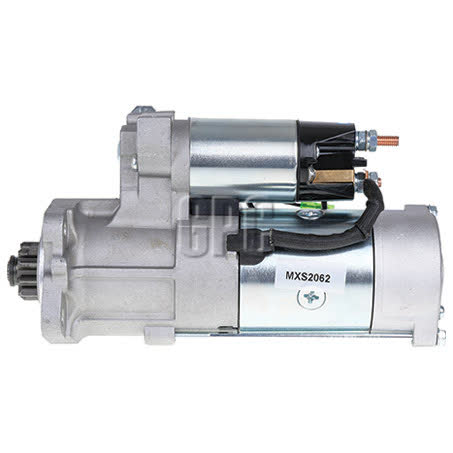

OEX Starter Motor 12V 10T CW Mitsubishi Style MXS2062

The OEX Starter Motor MXS2062 is a 12V unit with 10 teeth and clockwise rotation, listed as Mitsubishi style and suitable for Mitsubishi applications. It is a new starter motor, supplied each, with a 3kW power rating and a 4 hole starter mount type for applications that match those physical details.

Key dimensions on this unit include an overall length of 290mm, flange diameter of 82mm, mount hole diameter of 11mm, pinion diameter of 38mm and pinion at rest of 22mm. Those measurements matter when checking replacement suitability, especially on industrial and forklift applications where starter housing shape and pinion location must line up exactly.

The part number is MXS2062 and the unit weight is 7.1kg. OEX lists the product as sourced from original equipment manufacturers and aftermarket suppliers, with manufacture in ISO certified factories and a nationwide warranty backing the range, but the important buying step is still to confirm the match by part number and application details before ordering.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• New unit
• 4 hole starter mount type
• Listed as Mitsubishi style

Specifications

• Part No.: MXS2062
• Power Rating: 3kW
• Voltage: 12V
• Number of Teeth: 10
• Rotation: CW
• Starter Mount Type: 4 Hole
• Overall Length: 290mm
• Flange Diameter: 82mm

Known fitment guidance

• Listed for Mitsubishi applications
• Fitment data also references industrial and forklift applications across Caterpillar Forklift, Mitsubishi Industrial Forklifts, Nissan Industrial Forklift and Sumitomo Forklift
• Sample application data includes Nissan Industrial Forklift model years 2001 through 2009, plus Caterpillar Forklift 1998 and Sumitomo Forklift 1980
• Use the part number MXS2062 and the physical measurements to confirm the correct replacement before purchase

Application and Buying Notes

When matching this starter motor, the most useful checks are the part number MXS2062, the 12V system requirement, 10 teeth, clockwise rotation and the 4 hole mount type. The physical size also needs to line up, including the 290mm overall length, 82mm flange diameter and 11mm mount hole diameter, because starter interchange on industrial equipment is often determined by housing shape as much as by the electrical rating.

The unit is rated at 3kW and uses a dry clutch arrangement, so it is important to compare the existing starter’s layout and engagement details rather than relying on voltage alone. The pinion diameter is 38mm and the pinion at rest is 22mm, which are practical checkpoints when confirming whether the replacement will sit and engage correctly in the application.

Fitment references include Mitsubishi, plus industrial forklift applications linked to Caterpillar Forklift, Mitsubishi Industrial Forklifts, Nissan Industrial Forklift and Sumitomo Forklift. That is useful guidance, but it is not a substitute for checking the existing part number, tooth count and mounting pattern on the vehicle or machine already fitted.

If the original starter is still available, compare the housing, flange diameter, mount hole spacing and pinion details before ordering. For industrial equipment, even small differences in rotation, nose length or tooth count can make a starter unsuitable, so the safest approach is to verify against the replacement part already removed from the machine.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2062 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 11, Overall Length 290mm, Pinion Diameter 38mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2062, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 82mm, Number of Teeth 10, Pinion at Rest 22mm, Power Rating 3kW, Suits Unit Make Mitsubishi.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2062 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2062, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS, MITSUBISHI INDUSTRIAL FORKLIFTS 1981, NISSAN INDUSTRIAL FORKLIFT, NISSAN INDUSTRIAL FORKLIFT 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number MXS2062, the 12V 10 tooth clockwise specification, the 4 hole mount type and the listed dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2062. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It rotates clockwise, listed as CW. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a 4 hole starter mount type. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.

What warranty is listed for this unit?

The listed warranty is 3yr Passenger 1yr Commercial. For this listing, part number MXS2062 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR FORKLIFT, CATERPILLAR FORKLIFT 1998, MITSUBISHI INDUSTRIAL FORKLIFTS. These details should still be checked against the original unit before ordering.
