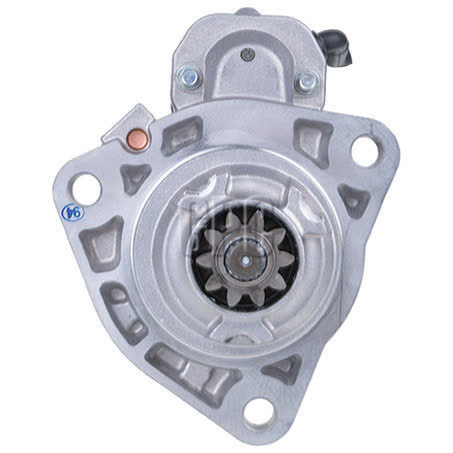

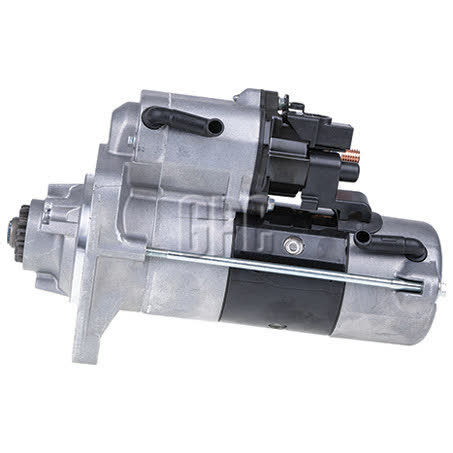

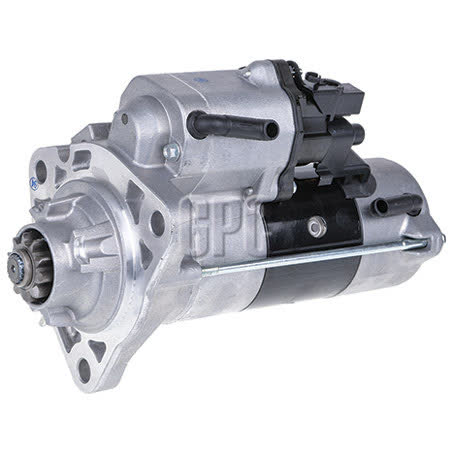

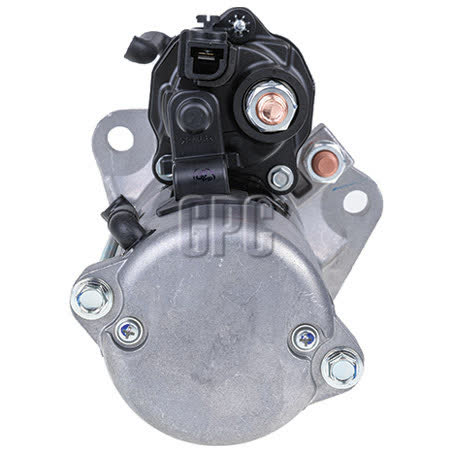

Denso Starter Motor 24V 10 Tooth CW DXS614

This Denso starter motor is a new 24V unit with 10 teeth, clockwise rotation, and part number DXS614. It is listed as a 3 hole starter mount type with 126mm mount centres A, B and C, a 92mm flange diameter, and a 13.5mm mount hole diameter, so those dimensions should be checked carefully against the existing starter before ordering.

Rated at 7.8kW, this starter is intended for heavier rotating electrical applications where consistent cranking performance matters. It has a 40mm pinion diameter, a 48mm pinion at rest, and is listed for wet or dry clutch use, which gives useful installation context when comparing it to the unit currently fitted.

The unit is a Denso brand starter motor, supplied new rather than remanufactured, with a one year warranty. It weighs 8kg and is described as a high-voltage tested starter with premium copper terminals, so the key buying check remains a match on voltage, tooth count, rotation, mounting pattern, and part number.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• New unit
• 3 hole starter mount type
• One year warranty

Specifications

• Brand: Denso
• Part number: DXS614
• Product type: Starter motor
• Voltage: 24V
• Power rating: 7.8kW
• Number of teeth: 10
• Rotation: CW
• Mount centres A / B / C: 126mm

Fitment guidance

• Fitment data supplied includes Caterpillar, Hyundai Construction, Kawasaki, Liugong, Madill, Miller, Sunward, Tana, Tigercat and Timberpro applications.
• Examples in the supplied fitment data include Caterpillar 320E, 320EL, 323FL, 324E, 326D2/D2L, 326FL, 329EL, 330FL, 335FL, 924K, 926M, 930K, 930M, 938K, 938M, 950GC, AP1000F, AP1055F, AP600F, AP655F and D6K2 LGP/XP.
• Examples in the supplied fitment data also include Hyundai Construction HL770XTD-9, R320LC-9, R380LC-9A, R430LC-9 and R430LC-9A, plus Kawasaki 85ZV and 90Z7.
• Additional listed applications include Liugong 936E, Madill 2250C, Miller Nitro 6365, Sunward SWE335F, Tana E320, Tigercat 860C, 870C/L870C, H822C, L822C, L830C and L870C, and Timberpro TL725D/TN725D, TL735D/TN735D, TL745D/TN745D, TL755D/TN755D, TL765C/TN765C and TL775D/TN775D.

Application and Buying Notes

Before ordering, compare the existing starter against the 24V rating, 10 tooth pinion, clockwise rotation and 3 hole mounting pattern. The listed mount centres are 126mm for A, B and C, with a 92mm flange diameter and 13.5mm mount hole diameter, so these dimensions are important when confirming physical interchangeability.

The 7.8kW power rating and 40mm pinion diameter help define the size and duty level of the unit, but they do not replace a part-number check. If the original starter is Denso DXS614 or matches the same mount, tooth count, rotation and measurements, that is a stronger indication than relying on make alone.

This starter is listed for wet or dry clutch use and is supplied new, not remanufactured, which may matter where the machine has specific starting requirements or where a replacement must match the current installation style. A 48mm pinion at rest and 8kg weight are useful reference points when comparing against the removed unit.

Fitment information is broad, but it should still be treated as a guide rather than a guarantee. Machines can share similar starters across different configurations, so the safest approach is to confirm the application details, the existing part number, and all measured mounting and pinion dimensions before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS614 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 10, Pinion Diameter 40mm, Rotation CW, Voltage 24, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. DXS614, Brand DENSO, Description Denso Starter Motor 24V 10Th CW, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13.5, Pinion at Rest 48mm.

Denso Starter Motor 24V 10Th CW. Part number DXS614 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS614, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 320E, CATERPILLAR 320E 2014, CATERPILLAR 320EL, CATERPILLAR 320EL 2014, HYUNDAI CONSTRUCTION HL770XTD-9, HYUNDAI CONSTRUCTION HL770XTD-9 2018. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility by matching the part number DXS614, the 24V specification, the 10 tooth CW configuration, and the listed mounting and pinion dimensions against your existing unit and application details before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is DXS614.

What voltage is this starter motor?

It is a 24V starter motor.

Is this starter motor new or remanufactured?

It is listed as new.

How many teeth does the pinion have?

The pinion has 10 teeth.

What rotation does this starter motor have?

It is clockwise rotation, listed as CW.

What should I check to confirm fitment?

Check the part number DXS614, the 24V rating, 10 tooth CW configuration, 3 hole starter mount type, 126mm mount centres, 92mm flange diameter, 13.5mm mount hole diameter, and the pinion measurements against your existing unit.
