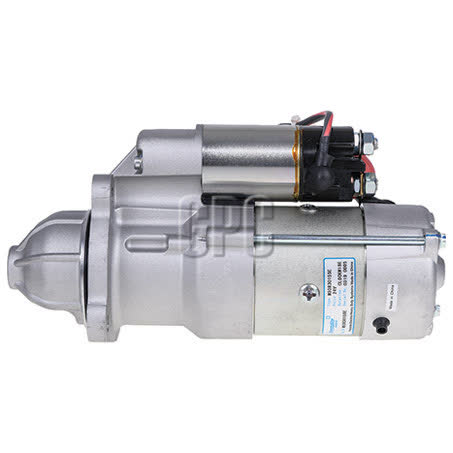

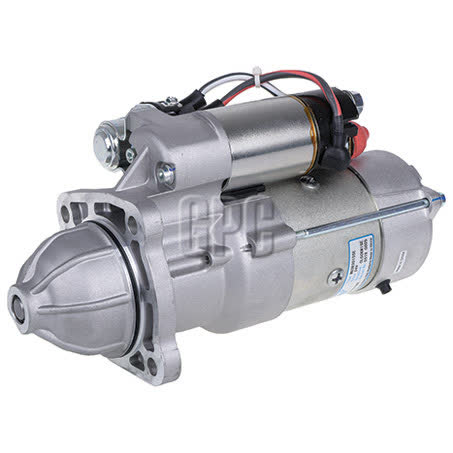

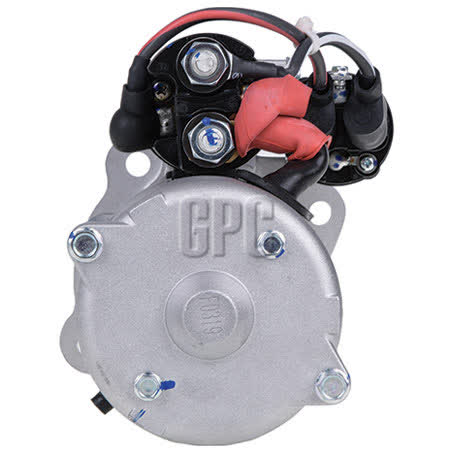

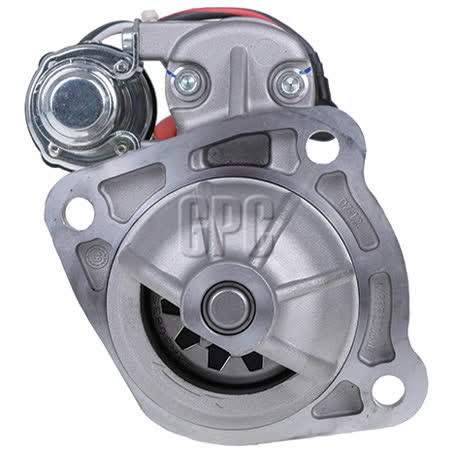

Prestolite Starter Motor 24V 10T CW M93R3015SE

The Prestolite starter motor listed here is a new 24V unit with 10 teeth and clockwise rotation, identified by part number M93R3015SE. It is a starter motor for rotating electrical applications and is supplied as a single each item, with a one year warranty stated for the product.

Key identifying measurements include a 6.0kW power rating, a 250mm overall length, 89mm flange diameter, 127mm mount centres A, 90mm mount centres B and 90mm mount centres C. The starter uses a 3 hole mount type, 11.5mm mount hole diameter, and a pinion diameter of 38mm with 21mm pinion at rest.

This unit is described as a Prestolite starter motor with SAE1 mount and dry clutch application. The listed OEM number is M93415, and the starter is intended for buyers who need the stated 24V, 10 tooth, clockwise configuration matched carefully against the vehicle or equipment application before ordering.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• 6.0kW power rating
• New unit
• 3 hole mount type

Specifications

• Brand: Prestolite
• Type: Starter Motor
• Part No.: M93R3015SE
• OEM Number: M93415
• Voltage: 24V
• Power Rating: 6.0kW
• Rotation: CW
• Number of Teeth: 10

Fitment guidance

• OLYMPUS: YX636HD, YX636HD 2021

Application and Buying Notes

Confirm the part number M93R3015SE first, then compare the 24V electrical system, 10 tooth pinion, clockwise rotation and SAE1 mount details with the unit being replaced. These are the main checkpoints that matter before purchase, especially where the starter is being matched to an existing Prestolite application.

The physical dimensions are important on this starter motor. Check the 3 hole mounting pattern, 127mm mount centres A, 90mm mount centres B and C, 11.5mm mount hole diameter, 89mm flange diameter and 250mm overall length against the space and bolt pattern available on the vehicle or machine.

The listed 6.0kW rating, 38mm pinion diameter and 21mm pinion at rest provide useful reference points when comparing replacement units. The starter is marked as a dry clutch type, so the application should be checked carefully before installation if the original part differs in clutch or mounting arrangement.

Weight is listed at 15.3kg, which can also help when comparing against the removed unit. If the original starter carries a different part number, tooth count, rotation or mounting layout, do not assume interchangeability without checking the application details and the existing unit side by side.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M93R3015SE helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 21mm, Power Rating 6.0kW, Suits Unit Make Prestolite, Note SAE1 Mount.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Weight 15.3kg, Product Group 1 ROTATING ELECTRICAL, Part No. M93R3015SE, Brand PRESTOLITE, Description Prestolite Starter Motor 24V 10Th CW, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11.5.

Prestolite Starter Motor 24V 10Th CW. Part number M93R3015SE should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M93R3015SE, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number M93R3015SE, OEM number M93415, and the full 24V, 10 tooth, CW, SAE1 mount application details before ordering.

FAQ

What type of starter motor is this?

It is a Prestolite starter motor, new and supplied as an each item, with a 24V electrical specification and 10 tooth clockwise configuration. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.

What is the part number?

The listed part number is M93R3015SE. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.

What is the OEM number?

The listed OEM number is M93415. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.

What mounting details are provided?

It is a 3 hole starter mount with SAE1 mount noted. The listed mount centres are 127mm for A, 90mm for B and 90mm for C, with 11.5mm mount hole diameter. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.

What are the key size and rating details?

The starter is listed at 6.0kW, with 250mm overall length, 89mm flange diameter, 38mm pinion diameter, 21mm pinion at rest, and a weight of 15.3kg. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.

Can fitment be confirmed from the information provided here?

Fitment should be confirmed by matching the part number M93R3015SE, OEM number M93415, the 24V rating, 10 tooth pinion, clockwise rotation and SAE1 mount details against the existing unit and application. For this listing, part number M93R3015SE is the main reference point. Listed voltage is 24. Published fitment references include OLYMPUS YX636HD, OLYMPUS YX636HD 2021. These details should still be checked against the original unit before ordering.
