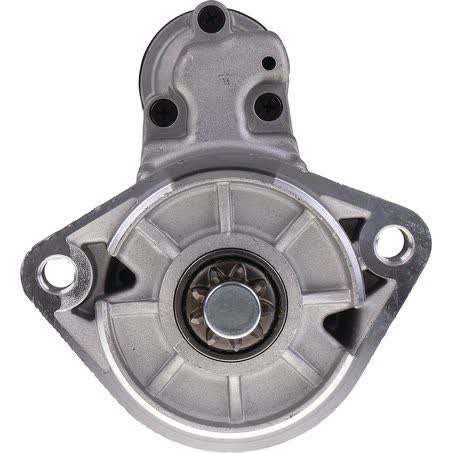

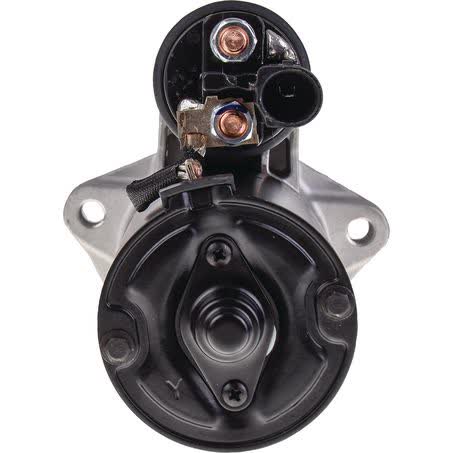

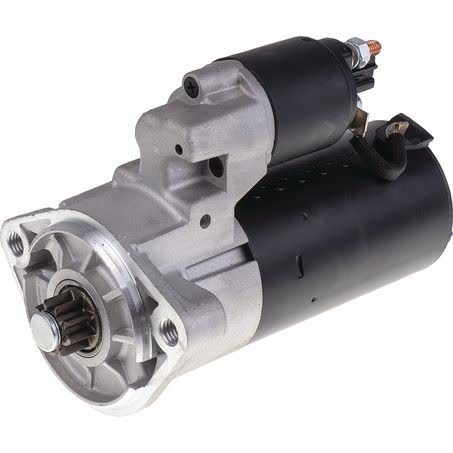

OEX Starter Motor 12V 9TH CW Bosch Style BXS9055

The OEX Starter Motor BXS9055 is a new 12V starter motor with a 9 tooth pinion, clockwise rotation and Bosch style construction. It is listed as a 2 hole starter mount type with an M12 mount hole diameter, an 83mm flange diameter and an overall length of 210mm.

This unit is specified at 2kW and weighs 6.6kg. Key dimensions include a 26mm pinion diameter and a 21mm pinion at rest measurement, which are useful reference points when comparing against the original starter motor or checking a replacement against the vehicle application.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear guide to how the product is covered depending on application.

Key Features

• 12V new starter motor
• 9 tooth pinion
• Clockwise rotation
• Bosch style unit
• 2 hole starter mount
• 2kW power rating

Specifications

• Part No.: BXS9055
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2kW
• Starter mount type: 2 hole

Known application guidance

• Volkswagen Crafter 30-35
• Volkswagen Crafter 30-50
• Volkswagen Crafter 30-35 2006 to 2012
• Volkswagen Crafter 30-50 2006 to 2012

Application and Buying Notes

When comparing this starter motor, the most important checks are the part number BXS9055, the Bosch style design, the 12V electrical specification and the 9 tooth CW configuration. The physical dimensions also matter: 210mm overall length, 83mm flange diameter, M12 mount hole diameter and a 2 hole starter mount all need to match the original unit or the vehicle application.

The pinion details are just as important as the mounting pattern. This starter is listed with a 26mm pinion diameter and 21mm pinion at rest measurement, so it should only be considered where those figures align with the replacement requirement. A starter motor can look similar externally and still be wrong if tooth count, rotation or mounting dimensions differ.

For the listed Volkswagen Crafter applications, use the fitment details as a guide only and still verify the original starter against the part number and physical measurements before ordering. Matching the vehicle model alone is not enough when the same model range can use more than one starter configuration.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9055 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M12, Overall Length 210mm, Pinion Diameter 26mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS9055, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 83mm, Number of Teeth 9, Pinion at Rest 21mm, Power Rating 2kW, Suits Unit Make Bosch.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS9055 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9055, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007, VOLKSWAGEN CRAFTER 30-35 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number BXS9055, Bosch style configuration, 12V, 9 tooth CW rotation, 2 hole mount, and the listed dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is BXS9055. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

The rotation is clockwise, shown as CW. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.

What are the main mounting and size details?

The listed mounting details are a 2 hole starter mount with M12 mount hole diameter, 83mm flange diameter and 210mm overall length. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment guidance?

The fitment guidance lists Volkswagen Crafter 30-35 and Volkswagen Crafter 30-50, including 2006 to 2012 applications. For this listing, part number BXS9055 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CRAFTER 30-35, VOLKSWAGEN CRAFTER 30-35 2006, VOLKSWAGEN CRAFTER 30-35 2007. These details should still be checked against the original unit before ordering.
