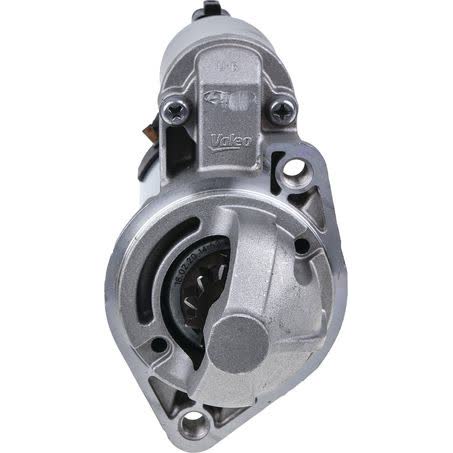

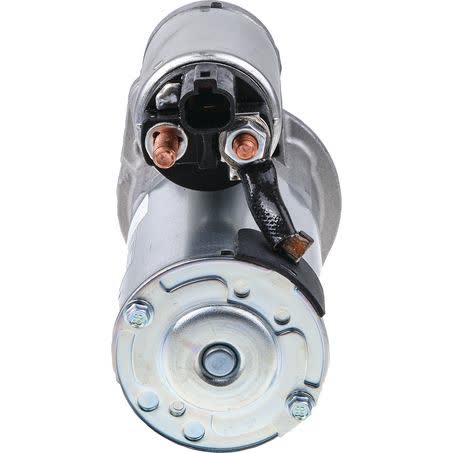

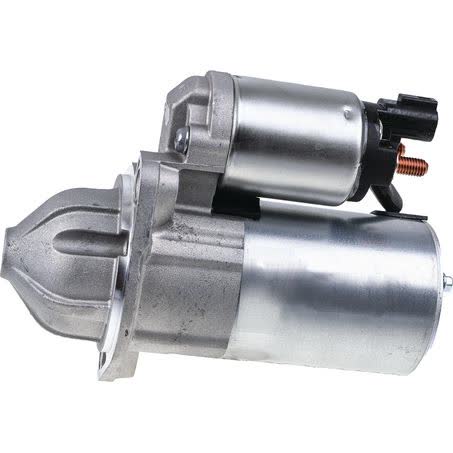

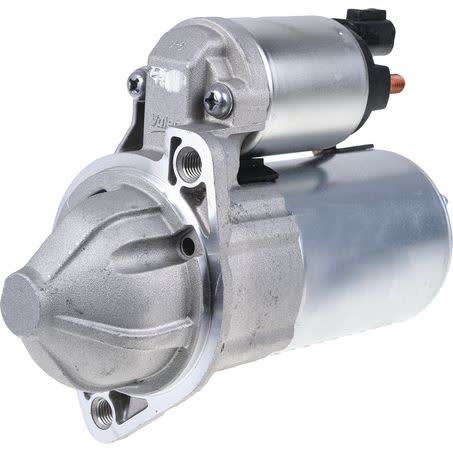

OEX Starter Motor 12V 11 Tooth CW Valeo VXS923

The OEX Starter Motor VXS923 is a new 12V starter motor with 11 teeth and clockwise rotation, suited to Valeo applications. It carries a 1.7kW power rating, a 2 hole starter mount, and 102mm mount centres, so the key dimensions are already defined for a proper application check before purchase.

This unit measures 77mm at the flange, has a 49mm nose cone length, a 34mm pinion diameter, and 16mm pinion at rest. The mount hole diameter is M10 x 1.25, and the starter weighs 2.9kg, which are useful identifiers when matching against an existing starter or vehicle application.

OEX lists this part as not interchangeable with VXS916, so the part number matters as much as the general starter type. For buyers working from an existing unit, the Valeo unit make, 12 volt system, 11 tooth pinion, and clockwise rotation should all be checked together rather than relying on one detail alone.

Key Features

• 12V new starter motor
• 11 tooth pinion
• Clockwise rotation
• 1.7kW power rating
• 2 hole starter mount
• Suited to Valeo unit make

Specifications

• Part number: VXS923
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole

Confirmed fitment guidance

• Hyundai i30
• Hyundai i30 2011
• Hyundai i30 2012
• Hyundai i30 2013
• Hyundai i30 2014
• Hyundai i30 2015
• Hyundai i30 2016

Application and Buying Notes

When matching a starter motor, the safest checks are the part number VXS923, the 12V system, the 11 tooth pinion, and clockwise rotation. This unit is also listed with a 2 hole starter mount, 102mm mount centres, and an M10 x 1.25 mount hole diameter, so those dimensions should line up with the existing part or vehicle requirements before you order.

The note that this starter is not interchangeable with VXS916 is important. Even if the starter looks similar, the flange diameter of 77mm, nose cone length of 49mm, and pinion at rest measurement of 16mm can separate a correct match from one that will not suit. For starter motors, small physical differences can matter as much as the electrical rating.

This OEX starter is listed as suited to Valeo applications and is supplied new, not remanufactured. The 1.7kW power rating and 2.9kg weight give you additional points to compare against the original unit, especially if you are replacing a starter that has been removed from the vehicle and you need to confirm the exact specification.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That helps set expectations, but it does not replace the need to confirm the application details first. If you are fitting to a Hyundai i30, check the year, engine application, and the existing starter markings against VXS923 rather than assuming all i30 variants are the same.

If you are comparing this part to the old starter, read the label carefully and check the tooth count, rotation, mount style, and flange size together. A starter motor can share one or two visible features with another unit and still be the wrong part, so matching the complete set of listed measurements is the better way to avoid a repeat removal.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS923 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 102mm, Nose Cone Length 49mm, Pinion at Rest 16mm, Power Rating 1.7kW, Suits Unit Make Valeo, Note Not interchangeable with VXS916, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.9kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS923, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo, Flange Diameter 77mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 11, Pinion Diameter 34mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Valeo. Part number VXS923 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS923, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012, HYUNDAI I30 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number VXS923, the listed Valeo unit make, 12V specification, 11 tooth clockwise configuration, and the physical dimensions before ordering. Do not rely on appearance alone, and note that this part is not interchangeable with VXS916.

FAQ

What is the part number for this starter motor?

The part number is VXS923.

What voltage and rotation does this starter motor use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 11 teeth.

Is this starter motor new or remanufactured?

It is listed as new.

What vehicles are shown in the fitment guidance?

The supplied fitment guidance lists Hyundai i30 applications, including 2011 through 2016.

Is this starter motor interchangeable with VXS916?

No. It is specifically noted as not interchangeable with VXS916.
