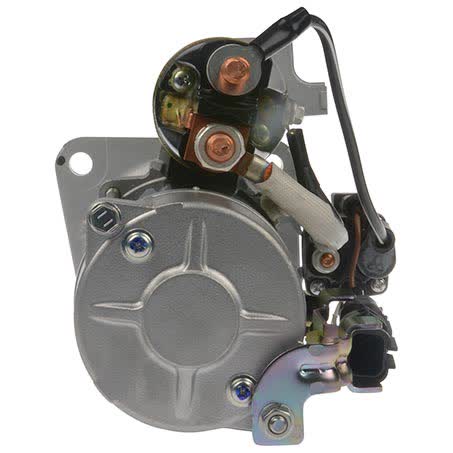

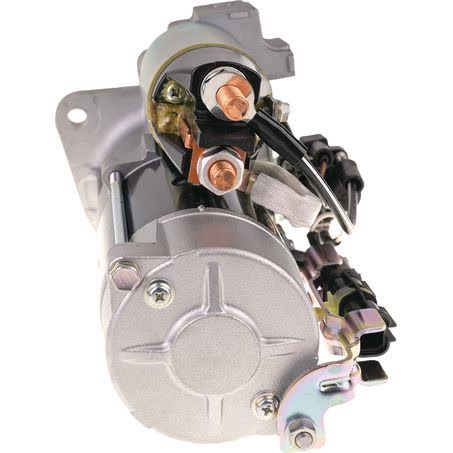

Mitsubishi Starter Motor 24V 12 Tooth CW 5KW M8T62671AMA

This Mitsubishi starter motor is a 24V, 12 tooth, clockwise rotating unit with a 5kW power rating and part number M8T62671AMA. It is supplied new, weighs 7.9kg, and is listed with a 3 hole starter mount type, which is important when comparing against the vehicle’s existing starter layout.

Mounting dimensions on this unit are 127mm mount centres A, 93mm mount centres B, and 81mm mount centres C, with an 89mm flange diameter and 11mm mount hole diameter. The pinion measures 44mm in diameter, sits 27mm at rest, and the overall length is 300mm, so these dimensions should be checked carefully against the original unit before purchase.

The stated application note is to suit MAN applications with D0836 engine. Fitment information also references several MAN and SINOTRUK (CNHTC) applications, but the exact match still depends on the vehicle, engine, and starter configuration. The correct part number and physical dimensions remain the safest way to confirm compatibility.

Key Features

• 24V Mitsubishi starter motor
• 12 tooth pinion
• Clockwise rotation
• 5kW power rating
• New unit
• 3 hole starter mount type

Specifications

• Brand: Mitsubishi
• Product type: Starter motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 12
• Power rating: 5kW
• Overall length: 300mm
• Weight: 7.9kg

Fitment guidance

• To suit MAN applications with D0836 engine
• Fitment references include MAN 12.24#, MAN 15.28#, MAN 22.285, MAN 22.285 LLRC, MAN 23.28#, MAN 26.285 DLRK-HK, MAN BUS, MAN HOCL, MAN M 2000 L, MAN TGL and MAN TGM
• Fitment references also include SINOTRUK (CNHTC) HOWO and DIAMOND REO DR-T5

Application and Buying Notes

Before ordering, confirm the existing starter is a 24V unit with 12 teeth, clockwise rotation, and a 3 hole mounting pattern. The listed dimensions — 127mm, 93mm, and 81mm mount centres, plus an 89mm flange diameter — are key checks when comparing to the removed starter or the vehicle mounting face.

The part number M8T62671AMA is the strongest matching point for this unit. If the vehicle is a MAN application with a D0836 engine, compare the original starter label, tooth count, rotation, and physical mounting measurements before deciding. This is particularly important on commercial vehicles where similar-looking starters can differ in mount centres or pinion depth.

Because the fitment references cover more than one vehicle family, it is sensible to verify the engine, starter mount style, and space available around the housing. The 300mm overall length, 44mm pinion diameter, and 27mm pinion at rest are useful checks where access is tight or where the original starter has been replaced previously.

This starter is listed as new and carries a 2 year or 400,000km warranty. That warranty detail does not replace fitment confirmation, so the vehicle should still be checked carefully against the part number and specifications before installation begins.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M8T62671AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 127mm, Mount Centres C 81mm, Number of Teeth 12, Pinion at Rest 27mm, Power Rating 5kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. M8T62671AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 24V 12Th CW, Flange Diameter 89mm, Mount Centres B 93mm, Mount Hole Diameter 11, Overall Length 300mm.

Mitsubishi Starter Motor 24V 12Th CW. Part number M8T62671AMA should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M8T62671AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#, MAN 12.24# 2007, MAN 12.24# 2008, MAN 12.24# 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number M8T62671AMA, 24V electrical system, 12 tooth CW rotation, 3 hole mount type, and the listed mount centres and flange dimensions against the vehicle’s existing starter and application details.

FAQ

What is the part number for this starter motor?

The part number is M8T62671AMA. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 12 teeth. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter rotates clockwise, shown as CW. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.

What application is listed for this starter motor?

The stated application is to suit MAN applications with D0836 engine. Fitment references also include several MAN models, plus SINOTRUK (CNHTC) HOWO and DIAMOND REO DR-T5. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number M8T62671AMA is the main reference point. Listed voltage is 24. Published fitment references include DIAMOND REO DR-T5, DIAMOND REO DR-T5 2019, MAN 12.24#. These details should still be checked against the original unit before ordering.
