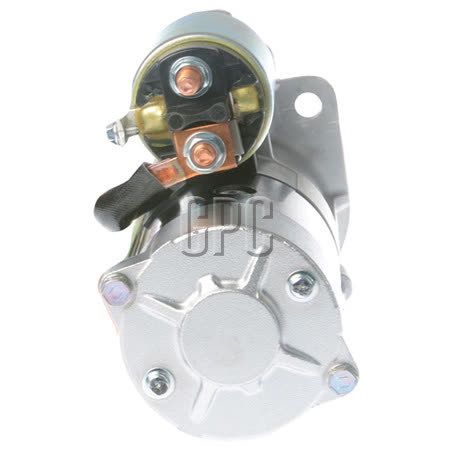

Mitsubishi Starter Motor 12V 10TH CW M8T75171AMA

This Mitsubishi starter motor is a new 12V unit with 10 teeth, clockwise rotation, and a 2.2kW power rating. It is listed under part number M8T75171AMA and is supplied as an each unit for rotating electrical applications.

Key physical details include a 115mm mount centres A measurement, 82mm flange diameter, 11mm mount hole diameter, and a 38mm pinion diameter. The pinion at rest is 22mm, and the starter uses a 2 hole mount type.

The unit is described as suitable for wet or dry clutch applications and weighs 13.5kg. It is backed by a 2 years / 400,000km warranty and is identified as a Mitsubishi brand starter motor.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• 2.2kW power rating
• New unit
• Wet or dry clutch application

Specifications

• Part No.: M8T75171AMA
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Power rating: 2.2kW
• Mount centres A: 115mm
• Flange diameter: 82mm
• Mount hole diameter: 11mm

Known applications

• CASE IH FARMALL
• CATERPILLAR 302.5
• CATERPILLAR 303.5CCR
• GENIE GTH-2306
• HYUNDAI CONSTRUCTION ROBEX75-7
• MITSUBISHI INDUSTRIAL FORKLIFTS
• MITSUBISHI INDUSTRIAL S4E
• NEW HOLLAND BOOMER

Application and Buying Notes

When comparing this starter against an existing unit, the safest checks are the part number M8T75171AMA, the 12V system voltage, the 10-tooth pinion, and the clockwise rotation. Physical dimensions also matter here, especially the 115mm mount centres A, 82mm flange diameter, 11mm mount hole diameter, and 38mm pinion diameter.

This starter is a 2.2kW new unit, so it is important to match the electrical and mechanical layout rather than relying on appearance alone. The 2 hole mount type and 13.5kg weight are useful comparison points if you are replacing an original Mitsubishi starter in equipment where access, mounting, and engagement depth are critical.

The listing states wet or dry clutch suitability, which gives a useful compatibility cue for equipment that may operate in either arrangement. Even so, the confirmed way to order with confidence is to compare the old starter's part number and measurements against the listed dimensions before installation.

If your machine is one of the known applications, use that as a guide only and still verify the starter itself. Models and production ranges can vary, so the part number and the measured dimensions remain the best checks before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M8T75171AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 115mm, Number of Teeth 10, Pinion Diameter 38mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Wet or Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. M8T75171AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 12V 10Th CW, Flange Diameter 82mm, Mount Hole Diameter 11, Pinion at Rest 22mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi.

Mitsubishi Starter Motor 12V 10Th CW. Part number M8T75171AMA should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M8T75171AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5, CATERPILLAR 302.5 1999, CATERPILLAR 302.5 2000, CATERPILLAR 302.5 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number M8T75171AMA and comparing 12V, 10-tooth CW, mount centres A 115mm, flange diameter 82mm, mount hole diameter 11mm, pinion diameter 38mm, and pinion at rest 22mm against the removed starter and application details.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

The starter motor is 12V. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 10 teeth. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.

What is the rotation direction?

Rotation is clockwise, shown as CW. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.

What part number should I check against my old unit?

The part number is M8T75171AMA. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.

What are the most important measurements to verify before ordering?

The key measurements listed are 115mm mount centres A, 82mm flange diameter, 11mm mount hole diameter, 38mm pinion diameter, and 22mm pinion at rest. For this listing, part number M8T75171AMA is the main reference point. Listed voltage is 12. Published fitment references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5. These details should still be checked against the original unit before ordering.
