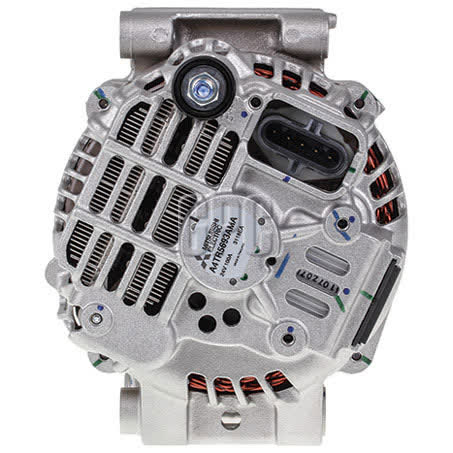

Mitsubishi Alternator 24V 100A Part No. A4TR5693AMA

The Mitsubishi Alternator A4TR5693AMA is a new 24V, 100A unit built for rotating electrical applications where the mounting and electrical details need to match closely. It uses a pad mount, an internal regulator, and an 8 groove pulley with a 72mm outside diameter, so it is the sort of alternator that should be checked carefully against the existing unit before ordering.

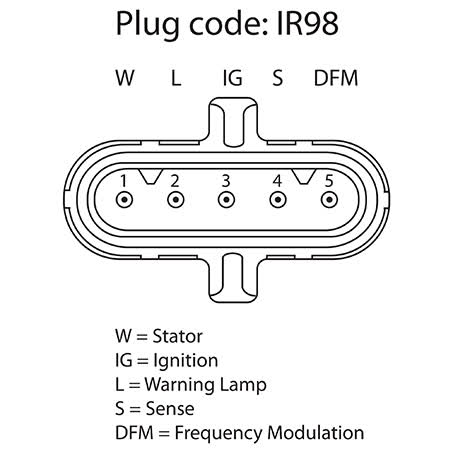

This alternator is listed as 100 amp output at 24 volts, with adjust and pivot hole diameters of 8 / 9 and a pin code of IR98. Those figures matter when you are matching a replacement, especially on commercial and off-highway applications where the physical fit and electrical configuration need to line up with the machine already in service.

At 7.7kg and supplied new, it is described as a small size/high output alternator with a minimum number of parts and low noise characteristics for wind and electromagnetic noise. The warranty is 2 years or 400,000km, which gives a useful reference point for buyers who want a replacement unit with clear support terms.

Key Features

• New Mitsubishi alternator
• 24V, 100A output
• Pad mount design
• Internal regulator
• 8 groove pulley
• 72mm pulley outside diameter

Specifications

• Part No.: A4TR5693AMA
• Brand: Mitsubishi
• Product type: Alternator
• Voltage: 24V
• Power rating: 100A
• Unit of measure: Each
• Mount type: Pad
• Regulator type: Internal

Fitment applications listed for this alternator

• BRUKS 806.2
• DOOSAN/DAEWOO DA30
• DOOSAN/DAEWOO DA40
• DOOSAN/DAEWOO DL420-5
• DOOSAN/DAEWOO DL450-5
• DOOSAN/DAEWOO DL550/550-5
• IRIZAR CENTURY
• MOXY MT26

Application and Buying Notes

The most important checks on this alternator are the part number A4TR5693AMA, the 24V system voltage, the 100A rating, and the mounting details. The pad mount, 8 / 9 mm adjust and pivot hole diameters, IR98 pin code, and 8 groove pulley with 72mm outside diameter all need to suit the existing installation before you fit it.

If you are comparing it to a removed unit, the weight of 7.7kg and the internal regulator can also help confirm you are looking at the same style of alternator. Those details are particularly useful where a machine has had previous repairs or a non-standard replacement fitted.

Fitment listings are provided for a range of BRUKS, DOOSAN/DAEWOO, IRIZAR, MOXY, SCANIA and TEREX O&K applications, but the safest approach is still to confirm the machine model, year where shown, and the alternator identifiers on the old part. Even when a model appears in the listed applications, the final check should always be made against the physical and electrical specifications.

The stated features of small size/high output, minimum number of parts, and low noise do not change the need to verify fitment. They are useful indicators of the alternator’s design, but the actual replacement decision should be based on the matching details already in use on the vehicle or machine.

This unit is sold as a new alternator and carries a 2 year, 400,000km warranty. That is helpful for purchase confidence, but the warranty does not replace the need to match the pulley section, mount type, regulator type, and pin code before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number A4TR5693AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Pin Code IR98, Power Rating (Amp) 100, Pulley Section 8 Groove, Suits Unit Make Mitsubishi, Alternator Mount Pad, Weight 7.7kg, Product Group 1 ROTATING ELECTRICAL.

Additional published details for cross-checking include Part No. A4TR5693AMA, Brand MITSUBISHI, Description Mitsubishi Alternator 24V 100A, Adjusting Hole Diameter 8 / 9, Pivot Hole Diameter 8 / 9, Pulley Outside Diameter 72mm, Regulator Type Internal, Voltage 24, New / Reman. New.

Mitsubishi Alternator 24V 100A. Part number A4TR5693AMA should be checked first. Listed voltage is 24. Listed output rating is 100. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number A4TR5693AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 100 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BRUKS 806.2, BRUKS 806.2 2014, DOOSAN/DAEWOO DA30, DOOSAN/DAEWOO DA30 2013, DOOSAN/DAEWOO DA40, DOOSAN/DAEWOO DA40 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number A4TR5693AMA and the listed application details, including 24V, 100A, pad mount, internal regulator, IR98 pin code, and 8 groove pulley with 72mm outside diameter.

FAQ

What is the part number for this alternator?

The part number is A4TR5693AMA.

What voltage and output does it have?

It is a 24V alternator with a 100A power rating.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

It uses an internal regulator.

What pulley and mounting details are listed?

It has an 8 groove pulley with a 72mm outside diameter and a pad mount design. The adjust and pivot hole diameters are 8 / 9.

What warranty is supplied?

The warranty is 2 years or 400,000km.
