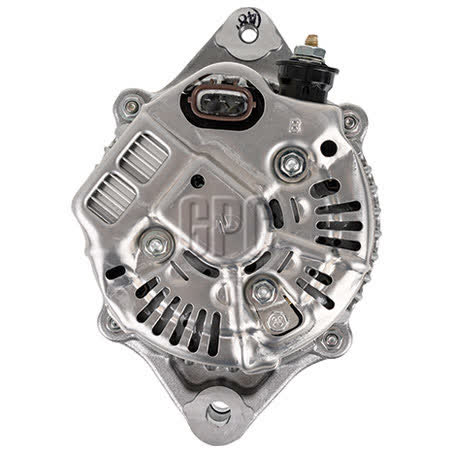

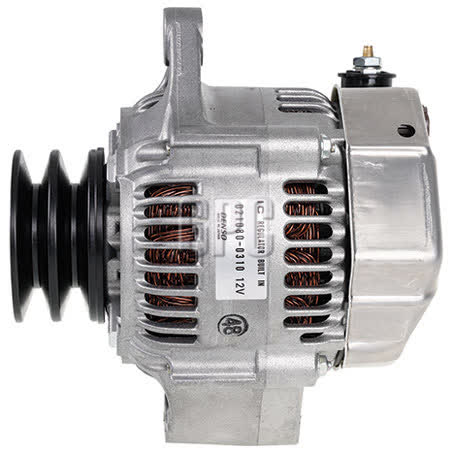

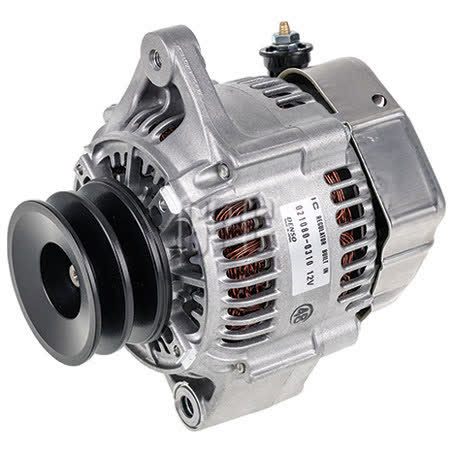

Denso Alternator 12V 90A DXA4094

This Denso alternator is a new 12V unit rated at 90A, with part number DXA4094 and pin code IR74. It is listed as a Denso alternator with an internal regulator, single leg alternator mount, and insulated return: No.

Key dimensions include a 58mm pulley outside diameter, 163mm mount centre-to-centre, 58mm mount leg thickness, 8mm adjusting hole diameter, and 17mm shaft dimension. These measurements matter when comparing the unit to the existing alternator setup in the machine.

The unit is supplied as each and carries a 12 Months 20000km warranty. It is described as having premium cores, precise OE assembly benchmarks, and a compact, lightweight design, with a stated focus on heat and electrical demand.

Key Features

• 12V alternator rated at 90A
• New Denso unit
• Internal regulator
• Single leg alternator mount
• Part number DXA4094

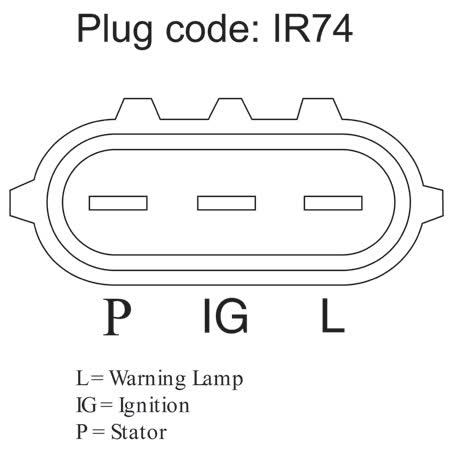

• Pin code IR74

Specifications

• Brand: Denso
• Product type: Alternator
• Voltage: 12V
• Power rating: 90A
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Single leg
• Mount leg thickness: 58mm

Fitment information provided

• AMMANN ARX23-2/C
• AMMANN ARX26-2/C
• AMMANN ARX36-2
• AMMANN ARX40-2/C
• AMMANN ARX45-2/C
• ASV RT-40
• BOBCAT E32
• BOBCAT E35

Application and Buying Notes

Before ordering, compare the part number DXA4094 and pin code IR74 against the alternator already fitted to the machine. The supplied fitment list covers a range of machines, but the safest match is always confirmed by the existing unit details, mounting style, and electrical setup.

The important check points on this alternator are the 12V system, 90A output, internal regulator, single leg mount, and the 58mm pulley outside diameter. If any of those differ from the current unit, the alternator may not suit without further verification.

Physical dimensions also need to line up properly, especially the 163mm mount centre-to-centre, 58mm mount leg thickness, 8mm adjusting hole diameter, and 17mm shaft dimension. These measurements are useful when checking brackets, alignment, and pulley position before purchase.

This alternator is described as new and supplied each, with a 12 Months 20000km warranty. Warranty terms are useful, but they do not replace fitment checks, so the model application and the part identification should still be confirmed before fitting.

If you are replacing a Denso alternator, compare the regulator type, mounting arrangement, and pulley size carefully. A correct electrical rating alone is not enough if the mount or pulley specification is different from the original part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4094 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months 20000km, Mount Leg Thickness 58mm, Power Rating (Amp) 90, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 163mm, Insulated Return No.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4094, Brand DENSO, Description Denso Alternator 12V 90A, Adjusting Hole Diameter 8, Pin Code IR74, Pulley Outside Diameter 58mm, Suits Unit Make Denso, Alternator Mount Single Leg, New / Reman. New.

Denso Alternator 12V 90A. Part number DXA4094 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4094, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by checking the part number DXA4094, pin code IR74, mounting style, pulley size, and the application details for your machine before ordering.

FAQ

What is the part number for this alternator?

The part number is DXA4094. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.

What voltage and amperage does it have?

It is a 12V alternator rated at 90A. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It has an internal regulator. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.

What is the pulley outside diameter?

The pulley outside diameter is 58mm. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 12 Months 20000km. For this listing, part number DXA4094 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AMMANN ARX23-2/C, AMMANN ARX23-2/C 2018, AMMANN ARX26-2/C. These details should still be checked against the original unit before ordering.
