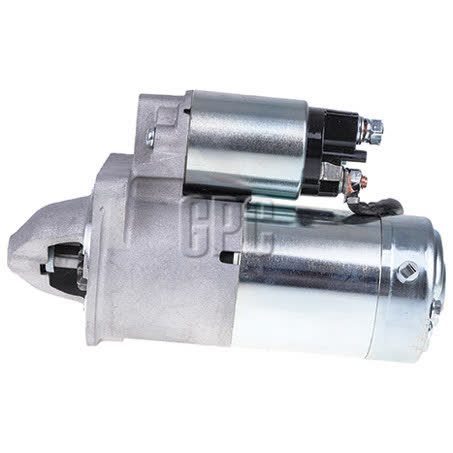

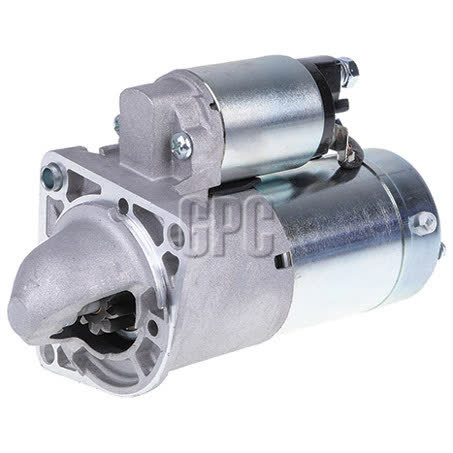

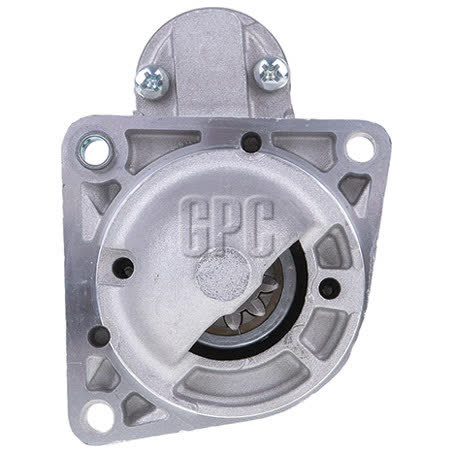

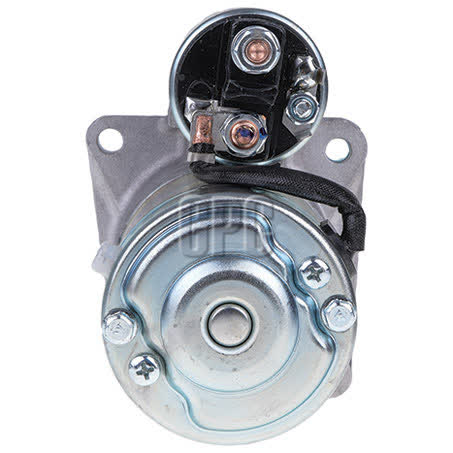

OEX Starter Motor 12V 10T CW Mitsubishi Style MXS2064

The OEX starter motor listed here is a new 12V unit with clockwise rotation, 10 teeth on the pinion, and a power rating of 1.9kW. It is identified as Mitsubishi style and marked to suit Mitsubishi applications, so matching the part number MXS2064 and the physical dimensions is the sensible starting point before ordering.

Key dimensions include 116mm mount centres A, 82mm mount centres C, 82mm mount centres B, a 45mm nose cone length, and an overall length of 221.5mm. The starter mount type is 3 hole, the mount hole diameter is 9mm, and the flange diameter is 82mm, which are the details most likely to matter when checking a direct replacement.

This starter motor is supplied as a new rotating electrical component and weighs 3.64kg. The pinion diameter is 32.7mm, the pinion at rest is 8.3mm, and it is listed as a dry clutch unit. Those details help confirm the style of unit you are comparing against, especially where the original starter has a specific mounting pattern or pinion layout.

Key Features

• OEX starter motor, new unit
• 12V electrical system
• Clockwise rotation
• 10-tooth pinion
• 1.9kW power rating
• Mitsubishi style unit

Specifications

• Part number: MXS2064
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.9kW
• Starter mount type: 3 hole

Fitment guidance

• Listed fitment information includes Holden Astra, Holden Malibu, Opel Astra, Opel Insignia, Opel Zafira, and Saab 9-3.
• Sample applications shown include Holden Astra 2006 to 2010, Holden Malibu 2013 to 2016, Opel Astra 2012 to 2013, Opel Insignia 2012 to 2013, Opel Zafira 2012 to 2013, and Saab 9-3 from 1998 through 2012.
• The unit is described as Mitsubishi style and suits Mitsubishi make, so the part number and physical measurements should be checked carefully against the original starter before purchase.
• Because vehicle variants can differ within the same model range, matching the 3 hole mount, 82mm flange diameter, 116mm and 82mm mount centres, and 10-tooth pinion is important.

Application and Buying Notes

When checking this starter motor, compare the part number MXS2064 first, then confirm the physical match against your removed unit. The important measurements here are 116mm mount centres A, 82mm mount centres B and C, 45mm nose cone length, 221.5mm overall length, and a 3 hole starter mount with 9mm mount holes.

The electrical and drive details also matter. This is a 12V starter with clockwise rotation, 10 teeth, a 32.7mm pinion diameter, and 1.9kW power rating. If any of those points differ from the starter currently fitted, it may not be the correct replacement even if the vehicle model appears similar.

This unit is listed as a new dry clutch starter motor for Mitsubishi applications. That makes it important to check the original unit’s mounting style and drive arrangement, especially on vehicles where engines or transmissions have changed across model years.

The listed fitment covers several Holden, Opel, and Saab applications, but model names alone are not enough for a safe match. Use the dimensions, mount type, rotation, and part number together so the replacement is checked as a complete package rather than by vehicle badge alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2064 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 116mm, Mount Centres C 82mm, Nose Cone Length 45mm, Overall Length 221.5mm, Pinion Diameter 32.7mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 3.64kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2064, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Centres B 82mm, Mount Hole Diameter 9, Number of Teeth 10.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2064 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2064, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN ASTRA, HOLDEN ASTRA 2006, HOLDEN ASTRA 2007, HOLDEN ASTRA 2008, OPEL ASTRA, OPEL ASTRA 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number MXS2064, the 12V clockwise specification, 10-tooth pinion, 3 hole mount, and all listed mounting measurements against the original starter motor before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2064.

Is this a 12V or 24V starter motor?

It is a 12V starter motor.

What direction does this starter rotate?

It has clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 10 teeth.

What vehicles are listed in the fitment information?

Listed fitment information includes Holden Astra, Holden Malibu, Opel Astra, Opel Insignia, Opel Zafira, and Saab 9-3.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
