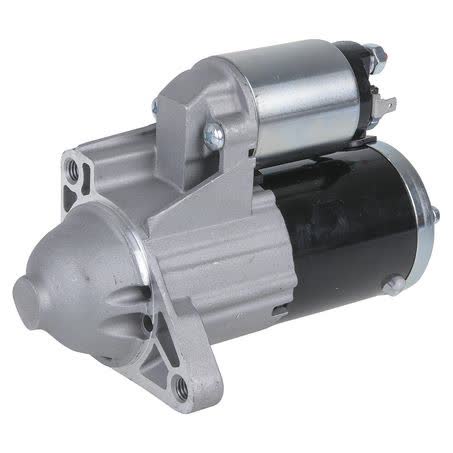

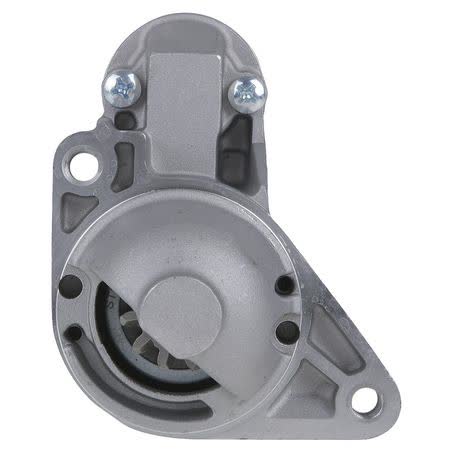

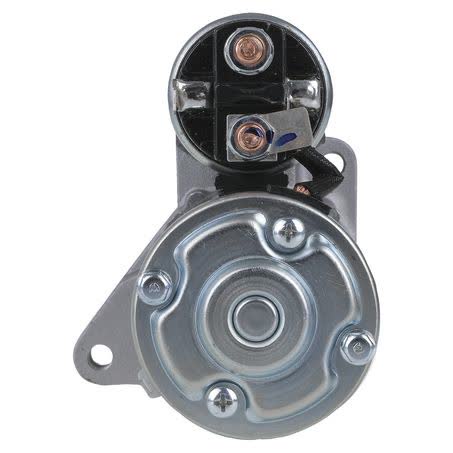

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS2067

The OEX starter motor listed here is a new 12V unit with 11 teeth, clockwise rotation, and a 1.4kW power rating. It is identified by part number MXS2067 and is described as Mitsubishi style, with a 2 hole starter mount and M10x1.5 mount hole thread.

Key dimensions are supplied for checking against the original unit before purchase: 106mm mount centres A, 39mm nose cone length, 197.5mm overall length, 70mm flange diameter, and a 34mm pinion diameter. The pinion at rest is 7mm and the unit weighs 3kg.

This starter motor is listed as a new rotating electrical component and suits Mitsubishi as the unit make. OEX also notes sourcing through ISO certified factories, and the product carries a 3 year passenger / 1 year commercial warranty.

Key Features

• New starter motor
• 12V electrical system
• 11 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• Mitsubishi style application

Specifications

• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole
• Mount hole diameter: M10x1.5
• Mount centres A: 106mm
• Nose cone length: 39mm

Fitment guidance

• Suits unit make: Mitsubishi
• Mitsubishi style starter motor
• Fitment data supplied references Jeep Wrangler applications from 1996 to 2006
• Listed application coverage includes Jeep Wrangler model years 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006

Application and Buying Notes

Before ordering, compare the part number MXS2067 and the physical details of your existing starter motor. The important checks here are the 12V rating, clockwise rotation, 11 tooth pinion, 2 hole mounting pattern, and the listed 106mm mount centres A, 39mm nose cone length, and 197.5mm overall length.

The supplied fitment information points to Mitsubishi as the unit make and also includes Jeep Wrangler application references across 1996 to 2006. That means the best way to avoid a mismatch is to confirm the original starter’s mounting style, pinion tooth count, rotation, and dimensions against the measurements above rather than relying on vehicle naming alone.

The 34mm pinion diameter, 70mm flange diameter, and M10x1.5 mount hole thread are useful comparison points when checking the original unit, especially where there has been a previous replacement or the vehicle has been modified. If the old starter differs in mount pattern, nose cone length, or pinion depth, it is safer to stop and verify before fitting.

This is a new starter motor and not a remanufactured unit. It is listed as dry clutch compatible, weighs 3kg, and is backed by OEX’s stated warranty coverage of 3 years for passenger use and 1 year for commercial use. Warranty support should still be matched to the intended application and installation conditions.

When replacing a starter motor, the most reliable approach is to compare the physical unit on the vehicle, the part number, and the application details side by side. If the original starter carries a different rotation direction, tooth count, or mount layout, do not assume the unit will interchange just because it is Mitsubishi style or appears visually similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2067 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Nose Cone Length 39mm, Overall Length 197.5mm, Pinion Diameter 34mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2067, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.5, Number of Teeth 11, Pinion at Rest 7mm, Power Rating 1.4kW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2067 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2067, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using part number MXS2067, the 12V CW 11 tooth specification, and the listed dimensions and mount pattern before ordering or fitting.

FAQ

What is the part number for this starter motor?

The part number supplied is MXS2067. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.

What are the main mounting details to check?

The listed mounting details are a 2 hole starter mount, 106mm mount centres A, and M10x1.5 mount hole diameter. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.

What vehicle fitment information is supplied?

The fitment data supplied states Mitsubishi as the unit make and includes Jeep Wrangler application references from 1996 through 2006. For this listing, part number MXS2067 is the main reference point. Listed voltage is 12. Published fitment references include JEEP WRANGLER, JEEP WRANGLER 1996, JEEP WRANGLER 1997. These details should still be checked against the original unit before ordering.
