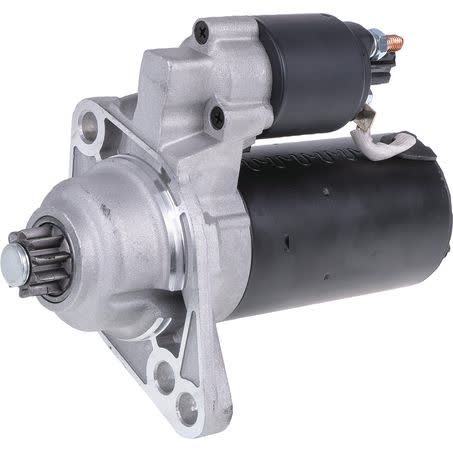

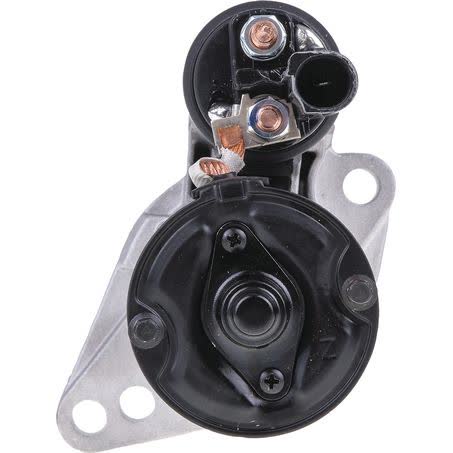

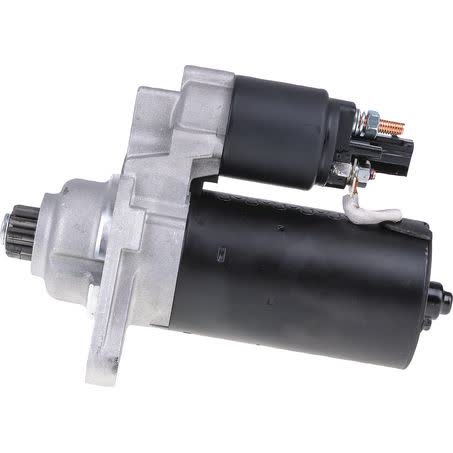

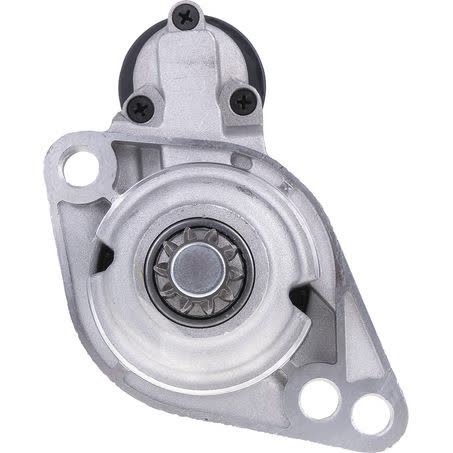

OEX Starter Motor 12V 10 Tooth CCW Bosch Style BXS0152

The OEX Starter Motor BXS0152 is a new 12V starter motor with a 10 tooth pinion, counter clockwise rotation and Bosch suitability. It is a 3 hole starter mount design with 111mm mount centres A, 127mm mount centres C and a 76.2mm flange diameter, so the physical dimensions can be checked before purchase.

This unit is listed with a 2kW power rating, a 28mm pinion diameter, 53.3mm pinion at rest and an overall length of 231mm. Those measurements are useful when comparing against the original starter, especially where space, bolt pattern and nose cone length need to match the vehicle application.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories and backed by a nationwide warranty. For this part, the warranty is listed as 3 years for passenger use and 1 year for commercial use, which gives clear guidance on how the item is covered depending on application.

Key Features

• 12V starter motor
• 10 tooth pinion
• Counter clockwise rotation
• Bosch style / suits Bosch unit make
• 3 hole starter mount
• New unit

Specifications

• Type: Starter motor
• Brand: OEX
• Part No.: BXS0152
• Voltage: 12V
• Rotation: CCW
• Number of Teeth: 10
• Power Rating: 2kW
• Starter Mount Type: 3 hole

Verified fitment applications

• Volkswagen Caddy
• Volkswagen Jetta
• Volkswagen Polo

Application and Buying Notes

Before ordering, match the part number BXS0152 and compare the physical details with the removed starter. The important checks here are 12V voltage, CCW rotation, 10 tooth pinion count, 3 hole mount type, and the listed mount centres of 111mm, 143mm and 127mm. If any of those details differ from the original unit, the starter should be rechecked before purchase.

The Bosch style and ‘suits unit make: Bosch’ note are useful when identifying the correct replacement style, but they do not replace a direct physical comparison. The flange diameter is 76.2mm, the mount hole diameter is 12.5mm, the nose cone length is 56mm and the overall length is 231mm, so these measurements should be compared carefully where clearance or bracket alignment is critical.

This starter is listed as new and has a 2kW power rating. That tells you the unit is intended as a direct replacement starter motor rather than a repaired core, but it is still important to confirm the application and mounting arrangement on the vehicle. Starter motors can look similar while differing in tooth count, rotation or bolt pattern, so the safest approach is to verify the original part details against the listing before committing to fitment.

The warranty is listed differently for passenger and commercial use: 3 years for passenger applications and 1 year for commercial applications. If the vehicle is used in a commercial setting, that shorter coverage period is the one to keep in mind. Confirming the intended use before purchase helps avoid confusion later if the vehicle is not a standard passenger application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0152 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 111mm, Mount Centres C 127mm, Nose Cone Length 56mm, Overall Length 231mm, Pinion Diameter 28mm, Rotation CCW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXS0152, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76.2mm, Mount Centres B 143mm, Mount Hole Diameter 12.5, Number of Teeth 10.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0152 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0152, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006, VOLKSWAGEN CADDY 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number BXS0152, the Bosch style application, and the vehicle’s original starter measurements and mounting pattern before ordering. Do not rely on appearance alone, as 12V, CCW rotation, 10 teeth and the 3 hole mount must all match the existing unit.

FAQ

What is the part number for this starter motor?

The part number listed is BXS0152. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

The rotation is CCW, which means counter clockwise. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

This starter motor has a 10 tooth pinion. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.

Which vehicles are listed as fitment applications?

Verified fitment applications shown are Volkswagen Caddy, Volkswagen Jetta and Volkswagen Polo. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0152 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2005, VOLKSWAGEN CADDY 2006. These details should still be checked against the original unit before ordering.
