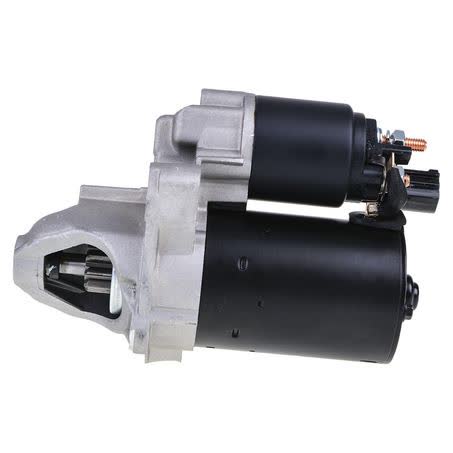

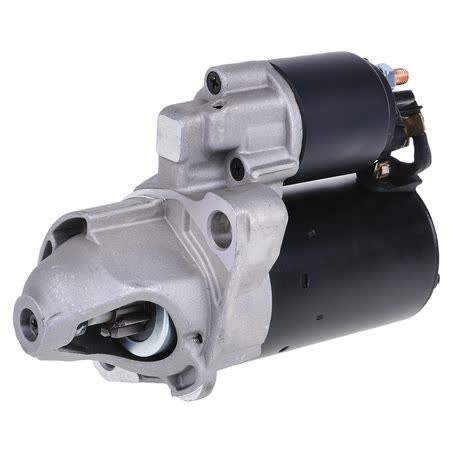

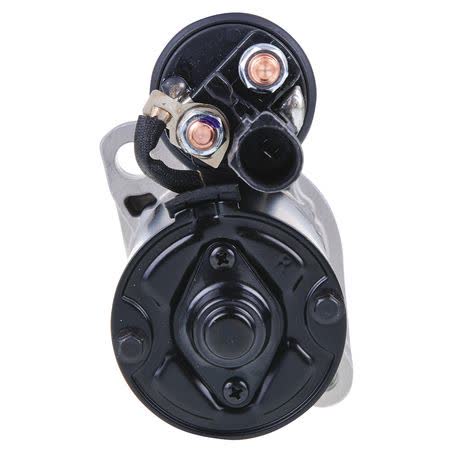

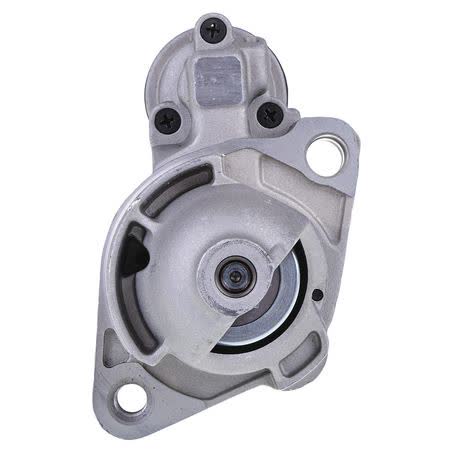

OEX Starter Motor 12V 9TH CW Bosch Style BXS0157

The OEX Starter Motor BXS0157 is a 12V, clockwise rotation starter motor with a 9 tooth pinion and Bosch suitability. It is a new unit, not remanufactured, and is listed with a 1.1kW power rating for applications that call for this style and specification.

Key dimensions on this unit include 105mm mount centres, a 61.5mm nose cone length, 206mm overall length, and an 82mm flange diameter. The mount hole diameter is listed as 12 / 13, with a 26mm pinion diameter and 27.5mm pinion at rest.

The part number is BXS0157 and the description identifies it as a Bosch style starter motor. Warranty cover is listed as 3 years for passenger use and 1 year for commercial use, which is useful to confirm before ordering if the vehicle application will see private or business use.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9 tooth pinion
• Bosch style application
• New unit, not remanufactured
• 1.1kW power rating

Specifications

• Part number: BXS0157
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.1kW
• Starter mount type: 2 hole

Confirmed application details

• Audi A4
• Audi A6
• Fitment data includes Audi A4 model years 2001 through 2006
• Fitment data includes Audi A6 model years 2001 through 2004

Application and Buying Notes

Before ordering, match the part number BXS0157, the Bosch style application, and the core dimensions that are listed for this starter motor. The 12V electrical setup, CW rotation, 9 tooth pinion, and 2 hole mounting pattern all need to align with the vehicle’s original starter requirements.

The mount centres are 105mm, the flange diameter is 82mm, and the overall length is 206mm. Those measurements are practical checks when comparing against the original unit, particularly where there is limited clearance around the bellhousing or mounting face.

The pinion details are also worth confirming carefully. This unit lists a 26mm pinion diameter, 27.5mm pinion at rest, and a dry clutch arrangement. Those details help distinguish it from similar-looking starter motors that may not match the same engagement setup.

Warranty terms differ between passenger and commercial use, so it is sensible to confirm how the vehicle will be used before purchase. The listed cover is 3 years for passenger use and 1 year for commercial use, which should be considered alongside the vehicle application and service expectations.

If the original starter has been replaced before, compare the old unit’s tag, mounting pattern, and shaft/pinion dimensions rather than relying on appearance alone. Bosch style starters can share broad similarities, but the listed measurements and 9 tooth count are the reliable checks for this part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0157 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Nose Cone Length 61.5mm, Overall Length 206mm, Pinion Diameter 26mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0157, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 82mm, Mount Hole Diameter 12 / 13, Number of Teeth 9, Pinion at Rest 27.5mm, Power Rating 1.1kW.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0157 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0157, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number BXS0157, the Bosch style application, 12V CW specification, 9 tooth pinion, and the listed mounting and length measurements against the vehicle’s original starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0157. For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation (CW). For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 9 teeth. For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.

What are the key mounting measurements?

The listed mount centres are 105mm, the starter mount type is 2 hole, the flange diameter is 82mm, and the mount hole diameter is 12 / 13. For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.

Which vehicles are shown in the fitment data?

The fitment data includes Audi A4 model years 2001 to 2006 and Audi A6 model years 2001 to 2004. Final compatibility should still be confirmed against the part number and the original unit. For this listing, part number BXS0157 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2001, AUDI A4 2002. These details should still be checked against the original unit before ordering.
