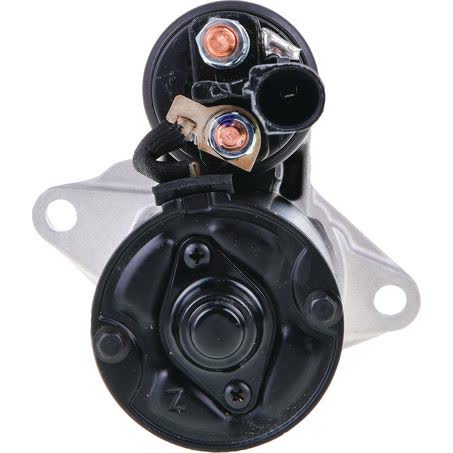

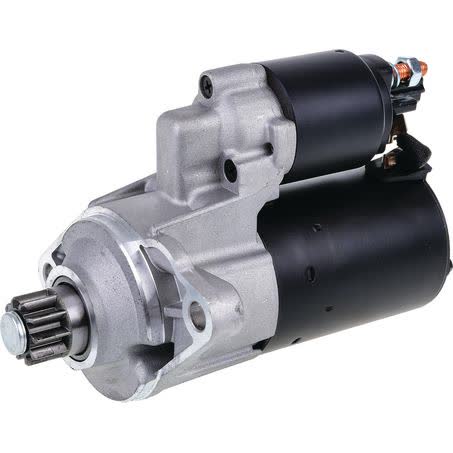

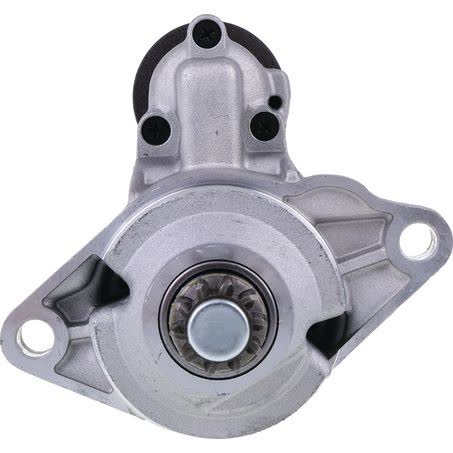

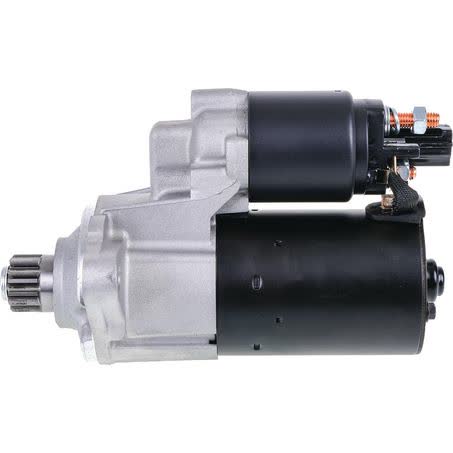

OEX Starter Motor 12V 10 Tooth CCW Bosch Style BXS0164

The OEX BXS0164 is a new 12V starter motor in Bosch style, built with a 10 tooth pinion and CCW rotation. It is listed with a 1.1kW power rating, a 213mm overall length, and a 2 hole starter mount type, so it is important to match the mounting and electrical details to the vehicle before ordering.

Key dimensions on this unit include a 119mm mount centres A measurement, 76mm flange diameter, 11mm mount hole diameter, and a 42mm pinion at rest. The pinion diameter is 27mm, and the unit weighs 3.0kg. These measurements are useful when comparing against the original starter already fitted to the vehicle.

This starter is specified as suitable for Bosch applications and is marked dry clutch. OEX backs the product with a 3 year passenger warranty and 1 year commercial warranty, which gives buyers a clear warranty position for private or commercial use.

For 1.1kW applications, the stated overall length is 213mm. A 1.7kW version is also referenced separately as BXS4020 with a 243mm overall length, so the part number and power rating should be checked carefully before purchase.

Key Features

• 12V new starter motor
• 10 tooth pinion
• CCW rotation
• Bosch style application
• 2 hole starter mount
• 1.1kW power rating

Specifications

• Voltage: 12V
• Power rating: 1.1kW
• Rotation: CCW
• Number of teeth: 10
• Overall length: 213mm
• Mount centres A: 119mm
• Flange diameter: 76mm
• Mount hole diameter: 11mm

Fitment guidance

• Fitment information includes Audi A3 and Audi TT applications.
• Fitment information includes Skoda Octavia applications.
• Fitment information includes Volkswagen EOS, Golf, Jetta, and Passat applications.
• Model year references shown in the fitment data include Audi A3 2004 to 2013, Skoda Octavia 2005 to 2013, and Volkswagen EOS 2007 to 2015.
• Because exact engine and transmission matching is not listed here, confirm the part number, mounting dimensions, tooth count, rotation, and original starter configuration before ordering.

Application and Buying Notes

The most reliable match point for this starter is the part number BXS0164, along with the 12V electrical setup, 10 tooth pinion, and CCW rotation. It is a Bosch style unit with a 2 hole mount and 119mm mount centres A, so the physical fit needs to line up with the starter already fitted to the vehicle.

The 1.1kW rating and 213mm overall length are important because a different version is referenced for 1.7kW use under part number BXS4020, which has a 243mm overall length. If the original starter differs in length, power rating, or mount geometry, do not assume interchangeability.

For installation checks, compare the 76mm flange diameter, 11mm mount hole diameter, 42mm pinion at rest, and 27mm pinion diameter against the removed unit. These measurements help confirm whether the starter will physically locate correctly and engage the ring gear as intended.

The product is listed as suitable for Bosch unit make and as a dry clutch starter. That makes the original application details especially important when the vehicle has had previous repairs, since non-original parts or mixed assemblies can change the fitment picture.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0164 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 119mm, Number of Teeth 10, Pinion at Rest 42mm, Power Rating 1.1kW, Suits Unit Make Bosch, Note 1.1Kw Unit has 213mm overall length, for 1.7Kw version use BXS4020 (243mm overall length), Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.0kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0164, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 11, Overall Length 213mm, Pinion Diameter 27mm, Rotation CCW.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0164 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0164, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 2004, AUDI A3 2005, AUDI A3 2006, SKODA OCTAVIA, SKODA OCTAVIA 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number BXS0164, 12V, 10 tooth, CCW rotation, 2 hole mount, and the listed dimensions against the vehicle’s original starter and application details before buying.

FAQ

What type of starter motor is this?

It is a new OEX starter motor, listed as a 12V unit with 10 teeth, CCW rotation, and Bosch style application.

What is the part number?

The part number is BXS0164.

What voltage and power rating does it have?

It is a 12V starter motor with a 1.1kW power rating.

What mounting details are listed?

The unit has a 2 hole starter mount, 119mm mount centres A, a 76mm flange diameter, and 11mm mount hole diameter.

Is this a new or remanufactured part?

It is listed as new.

What warranty is provided?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
