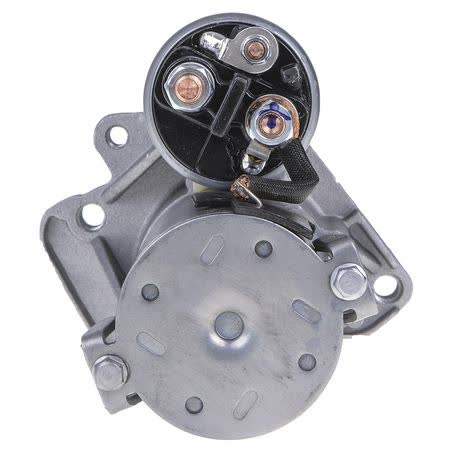

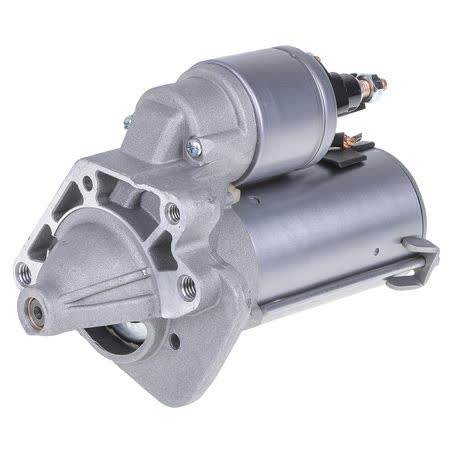

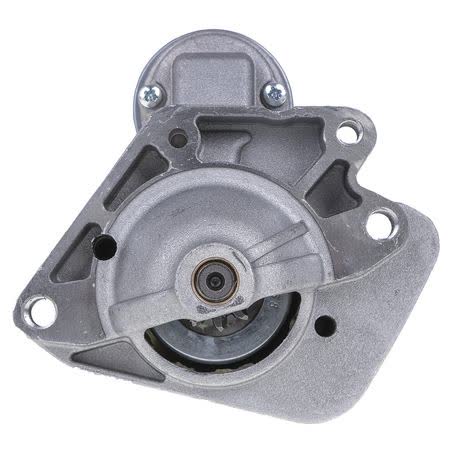

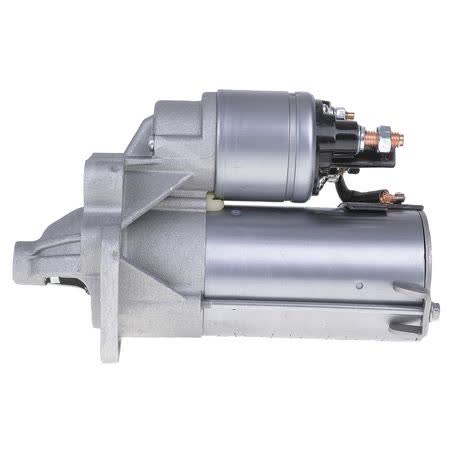

OEX Starter Motor 12V 10 Tooth CW Valeo Style VXS924

The OEX Starter Motor VXS924 is a new 12V starter motor with 10 teeth, clockwise rotation, and a 1.4kW power rating. It is described as a Valeo style unit and uses a 3 hole starter mount, which makes the mounting pattern and application details important to confirm before purchase.

Key physical dimensions include mount centres A at 105mm, mount centres C at 106.5mm, mount centres B at 29.5mm, a 63mm flange diameter, a 35mm nose cone length, and an overall length of 196mm. The pinion diameter is 28mm, the mount hole diameter is M10x1.5, and pinion at rest is listed as 0.7mm.

This starter motor is listed for Mitsubishi unit make, but the fitment data supplied also points to Renault applications, including Kangoo and Megane variants. Because starter motors must match the mounting pattern, rotation, tooth count, and dimensions as well as the vehicle application, it is worth checking the part number VXS924 against the existing unit before ordering.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• 1.4kW power rating
• 3 hole starter mount
• New unit

Specifications

• Part number: VXS924
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.4kW
• Starter mount type: 3 hole

Fitment guidance

• Renault Kangoo
• Renault Megane
• Renault Megane CC

Application and Buying Notes

When checking this starter motor, the most important points are the part number VXS924, the 12V electrical system, 10-tooth pinion, clockwise rotation, and the 3 hole mounting arrangement. Those details need to line up with the vehicle and the removed starter, particularly where the original unit is being replaced by visual match rather than by VIN lookup alone.

The listed dimensions are also practical checks: mount centres A 105mm, B 29.5mm, and C 106.5mm, plus the 63mm flange diameter and 196mm overall length. A starter can look similar but still be wrong if the nose cone length of 35mm, the 28mm pinion diameter, or the M10x1.5 mounting holes do not match the existing setup.

The product is described as a Valeo style starter motor and as a new unit. It also carries a 3 year passenger and 1 year commercial warranty, which is useful context, but warranty does not confirm fitment. The safest approach is to compare the old starter side by side, confirm the tooth count and rotation, and make sure the mounting pattern and dimensions match before installation.

Fitment data supplied with this item includes Renault Kangoo, Renault Megane, and Renault Megane CC references. That is helpful as a starting point, but the same model range can use different starter variants, so the part number and physical measurements should still be checked carefully against the vehicle and existing unit.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. That speaks to the manufacturing background, but the practical buying decision still comes down to matching the starter type, mounting points, and electrical specification to the vehicle on the bench or in the vehicle.

If you are replacing a failed starter, avoid assuming that the old unit and this one are interchangeable just because the bolt pattern appears close. Starter motors depend on correct engagement depth, rotation, tooth count, and flange sizing, so a few millimetres can matter. Confirm the application details first, especially if the vehicle has been modified or if there is any uncertainty about the previous repair history.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS924 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Mount Centres C 106.5mm, Nose Cone Length 35mm, Overall Length 196mm, Pinion Diameter 28mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. VXS924, Brand OEX, Description OEX Starter Motor 12V 10Th CW Valeo Style, Flange Diameter 63mm, Mount Centres B 29.5mm, Mount Hole Diameter M10x1.5, Number of Teeth 10.

OEX Starter Motor 12V 10Th CW Valeo Style. Part number VXS924 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS924, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm compatibility using part number VXS924, the 12V specification, 10-tooth clockwise configuration, 3 hole mount, and the recorded dimensions before ordering. Fitment references include Renault Kangoo, Renault Megane, and Renault Megane CC, but final suitability should always be checked against the vehicle application and the removed starter motor.

FAQ

What is the part number for this starter motor?

The part number is VXS924.

What voltage and rotation does this starter motor have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 10 teeth.

What type of mounting does it use?

It uses a 3 hole starter mount, with mount centres A at 105mm, B at 29.5mm, and C at 106.5mm.

Which vehicles are listed in the fitment data?

The supplied fitment references include Renault Kangoo, Renault Megane, and Renault Megane CC.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
