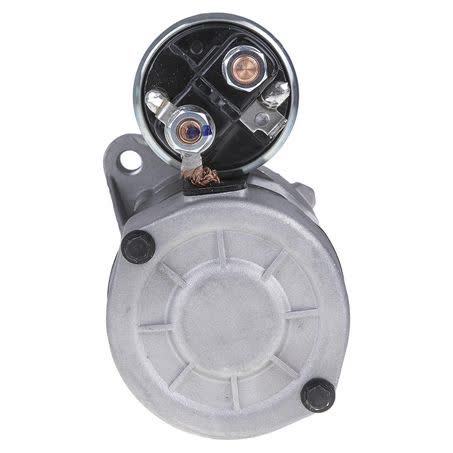

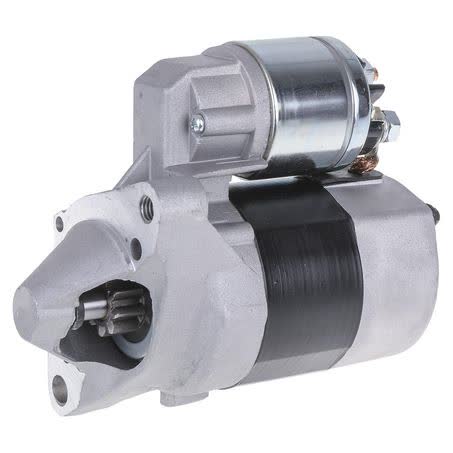

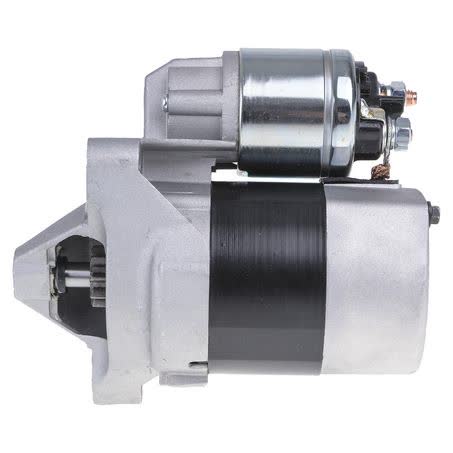

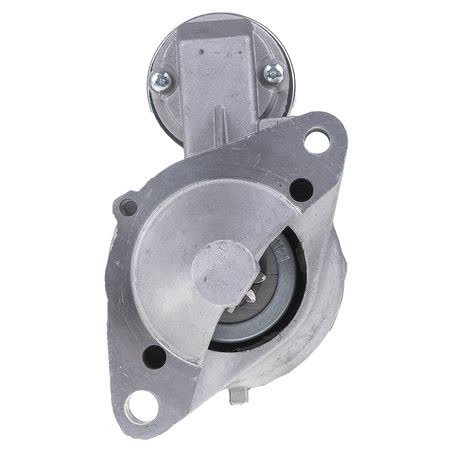

OEX Starter Motor 12V 9 Tooth CW Valeo Style VXS925

The OEX Starter Motor VXS925 is a new 12V starter motor in a 9 tooth, clockwise (CW) Valeo style configuration. It is rated at 0.85kW and uses a 2 hole starter mount, with an M10x1.5 / 11 mount hole diameter and 105mm mount centre to centre measurement.

Key dimensions to check before ordering include a 62.5mm flange diameter, 32mm nose cone length, 165mm overall length, and 26mm pinion diameter. The pinion at rest is listed at 0.8mm, and the unit weighs 3.08kg.

This part is identified as OEX part number VXS925 and is listed as suitable for Valeo unit make applications. It is supplied as a new rotating electrical component and sold individually as each. Warranty cover is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation (CW)
• 0.85kW power rating
• Valeo style / suits Valeo unit make
• New unit, not remanufactured

Specifications

• Brand: OEX
• Part No.: VXS925
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 0.85kW
• Starter mount type: 2 hole

Application and Buying Notes

Before ordering, compare the part number VXS925 with the starter already fitted to the vehicle, as that remains the most reliable check when the vehicle listing is not provided. The important matching points here are the 12V system, 9 tooth pinion, clockwise rotation, and Valeo style application.

Physical dimensions matter on starters, especially where clearance and mounting are tight. Check the 2 hole mount, 105mm mount centre to centre, 62.5mm flange diameter, 32mm nose cone length, and 165mm overall length against the original unit before purchase.

The listed 0.85kW power rating and 26mm pinion diameter should also be matched carefully to the existing starter specification. A starter can look similar externally but still differ in mounting, nose cone length, or gear engagement details, so do not rely on appearance alone.

This unit is listed as new and dry clutch type, with a weight of 3.08kg. If you are replacing a Valeo style starter, confirm the original unit’s rotation, tooth count, mounting pattern, and pinion measurements so you can avoid delays or incorrect fitment.

The warranty listed for this part is 3 years for passenger use and 1 year for commercial use. As with any electrical replacement, correct identification and installation are important, so match the application details before fitting the starter motor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS925 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5 / 11, Number of Teeth 9, Pinion at Rest .8mm, Power Rating .85kW, Suits Unit Make Valeo, Mount Cnt to Cnt 105mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.08kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS925, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo Style, Flange Diameter 62.5mm, Nose Cone Length 32mm, Overall Length 165mm, Pinion Diameter 26mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Valeo Style. Part number VXS925 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS925, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment using the part number VXS925, the 12V / 9 tooth / CW specification, and the listed mounting and dimension details before purchase.

FAQ

What is the part number for this starter motor?

The listed part number is VXS925. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The voltage is listed as 12V. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed as 9 tooth. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is listed as clockwise (CW) rotation. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What type of mounting does it have?

It is listed as a 2 hole starter mount with an M10x1.5 / 11 mount hole diameter and 105mm mount centre to centre measurement. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is it new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number VXS925 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
