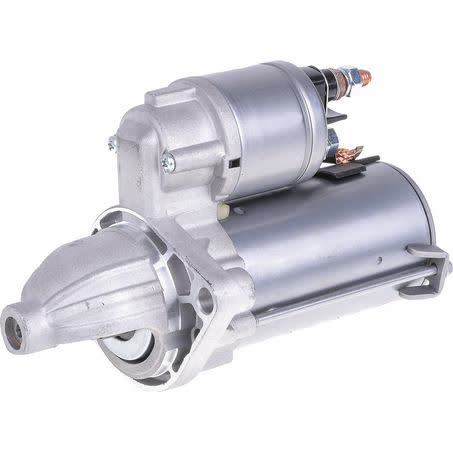

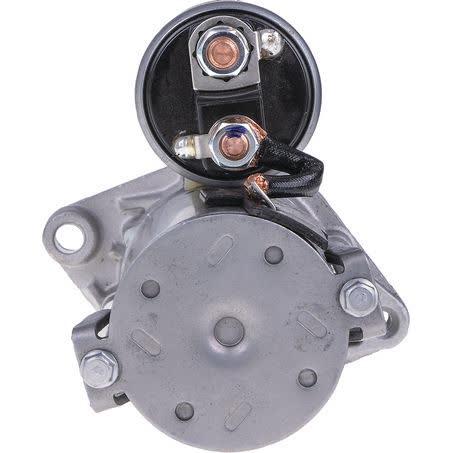

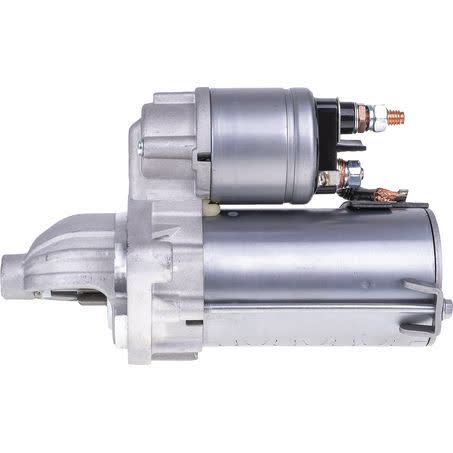

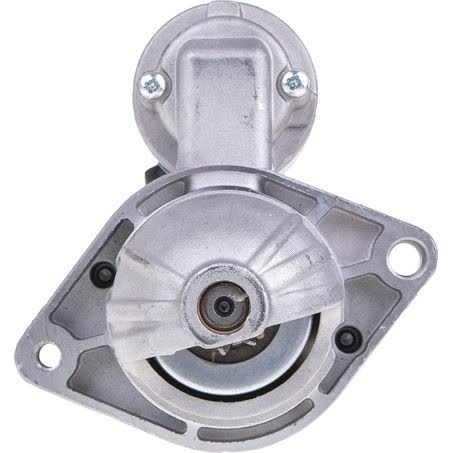

OEX Starter Motor 12V 9T CW Valeo Style VXS926

The OEX Starter Motor VXS926 is a new 12V starter motor in a 9 tooth, clockwise rotation configuration, built in a Valeo style format. It is listed with a 1.3kW power rating, 2 hole starter mount, and a dry clutch application, so it suits buyers comparing the mounting pattern and drive configuration as well as the electrical specification.

Key dimensions include 102mm mount centres A, a 58mm nose cone length, 200mm overall length, a 64mm flange diameter, and an M8x1.25 mount hole diameter. The pinion diameter is 26mm and the pinion at rest measurement is 23mm, which are important checks when matching the unit to an existing starter or replacement requirement.

This is an OEX brand rotating electrical product, supplied as each, with a stated warranty of 3 years for passenger use and 1 year for commercial use. OEX products are sourced from ISO certified factories and the brand is sourced from market leading original equipment manufacturers and aftermarket suppliers.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Valeo style unit
• 2 hole starter mount
• Dry clutch application

Specifications

• Part number: VXS926
• Brand: OEX
• Type: Starter motor
• Power rating: 1.3kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole

Fitment details supplied

• FIAT 500
• FIAT 500 2007
• FIAT 500 2008
• FIAT 500 2009
• FIAT PUNTO
• FIAT PUNTO 2006
• FIAT PUNTO 2007
• FIAT PUNTO 2008

Application and Buying Notes

Before ordering, compare the part number VXS926, the 12V electrical specification, and the 9 tooth clockwise layout with the starter you are removing. The mount type is 2 hole, the mount centres are 102mm, and the mount hole thread is M8x1.25, so those points should line up with the existing arrangement before you commit to the purchase.

The Valeo style design matters because it is intended for applications matching that unit make, and the listed fitment data points to FIAT 500 and FIAT PUNTO applications across the 2006 to 2009 range. Even so, matching a starter motor still comes down to confirming the physical dimensions, pinion size, and rotation against the vehicle already fitted.

The 1.3kW power rating, 26mm pinion diameter, 23mm pinion at rest measurement, and 200mm overall length are useful checks when comparing against the removed starter. If the old unit is damaged or unreadable, the safest approach is to verify every available measurement and the part number before fitting.

Warranty coverage is stated as 3 years for passenger use and 1 year for commercial use. That is helpful for purchase planning, but it does not replace the need to confirm the application, since starter motors can differ by mount pattern, pinion position, and unit make even within the same vehicle family.

Because this is a new OEX starter motor, you can expect a direct replacement part format rather than a remanufactured assembly. The stated weight is 2.62kg, which may also assist when comparing the new unit to the removed starter for a basic sanity check on size and construction.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS926 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 102mm, Nose Cone Length 58mm, Overall Length 200mm, Pinion Diameter 26mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS926, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo Style, Flange Diameter 64mm, Mount Hole Diameter M8x1.25, Number of Teeth 9, Pinion at Rest 23mm, Power Rating 1.3kW.

OEX Starter Motor 12V 9Th CW Valeo Style. Part number VXS926 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS926, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number VXS926, the 12V 9 tooth clockwise specification, the 2 hole mount, and the listed dimensions against the vehicle and the removed starter before purchase.

FAQ

What is the part number for this starter motor?

The part number is VXS926. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.

What rotation does it have?

It is clockwise rotation, noted as CW. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 9 teeth. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS926 is the main reference point. Listed voltage is 12. Published fitment references include FIAT 500, FIAT 500 2007, FIAT 500 2008. These details should still be checked against the original unit before ordering.
