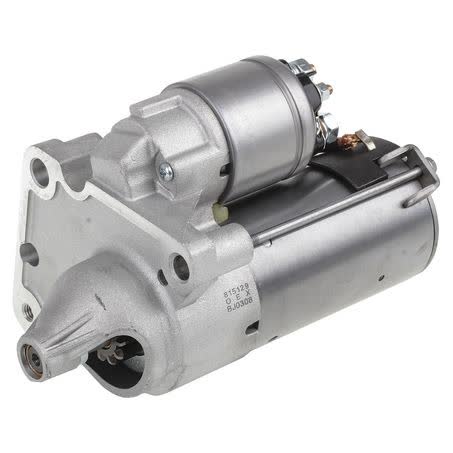

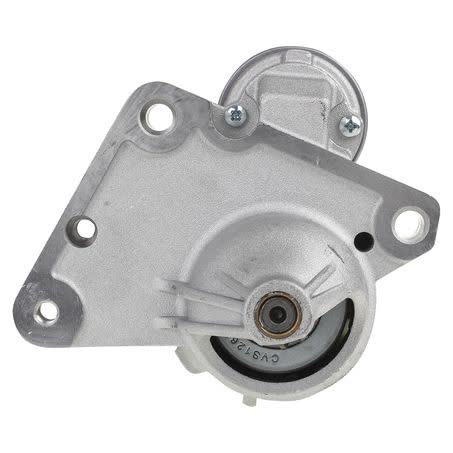

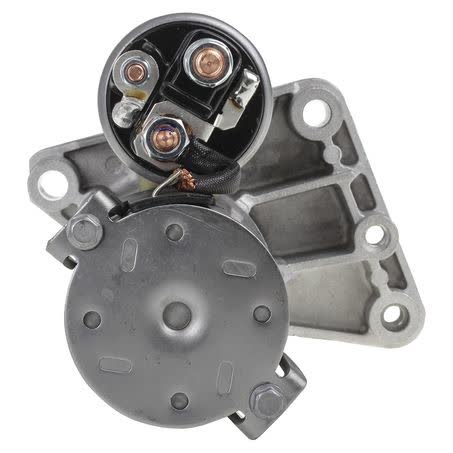

OEX Starter Motor 12V 11 Tooth CW Valeo Style VXS928

The OEX Starter Motor VXS928 is a 12V starter motor in 11 tooth, clockwise rotation format, built in a Valeo style layout. It is listed as a new unit and suits Valeo applications, with a 4 hole starter mount and a 1.5kW power rating.

Key physical details are clearly defined for checking before purchase: overall length is 202mm, nose cone length is 48mm, pinion diameter is 29mm, and pinion at rest is 15mm. Mount centres are shown as A 46mm, B 29mm, C 124mm and D 90mm, with an M8x1.25 / 9 mount hole diameter.

This starter motor weighs 2.74kg and is specified for dry clutch use. It is backed by a 3 year passenger and 1 year commercial warranty, which gives a useful guide for the intended use case, but the correct application still needs to be confirmed against the part number and mounting details.

Fitment references supplied with this unit include Citroën C4, Citroën DS4, Peugeot 207, Peugeot 207 SW, Peugeot 3008, Peugeot 308, Peugeot 308 SW and Peugeot 508 applications. These names should be checked carefully against the exact engine and build details on the vehicle before ordering.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Valeo style unit
• Suits Valeo applications
• New unit

Specifications

• Type: Starter motor
• Brand: OEX
• Part No.: VXS928
• Voltage: 12V
• Power rating: 1.5kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 4 hole

Known fitment applications supplied

• Citroën C4
• Citroën DS4
• Peugeot 207
• Peugeot 207 SW
• Peugeot 3008
• Peugeot 308
• Peugeot 308 SW
• Peugeot 508

Application and Buying Notes

For a starter motor, the important checks are not just the voltage and tooth count, but also the mounting pattern and nose length. This unit is 12V, 11 tooth, clockwise rotation, and uses a 4 hole mount, so the matching starter needs to agree on those points as well as the 202mm overall length and 48mm nose cone length.

The listed mount centres of 46mm, 29mm, 124mm and 90mm, plus the M8x1.25 / 9 mount hole diameter, are practical comparison points when replacing an existing starter. If the old unit differs in any of those measurements, the fit may not be correct even if the vehicle model name appears similar.

This starter is described as a Valeo style unit and suits Valeo applications. That makes the part number VXS928 especially important when checking compatibility, because the same model range can use different starters depending on engine, transmission or build variation.

The dry clutch note should also be considered during selection. While this is a good guide to the intended application, the safest approach is to match the old starter by part number, tooth count, rotation, pinion diameter and mounting layout before fitting.

The supplied fitment references point to Citroën C4 and DS4, plus Peugeot 207, 207 SW, 3008, 308, 308 SW and 508 applications. Those names are useful starting points only; the exact engine and production details still need to line up with the starter specifications shown here.

For workshop or trade use, the 1.5kW rating and 2.74kg weight provide further comparison points when confirming the replacement. If the existing part is damaged or missing, it is best to compare the mounting face, pinion measurements and rotation direction against the vehicle’s original starter before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS928 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres B 29mm, Mount Centres D 90mm, Nose Cone Length 48mm, Overall Length 202mm, Pinion Diameter 29mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 4 Hole, Weight 2.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS928, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style, Mount Centres A 46mm, Mount Centres C 124mm, Mount Hole Diameter M8x1.25 / 9, Number of Teeth 11.

OEX Starter Motor 12V 11Th CW Valeo Style. Part number VXS928 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS928, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN C4, CITROEN C4 2009, CITROEN C4 2010, CITROEN C4 2011, PEUGEOT 207, PEUGEOT 207 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number VXS928, 12V voltage, 11 tooth count, clockwise rotation, 4 hole mount layout, and the listed mounting and pinion measurements against the original starter and the vehicle application.

FAQ

What is the part number for this starter motor?

The part number listed is VXS928.

What voltage does this starter motor use?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What rotation direction is listed?

The starter motor is listed as clockwise rotation, shown as CW.

Which unit make does it suit?

It is listed as suitable for Valeo applications.

What warranty is supplied?

The warranty listed is 3 year passenger and 1 year commercial.
