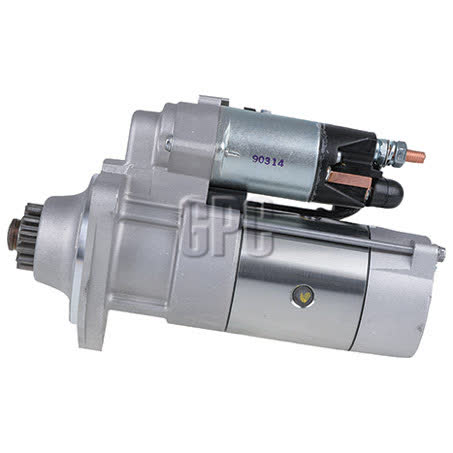

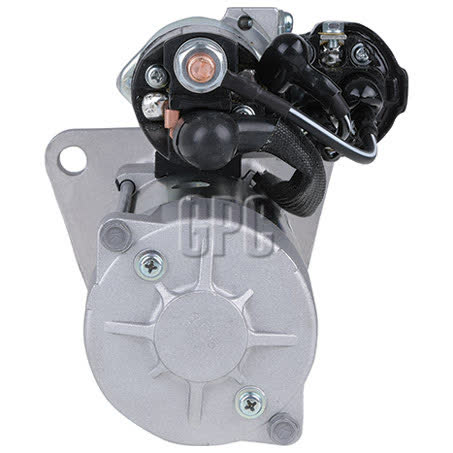

OEX Starter Motor 24V 13 Tooth CW Valeo VXS930

The OEX Starter Motor VXS930 is a 24V replacement starter motor with 13 teeth, clockwise rotation, and a 6kW power rating. It is listed as a new unit with a dry clutch setup and an offset mount, and it suits Valeo applications.

Key mounting details are supplied for checking before purchase: 3-hole starter mount type, mount centres A 135mm, mount centres B 110mm, mount centres C 110mm, flange diameter 105mm, and mount hole diameter 13mm. Overall length is 236mm, with a 46mm pinion diameter and 48mm pinion at rest.

This starter motor is identified under part number VXS930 and is supplied by OEX, with the product description stating OEX Starter Motor 24V 13Th CW Valeo. The unit is backed by a one year warranty and is sold each.

The listed fitment includes several DAEWOO INDUSTRIAL and DOOSAN/DAEWOO applications, including DH200LC, DH200W, MEGA 250-III, MEGA 250-V, SOLAR 170W-III, SOLAR 200-III, SOLAR 250LC-V, SOLAR 290LC-V, and SOLAR 2900LL variants. Always confirm the application against the part number and mounting measurements before ordering.

Key Features

• 24V starter motor
• 13 tooth pinion
• Clockwise rotation
• 6kW power rating
• New unit
• Dry clutch

Specifications

• Brand: OEX
• Part number: VXS930
• Unit of measure: Each
• Type: Starter motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 13
• Power rating: 6kW

Verified fitment applications

• DAEWOO INDUSTRIAL DH200LC
• DAEWOO INDUSTRIAL DH200W
• DAEWOO INDUSTRIAL MEGA 250-III
• DAEWOO INDUSTRIAL MEGA 250-V
• DAEWOO INDUSTRIAL SOLAR 170W-III
• DAEWOO INDUSTRIAL SOLAR 200-III
• DAEWOO INDUSTRIAL SOLAR 250LC-V
• DAEWOO INDUSTRIAL SOLAR 290LC-V

Application and Buying Notes

Before ordering, match the part number VXS930, the 24V system requirement, and the 13 tooth clockwise configuration to the existing starter. Those three details are the fastest way to rule out an obvious mismatch when replacing a Valeo-style unit.

The mounting pattern matters just as much as the electrical specification. Check the 3-hole starter mount, mount centres A 135mm, B 110mm, C 110mm, flange diameter 105mm, and 13mm mount hole diameter against the removed unit, especially because this starter is noted as an offset mount.

The physical dimensions should also be confirmed on the machine. The overall length is 236mm, the pinion diameter is 46mm, and the pinion at rest is 48mm. These measurements help verify clearance and engagement where access is tight or where the original unit has a similar-looking but different body shape.

The listed fitment covers a range of DAEWOO INDUSTRIAL and DOOSAN/DAEWOO machines, but application names alone are not enough for final confirmation. Serial breaks, factory options, and previous repairs can change what is fitted, so compare the removed unit, wiring position, and mounting layout before buying.

Because this is a new starter motor with a one year warranty, it is best installed only after the application has been confirmed. If the old unit is available, use it to check rotation, tooth count, mount type, and dimensions against the figures listed here rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS930 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 135mm, Mount Centres C 110mm, Number of Teeth 13, Pinion at Rest 48mm, Power Rating 6kW, Suits Unit Make Valeo, Note Offset mount.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 1 ROTATING ELECTRICAL, Part No. VXS930, Brand OEX, Description OEX Starter Motor 24V 13Th CW Valeo, Flange Diameter 105mm, Mount Centres B 110mm, Mount Hole Diameter 13, Overall Length 236mm.

OEX Starter Motor 24V 13Th CW Valeo. Part number VXS930 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS930, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number VXS930, 24V voltage, 13 tooth clockwise rotation, Valeo suitability, and the listed mounting and dimension measurements against the existing starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is VXS930. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.

Is this starter motor 12V or 24V?

It is a 24V starter motor. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

The rotation is clockwise, listed as CW. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 13 teeth. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.

What vehicles or machines is it listed to suit?

Verified fitment includes DAEWOO INDUSTRIAL DH200LC, DH200W, MEGA 250-III, MEGA 250-V, SOLAR 170W-III, SOLAR 200-III, SOLAR 250LC-V, SOLAR 290LC-V, and DOOSAN/DAEWOO SOLAR 2900LL variants. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.

Does it come with a warranty?

Yes. The listed warranty is one year. For this listing, part number VXS930 is the main reference point. Listed voltage is 24. Published fitment references include DAEWOO INDUSTRIAL DH200LC, DAEWOO INDUSTRIAL DH200LC 1990, DAEWOO INDUSTRIAL DH200W. These details should still be checked against the original unit before ordering.
